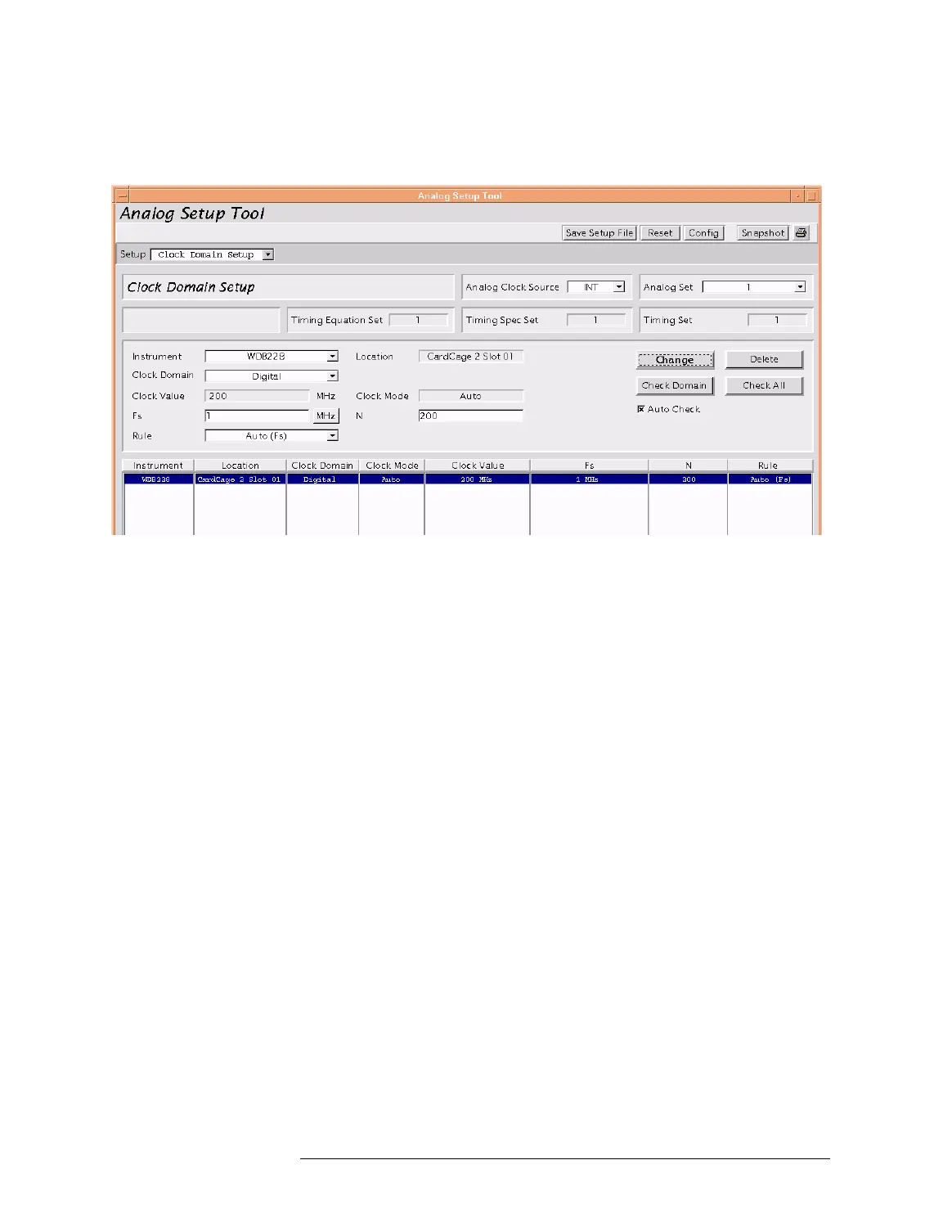

Final Digital Clock Domain Setup for the WDB (3)
The calculation of the Fs value is performed according to the
selected rule.
The following example of a desired Fs of 36MHz for the WDA
shows how the required divider N is calculated for the Auto (Fs)
rule
The range of valid N values depends on the physical
implementation of the divider of the analog module, and on the
valid Fs range of the module. This is also explained below.
