execute the sequencer program from this Sub Label on, instead
from the beginning.
The S
AMPLE FREQUENCY or SAMPLE PERIOD (these fields are
mutually dependent) will be filled in automatically when the
sample frequency for the WGA has been defined in the clock
domain setup.
If desired, you can enter a T
RIGGER DELAY, which means the
additional delay after the trigger pulse (there is always a minimum
delay which depends on the chosen analog module).
Creating a Sequencer Program
To create a new sequencer program:
1 Select the SEQUENCER PROGRAM: __DEFINE_NEW_PROGRAM__.

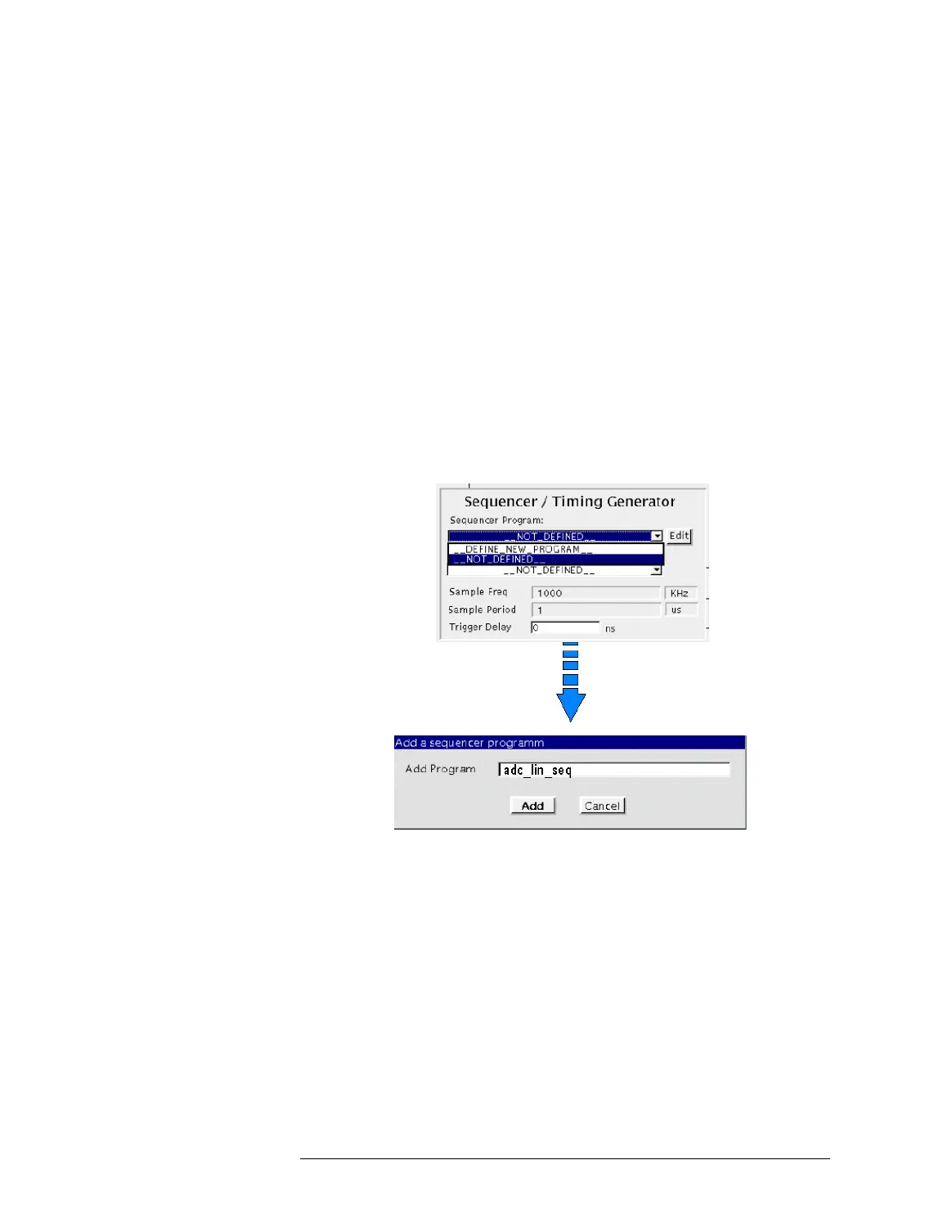

Creating a new Sequencer Program
2
Enter a program name and click ADD.
This brings you right to Sequencer Memory setup page.
