Agilent Technologies 93000 SOC Series User Manual

Lesson 2 – Setting Up the Waveform Generator
313
Viewing the Contents of a Waveform Label
This is a useful feature to check a waveform after the waveform
data has been downloaded with the Mixed-Signal Tool.
1 Highlight a command line.
2 Click the WAVE INFO button.

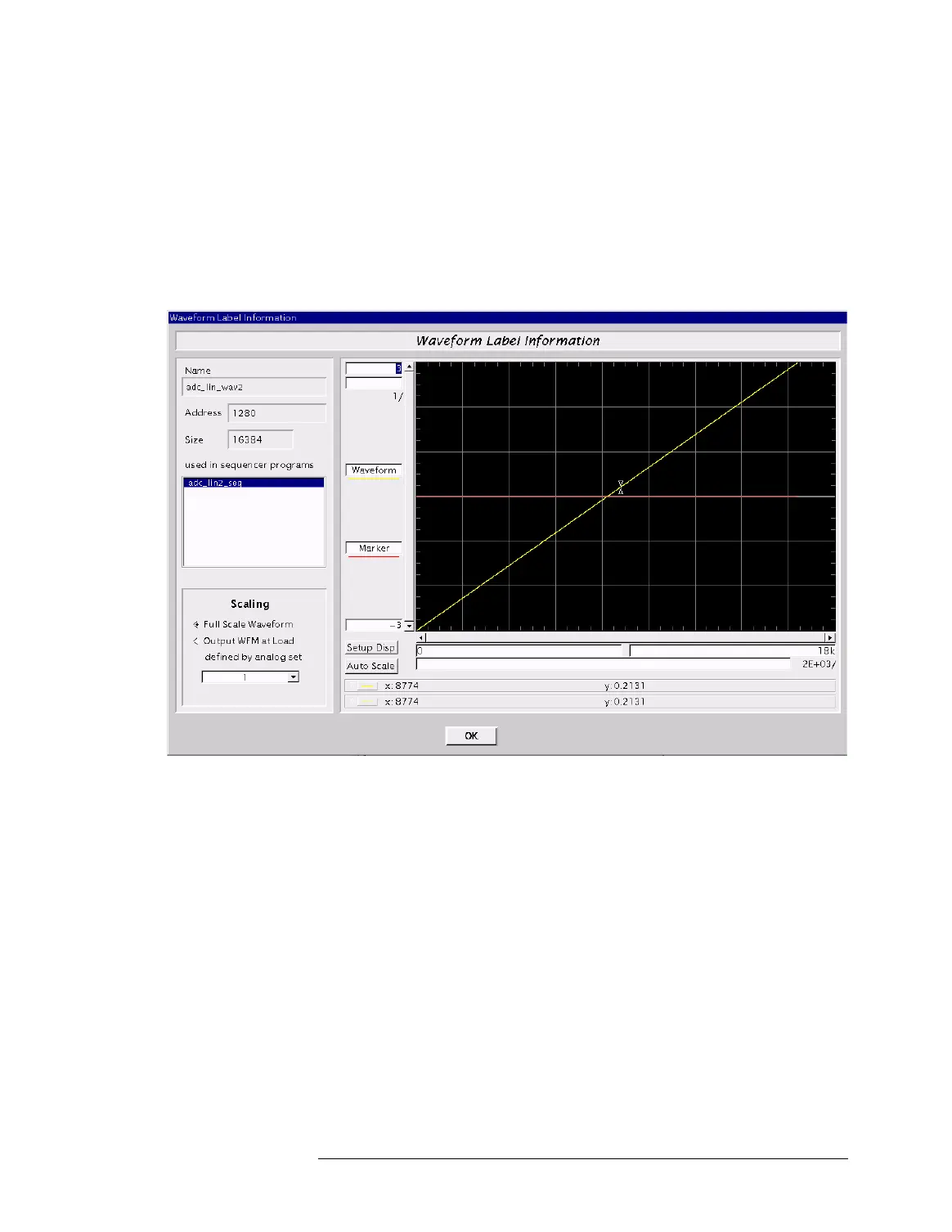

Analog Setup Tool – Waveform Information
The waveform display section of the window provides the same
scaling and navigating options as the Mixed-Signal Tool.
Sequence Program for Ultra High Speed AWG
The operation of the Ultra High Speed AWG is unique. The
different point from other AWGs is that this AWG automatically
starts the sequence program immediately when the hardware
module settings are downloaded to the AWG and activated. That is,
even if the trigger signal is not detected, the sequence program is
started from a sub-labeled sequence specified in the Sequencer/
Timing Generator sub-panel of the Hardware Settings page of the
Analog Setup Tool. And the AWG waits for the trigger signal after
halted the sub-labeled sequence execution.
