Lesson 2 – Analog Clock Domain Setup

388

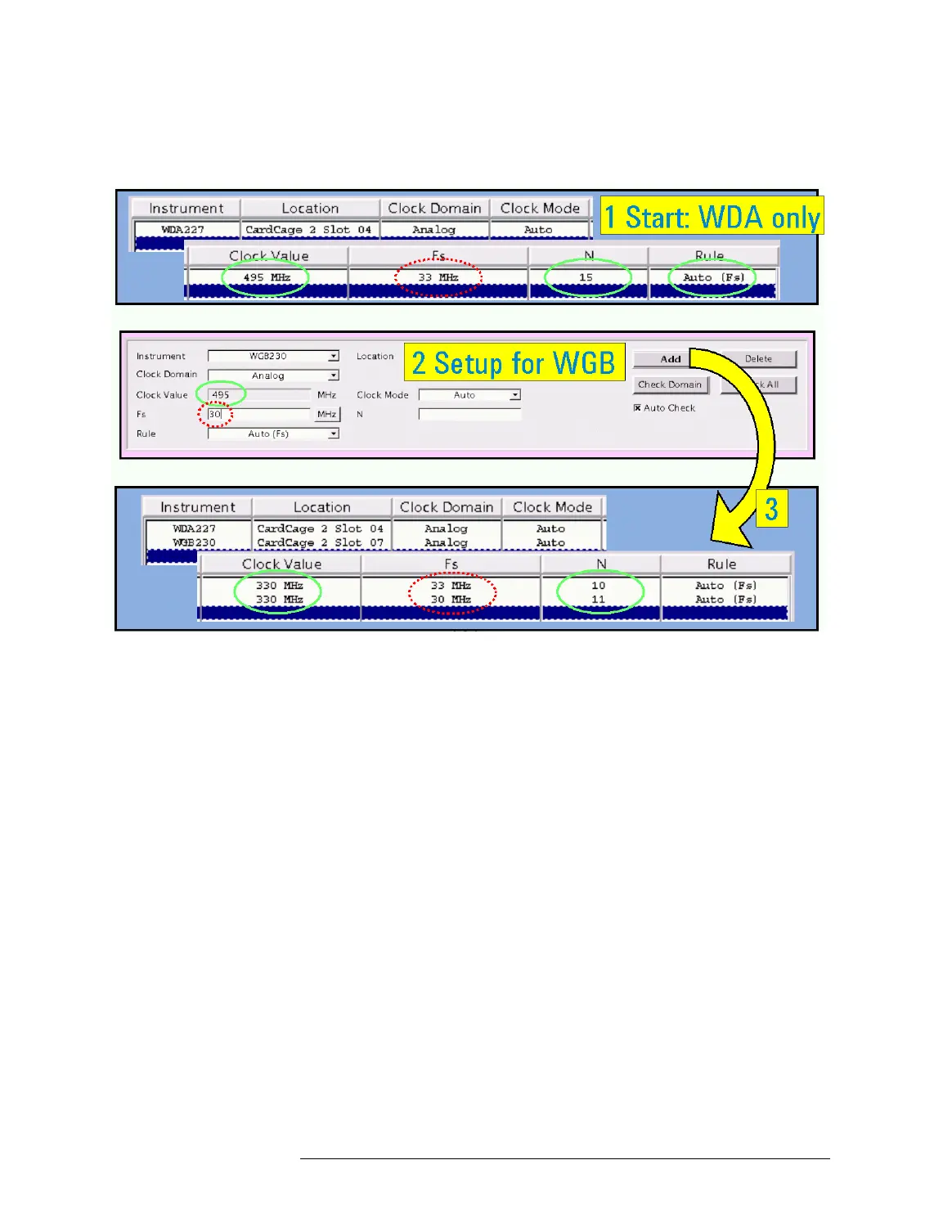

Example 1a: The desired Fs Values can be generated precisely

The next figure shows an example, where the desired Fs for the

WGB gets approximated.
