Lesson 2 – Analog Clock Domain Setup

389

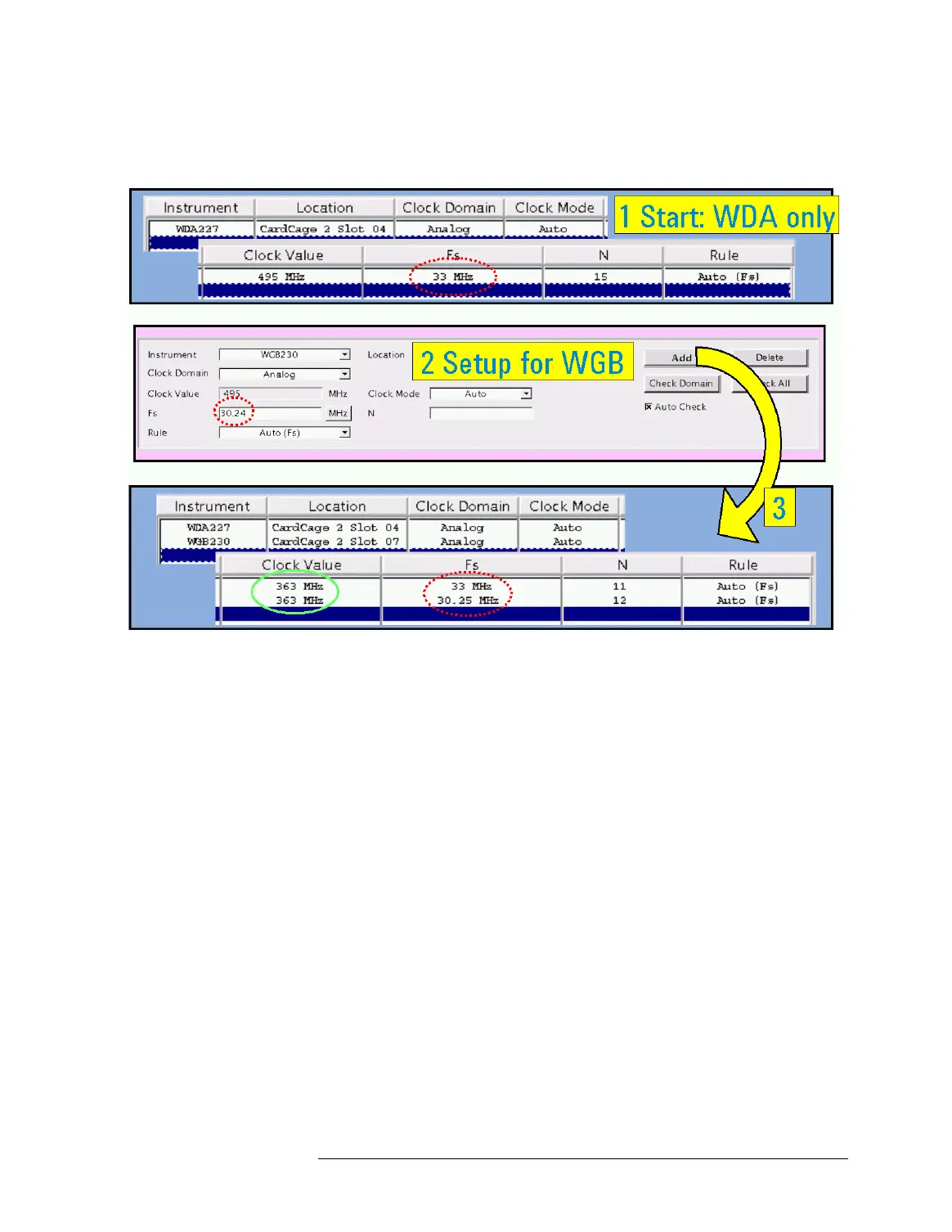

Example 1b: The Fs Value of the WGB gets approximated

The general algorithm for the calculation is to first accept the

direct changes of parameters that affect all modules in the domain.

Then, to find a combination of Clock Value and N values that

fulfills all modules’ rules best, with the highest Clock Value

possible.

If you want to force the Fs value of a module to be generated

precisely, you have to use the Fixed Fs Value rule. This is shown

below.
