Lesson 2 – TIA Setup
487
TIA Measurement Options
A measurement of the TIA always means that the time between
two specific input signal edges gets measured. If both are edges of
the same input channel, the measurement is called a single
channel measurement; if the time between edges of both input
channels gets measured, the measurement is called a dual channel
measurement.
NOTE When both channels are connected to the TIA, single channel
measurements will always be performed on channel 1.

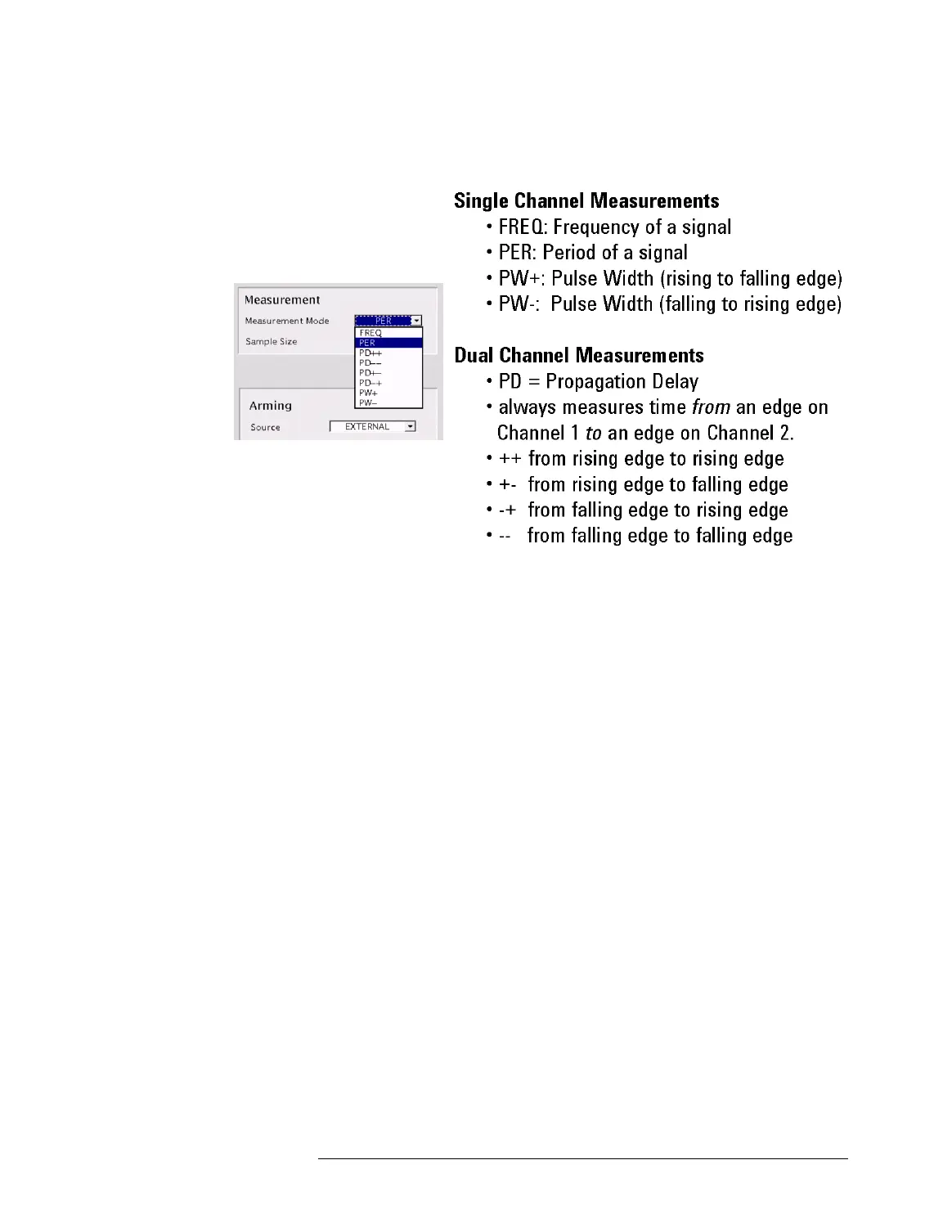

The following figure illustrates the various measurements.
