Agilent Technologies 93000 SOC Series User Manual

Lesson 2 – TIA Setup
486

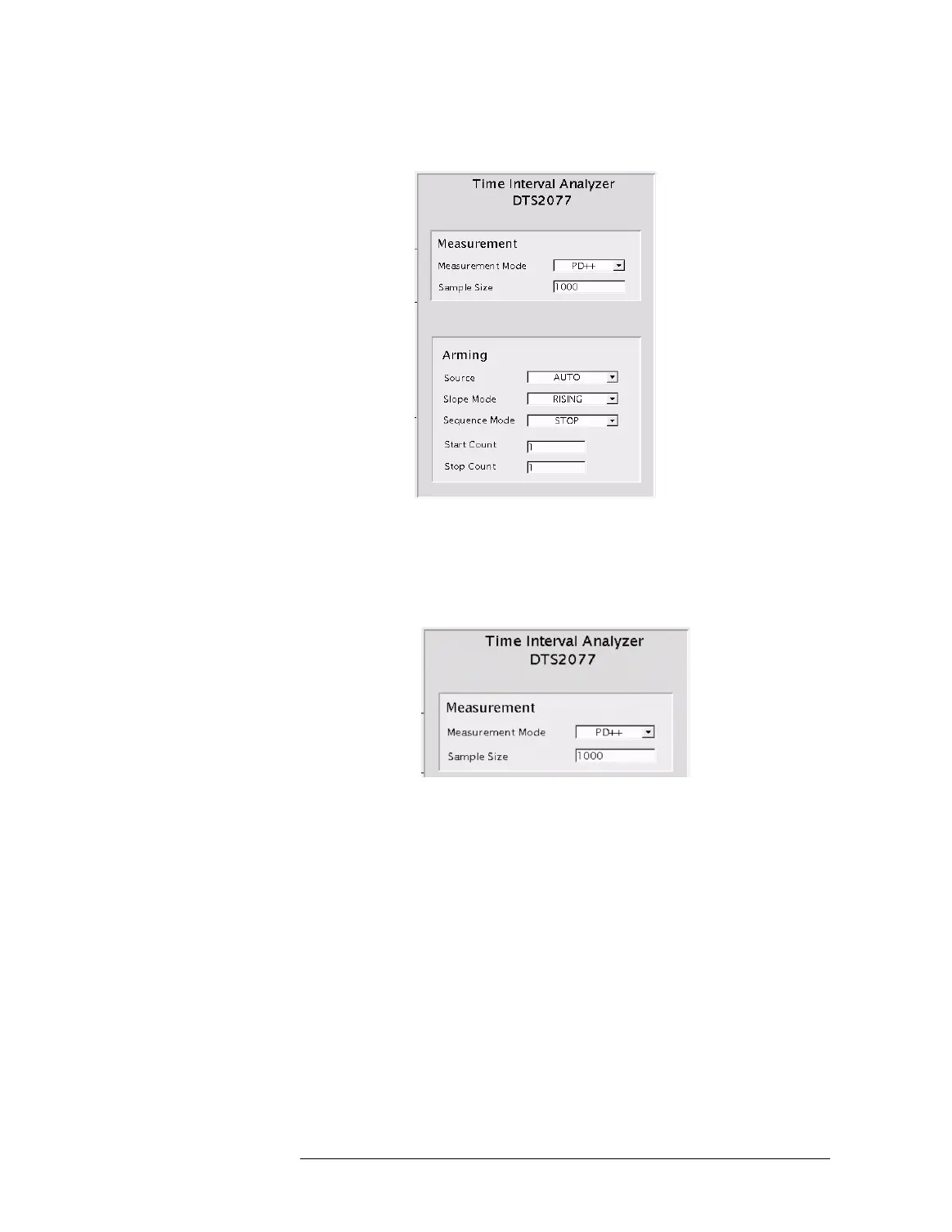

TIA Setup Area
Measurement Settings
TIA Measurement Setup Section
In the Measurement section, you can specify the type of
measurement (Measurement Mode) to be made, and the number of
repetitions for the selected measurement (Sample Size). From the
results of a repeated measurement, for example, the jitter can be
calculated. In the lab exercises, you will set up a test doing this.
You can select one of the eight different measurements the TIA can
perform from the drop-down list of the Measurement Mode field.
