Anatel A643a - Anatel A643a Alarms 107 of 220
RPS - June 2007 - Edition 12
Anatel Operator Manual
To access an Anatel A643a’s Alarm Setup parameters:
1) With the desired Analyzer selected in any View, press the Setup Key to display its
menu selections.
2) Use the Up and Down Keys to specify Sensor Setup.
3) Press Enter to display the Sensor Setup Menu.
4) Similarly specify and select Analysis Setup.
5) Specify and select More Setup.
6) Specify and select Alarm Setup to display its submenu.
The Cond Alarm parameter does not appear unless the display was set to both Conductv and
Uncomp (see “Display Units” on page 56).
7) Use the Down Key to select the Cond Alarm format for this Analyzer and press Enter
to toggle the check mark “on,” indicating that uncompensated conductivity alarm
monitoring has been enabled.
8) Press Esc repeatedly to exit this function and return to the normal display.
In the Auto TOC mode, the alarm limit is checked at the end of each analysis cycle. In the
Purge mode, the limit is checked every 15 seconds.

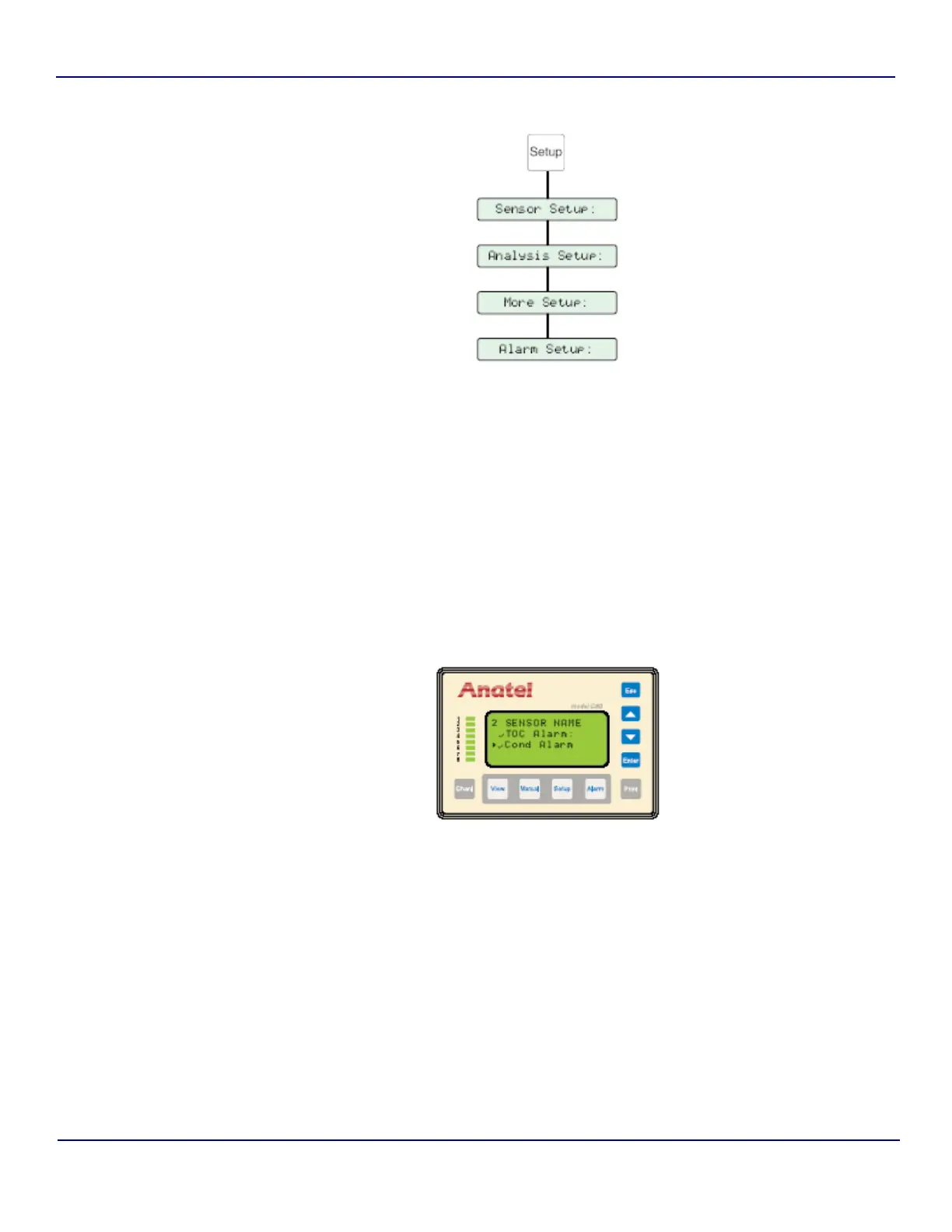

Fig 7-14 : Alarm Setup
Fig 7-15 : Alarm Setup Menu
