Anatel A643a - Specifications and Accessories 193 of 220
RPS - June 2007 - Edition 12
Anatel Operator Manual
B.1.1 Anatel A643a–S Analyzer
Note:
P/N FG1002701
The Anatel A643a–S is the basic component in the TOC Analysis System.

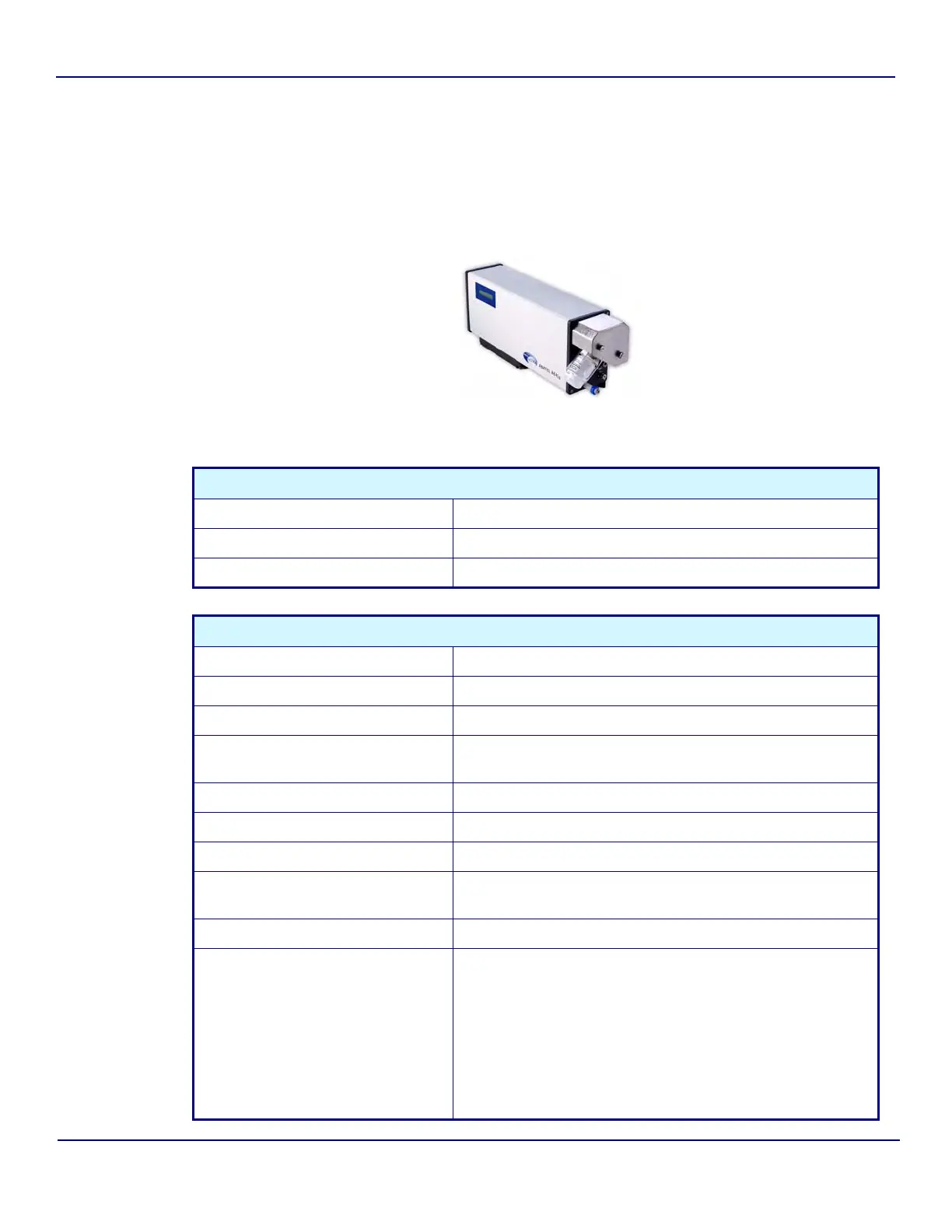

Fig B-1 : Anatel A643a–S TOC Analyzer
Display
Main: 1-line x 16-character Super-Twist LCD
Backlighting: Yellow LED
Character Height: 0.163”
Physical
Operating Temperature: 15 °C to 40 °C (59 °F to 104 °F)
Maximum Relative Humidity: 100% RH (non-condensing)
Maximum Altitude: 4,000 m (13,125 ft)
Size
(including sample vessel assembly):
193 mm H x 489 mm W x 119 mm D
(7.6” H x 19.25” W x 4.7” D)
Weight: 6.58 kg (14.5 lb)
Analysis Cell Volume: 0.4 mL
Power: 100 to 240 VAC ±10%, 50/60 Hz
Power Consumption: 2 Amps max. @ 120 VAC,
1 Amp max. @ 230 VAC
Fuse: 3 Amp, 250 VAC Fast-Blow
Power Cord:
100 to 120 VAC Main
208 to 230 VAC Main
Rating: 125 VAC, 10 Amp
Foil Shield 100%, Braid Shield 85%
Connectors: IEC 320–C13 and NEMA 5–15P
Rating: 250 VAC, 10 Amp
Foil Shield 100%, Braid Shield 85%
Connectors: IEC 320–C13 and CEE 7/7or CEI 23–16/VII
(or like, depending on country)

ANATEL A643a Specifications

General

Brand	ANATEL
Model	A643a
Category	Measuring Instruments
Language	English
