ANATEL A643a User Manual

136 of 220 Analog Outputs - Anatel A643a
RPS - June 2007 - Edition 12
Operator Manual Anatel
9) Press Esc twice to retain the Full-Scale Res/Cond setting and return to the DAC
Range Menu.
9.3.2.4 Temperature Output
Note:
Defaults: Zero-Scale – 5 °C
Full-Scale – 95 °C
The DAC Temp setting defines the upper and lower limits that are proportional to the DAC mA
Range setting. The analog signal is converted to a scaled temperature value for output.
To set the temperature output range:
1) With the DAC Range Menu displayed, use the Up and Down Keys to specify DAC
Zero-Scale.
2) Press Enter to display its menu selections.
3) Specify Temp DAC and press Enter to display its zero-scale parameter screen.
4) Use the Up and Down Keys to scroll in one degree increments until the desired value
is displayed.
1 SENSOR NAME
Full-Scale Cond
15 uS/cm U
S/T to change

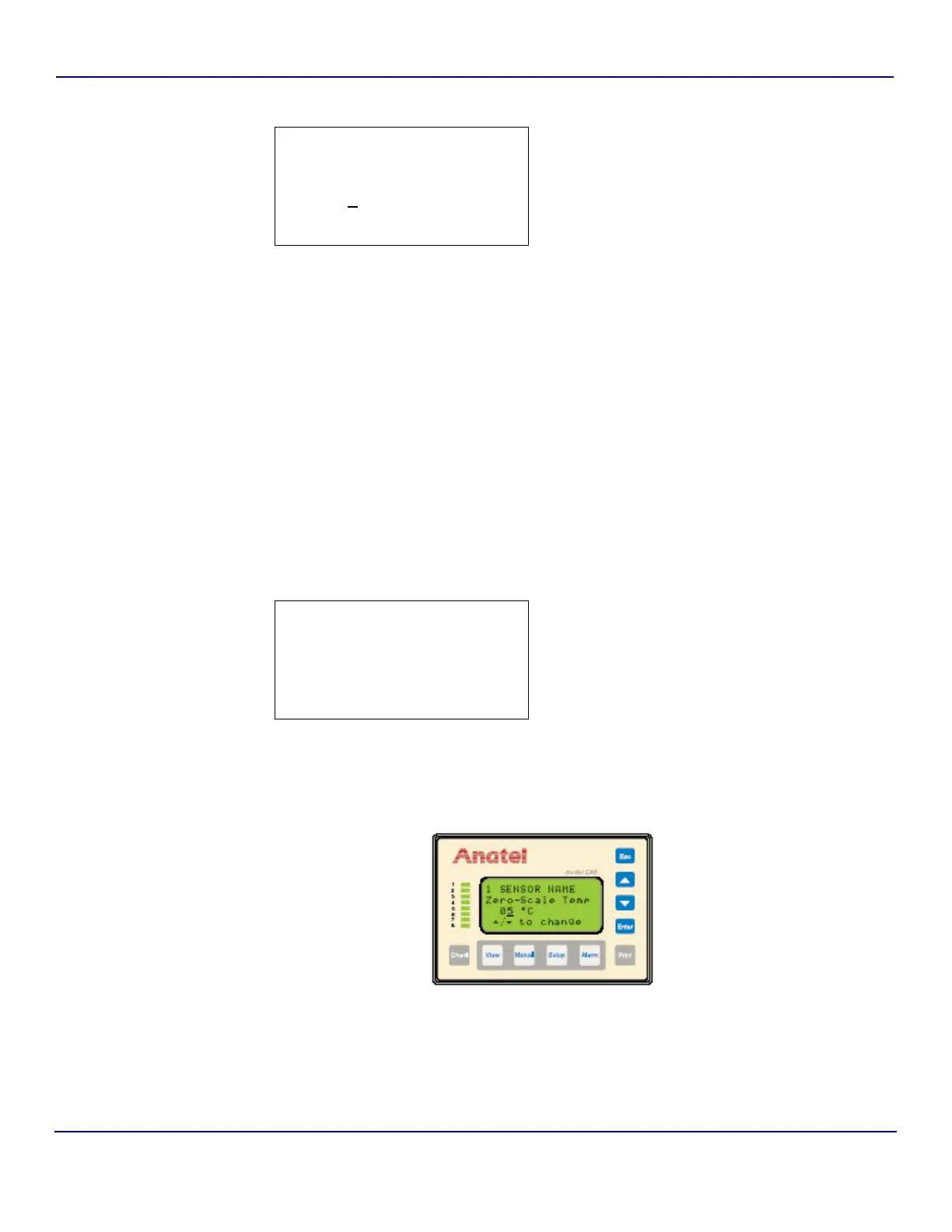

Fig 9-30 : Full-Scale TOC Data
1 SENSOR NAME
DAC mA Range:
X
DAC Zero-Scale:
DAC Full-Scale:
Fig 9-31 : DAC Zero-Scale Menu
Fig 9-32 : Zero-Scale Temperature Screen
