4 C80 Controller Setup
4.1 General Information
The C80 Controller provides the user interface with the various Analyzers, furnishing data
displays and access to individual Anatel A643a parameters. The Controller is a stand-alone
unit or an integral component of the Anatel A643a–P Analyzer.
User interaction with the C80 Controller is through a consistent interface. Its 4-line by
16-character display affords full functionality for interacting with its associated Anatel A643a
Analyzers, allowing the user to manage their operation individually.
4.2 C80 Controller
The C80 Controller display simultaneously provides data from multiple Analyzers. The
Controller’s faceplate also contains a set of Channel ID LEDs which reflect the operational
status of each connected Analyzer and ten membrane keys for user interaction.
The C80 Controller’s Edit Keys perform the following operations:

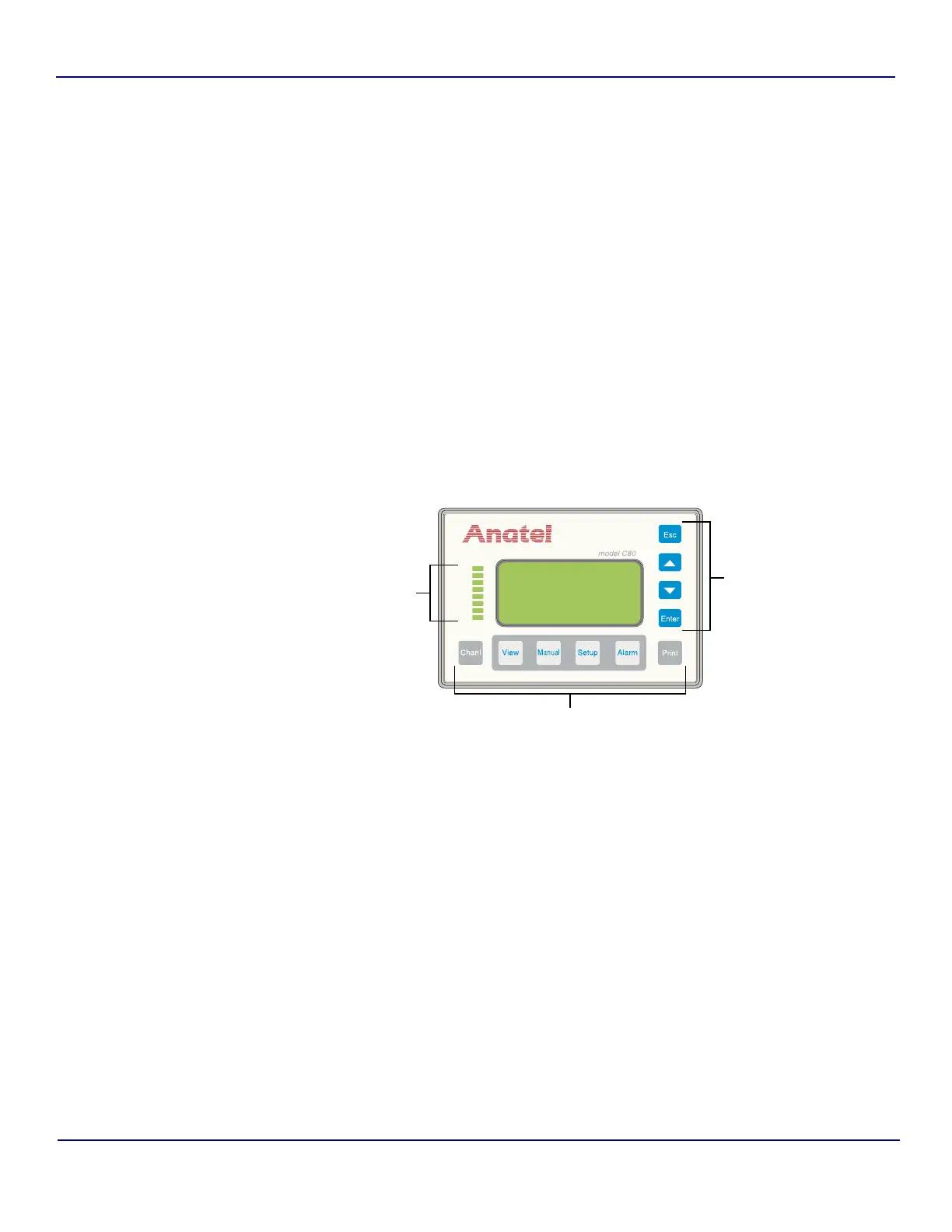

Fig 4-1 : C80 Controller Display
Esc exits the current screen or mode and returns to the previous one—
any changes are saved.
Up and Down scrolls to specify menu items and parameter values for selection.
The “Up” arrow key moves the cursor up or left within the display and
increments numbers while the “Down” arrow moves the cursor down
or right and decrements numbers.
Enter chooses the indicated menu selection, saves a modified value,
accesses the Edit Mode or moves the Edit Cursor to the next
selection.
1
2
3
4
5
6
7
8
Channel ID
LEDs
Display
Edit
Keys
Function Keys
To Next Page
