194 of 220 Specifications and Accessories - Anatel A643a
RPS - June 2007 - Edition 12
Operator Manual Anatel
B.1.2 Anatel A643a–P Analyzer
P/N FG1002801
The Anatel A643a–P combines a C80 Controller, handle, feet, the standard Analyzer and a
40-column thermal printer to provide a complete and integrated portable TOC analysis system.
I/O Connections
Analog: Opto-isolated 4-20 mA output
Non-isolated 12 VDC output @ 1/2 Amp max.
Digital I/O: Two opto-isolated inputs
Two opto-isolated outputs
Serial Interfaces: RS485 opto-isolated Network
RS232 Data Acquisition
RS232 Printer
RS232 Diagnostics

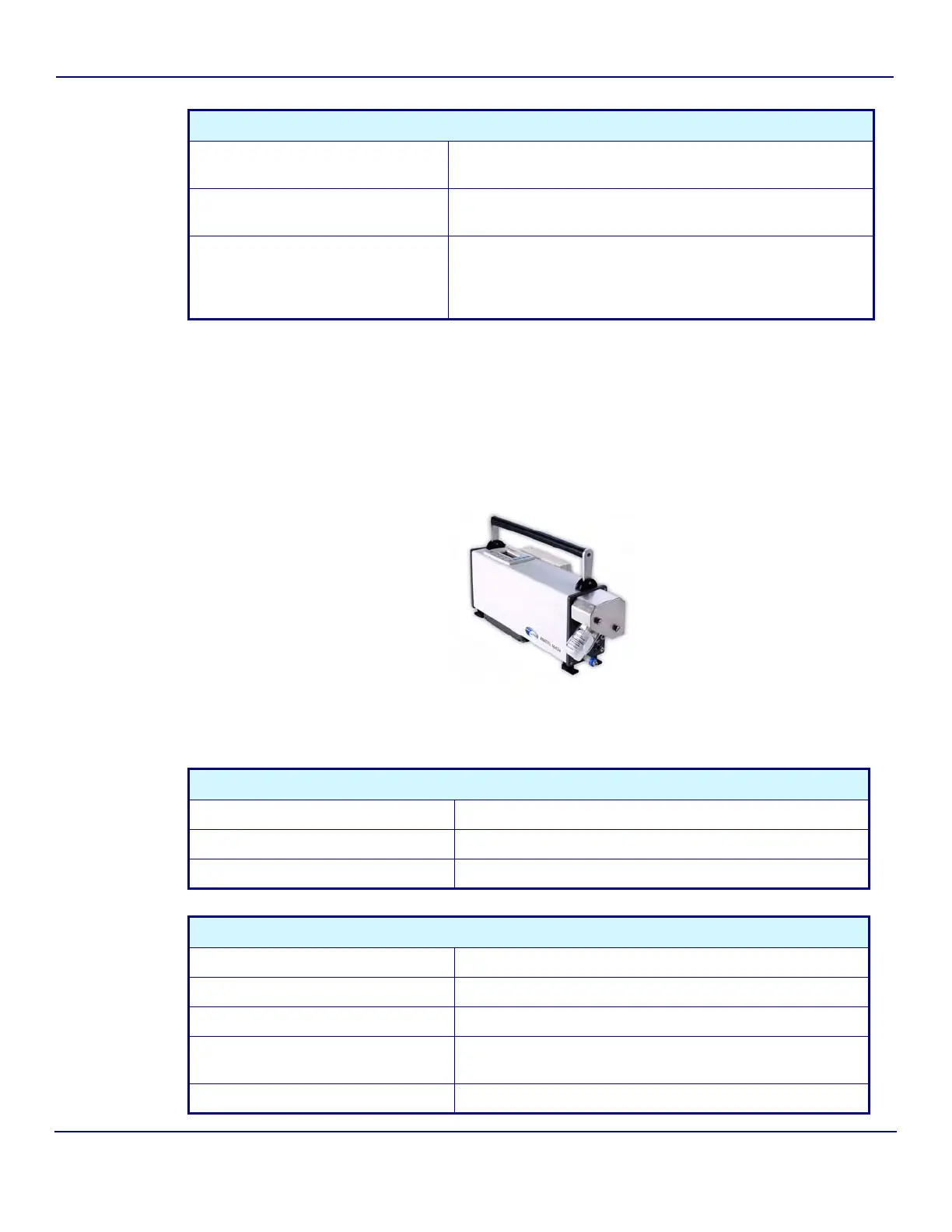

Fig B-2 : Anatel A643a–P TOC Analyzer
Display —
Main: 4-line x 16-character Super-Twist LCD
Backlighting (adjustable): Yellow LED
Character Height: 0.163”
Physical
Operating Temperature: 15 °C to 35 °C (59 °F to 95 °F)
Maximum Relative Humidity: 100 % RH (non-condensing)
Maximum Altitude: 4,000 m (13,125 ft)
Size
(including sample vessel assembly):
193 mm H x 489 mm W x 119 mm D
(7.6” H x 19.25” W x 4.7” D)
Weight: 8.85 kg (19.5 lb)
