ANATEL A643a User Manual

Anatel A643a - Analog Outputs 125 of 220
RPS - June 2007 - Edition 12
Anatel Operator Manual
9.2.2.2 Analog Output Range
Note:
Default: 4 to 20 mA
The DAC mA Range internally defines the span (4 to 20 or 0 to 20 mA) of the analog output
that is presented at the Anatel A643a’s 4–20 mA port. The lower and upper limits of the chosen
range correspond to the Zero-Scale and Full-Scale TOC values.
To set the Analyzer’s mA Range:
1) With the DAC Range Menu displayed, specify DAC mA Range and press Enter to
display its parameters screen.
2) Use the Up and Down Keys to select the desired analog output range.
3) Press Enter to enable the DAC mA Range selection.
4) Press Esc to return to the DAC Range Menu.
Note:
The chosen analog output range must match the range on the connected device for proper
reporting.
1 SENSOR NAME
X DAC mA Range:
DAC Zero-Scale:
DAC Full-Scale:
Fig 9-7 : DAC Range Menu

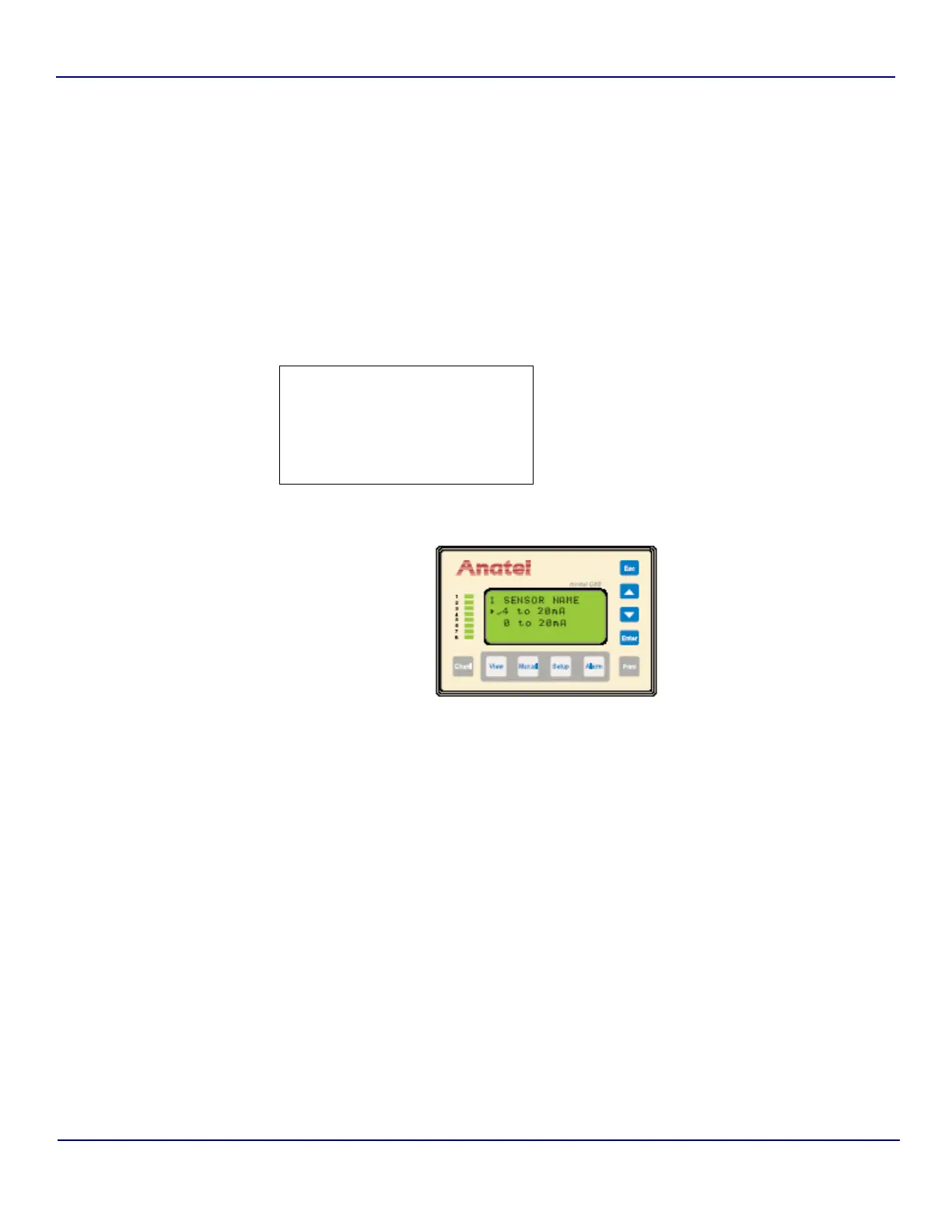

Fig 9-8 : mA Range Screen
