50 of 220 C80 Controller Setup - Anatel A643a
RPS - June 2007 - Edition 12
Operator Manual Anatel
4.5.3 The Channel Display
The Chnl Key furnishes general information about the instrument including its Model and
Serial Number, operational mode and current state.
These Channel data are accessible either from the Single Channel View, or by using the Up
and Down Keys to identify the desired Analyzer in the Multichannel View and then pressing
Chnl. The four lines of data presented in the Channel Display are:
This information may be examined for other associated instruments simply by pressing the Up
and Down Keys once the Channel display is presented.
Pressing the Chnl Key twice displays the checksum value of the instrument’s controlling
EPROM as well as is current firmware version. This ROM checksum is calculated each time
the instrument is powered-up and is the same value that would be produced by a device
programmer. The checksum value and firmware version are also available on the Factory
Configuration printout (see “Printouts” on page 117).
Line 1 The instrument’s Channel ID Number and userentered Name.
Line 2 The Analyzer Model and Serial Number.
Line 3 The Analyzer’s current operational Mode.
Line 4 The Analyzer’s current operational State.

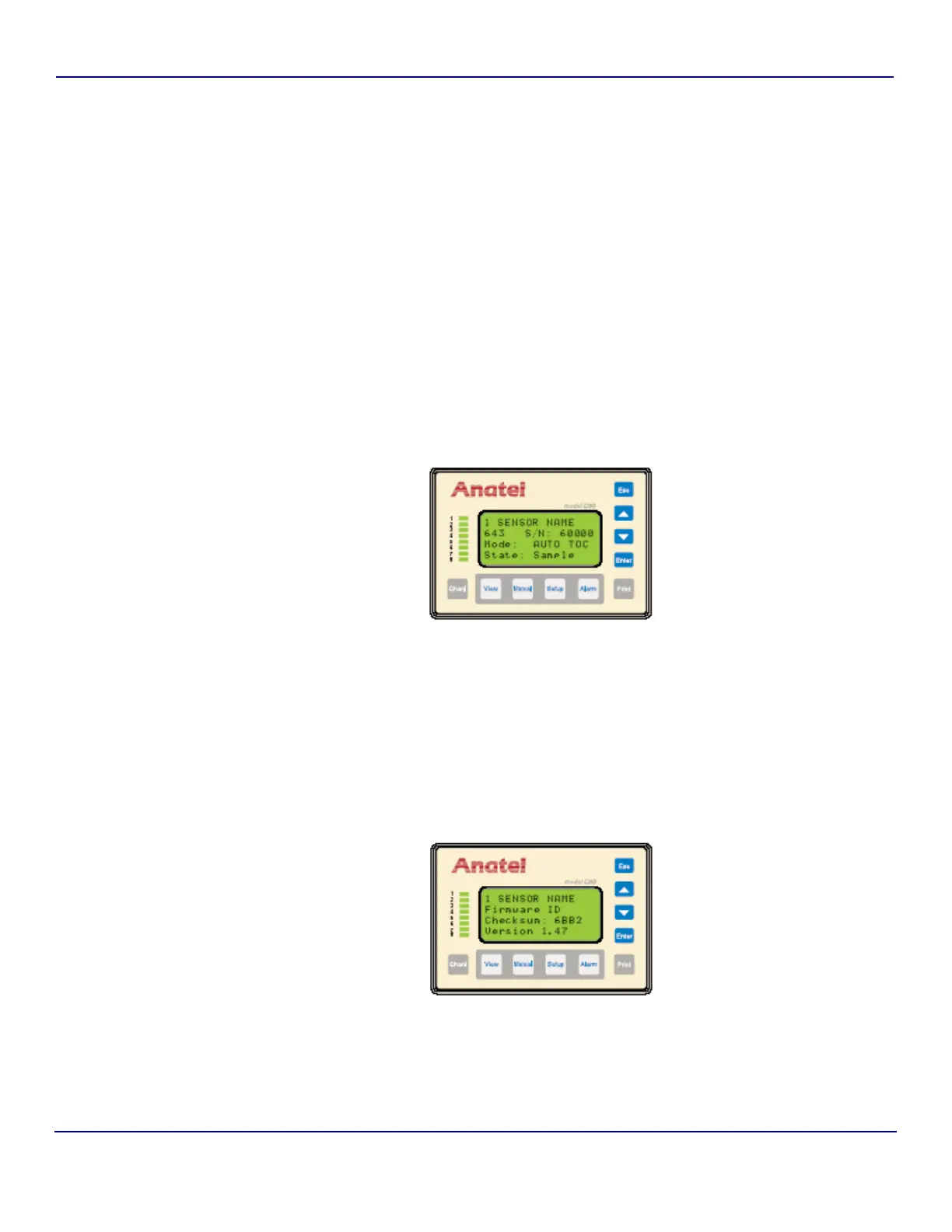

Fig 4-9 : The Channel Display
Fig 4-10 : The Checksum Display
