182 of 220 Troubleshooting - Anatel A643a
RPS - June 2007 - Edition 12
Operator Manual Anatel
14.4 Sensor Diagnostics
Diagnostic tests conducted on individual Analyzers can be quite helpful in isolating the source
of a reported alarm. The C80 Controller software is equipped with a series of user-initiated
diagnostic and reporting capabilities that are designed to facilitate the resolution of detected
problems. These internal tests can be conducted to verify the instrument’s electronic, analysis
and communications components to assure that they are functioning properly. The results of
these diagnostic tests are reported on the display as well as on an automatic printout.
To perform Anatel A643a diagnostics:
1) With the suspect Analyzer selected in any View, press the Setup Key to access its
menu selections.
2) Use the Up and Down Keys to specify Sensor Setup.
3) Press Enter to display its submenu.
4) Specify Diagnostics and press Enter to display the available options.
5) Specify the desired diagnostic area and then press Enter to display its function.

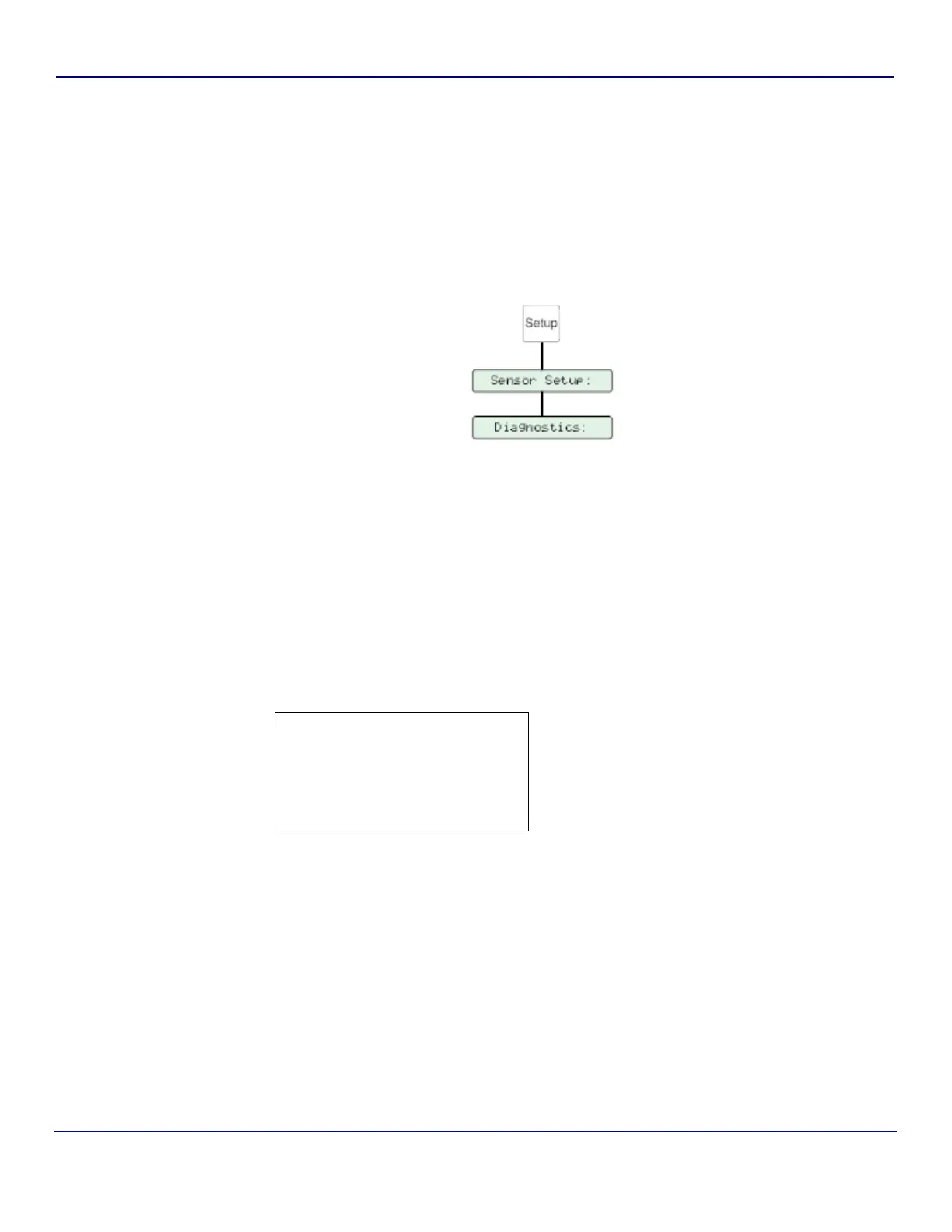

Fig 14-2 : Sensor Diagnostics
1 SENSOR NAME
X Electronics:
Cell:
I/O:
Fig 14-3 : Diagnostics Menu
To Next Page
