5) Press Esc twice to retain the Zero-Scale Temp setting and return to the DAC Range
Menu.
6) Select DAC Full-Scale and press Enter.
Note:
The Full-Scale Temp value must be greater than the Zero-Scale Temp value.
7) Specify Temp DAC and press Enter to display its fullscale parameter screen.
8) Use the Up and Down Keys to scroll the setting until the desired value is displayed.
9) Press Esc twice to retain the Full-Scale Temp setting and return to the DAC Range
Menu.
1 SENSOR NAME
Zero-Scale Temp
25 °C
S/T to change

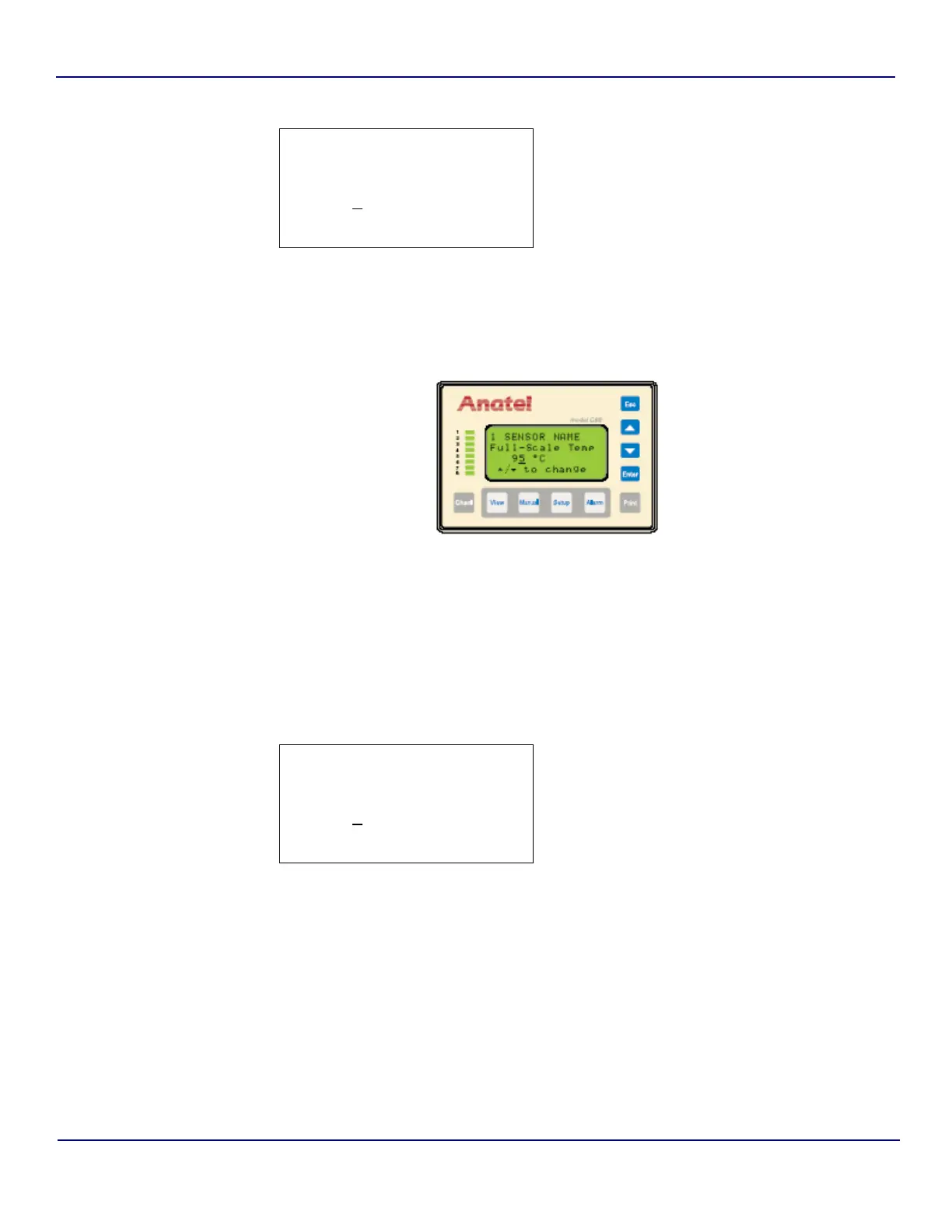

Fig 9-33 : Zero-Scale Temp Data
Fig 9-34 : Full-Scale Temperature Screen
1 SENSOR NAME
Full-Scale Temp
75
°C
S/T to change
Fig 9-35 : Full-Scale Temp Data
