68 of 220 Anatel A643a Setup - Anatel A643a
RPS - June 2007 - Edition 12
Operator Manual Anatel
To enable Cycle Modes data reporting:
1) With the desired instrument selected in any View, press the Setup Key.
2) Use the Up and Down Keys to specify Sensor Setup and press Enter.
3) Select Analysis Setup and press Enter.
4) Select Times & Cycle and press Enter.
5) Select Cycle Modes and use the Up and Down Keys to choose the desired setting:
• TOC & Idle displays the data from the last TOC analysis during the Cycle Time
Idle interval.
• TOC & Purge displays conductivity (or resistivity) and temperature data during
the instrument’s Idle Time.
6) With the desired Cycle Mode setting indicated, press Enter to enable it.
7) Press Esc repeatedly to exit this function and return to the normal display.
Reporting of this Cycle Time data can be limited to display only by disabling purge printouts
(see “Purge Printouts” on page 72). TOC results will continue to be printed as specified in “Auto
TOC Printout” on page 69.

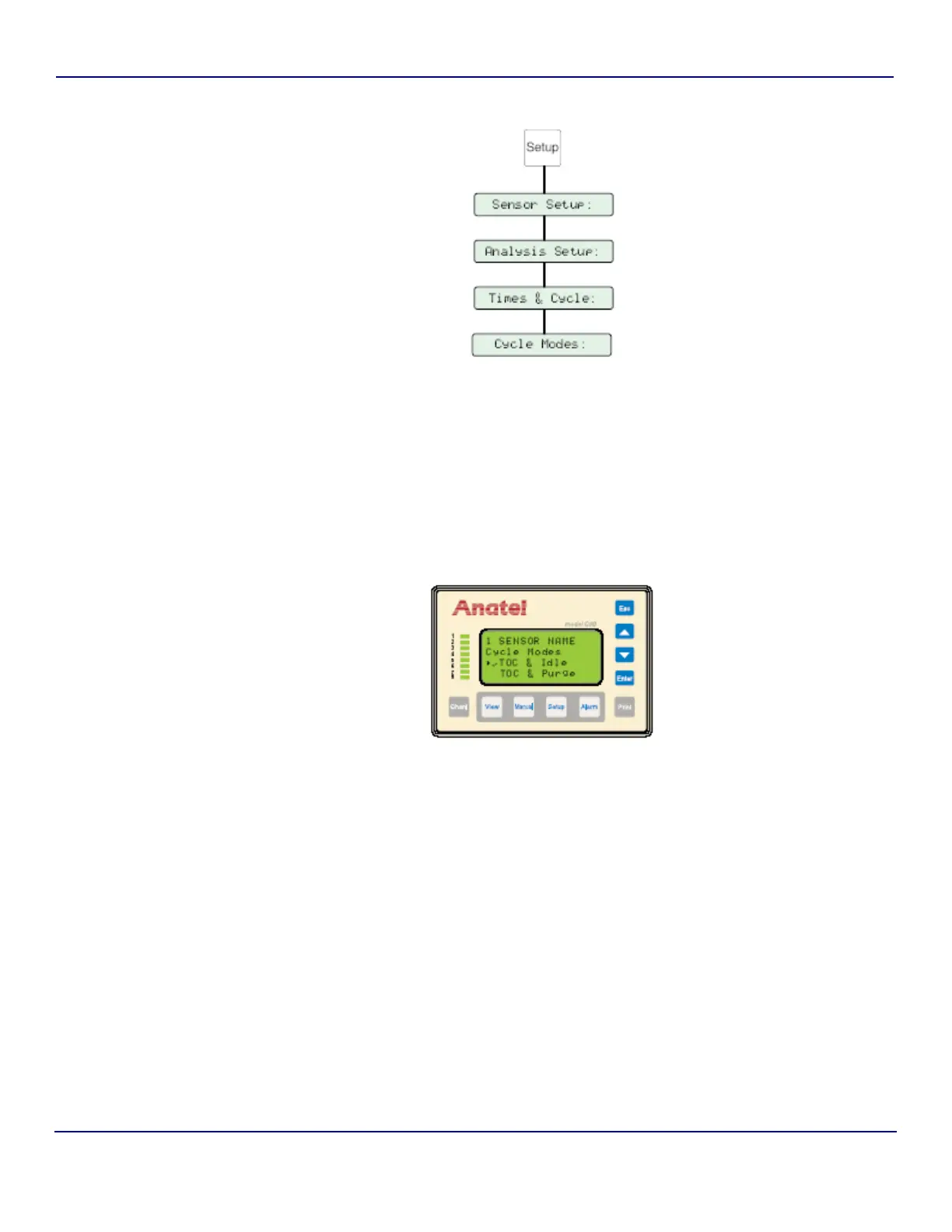

Fig 5-30 : Cycle Modes
Fig 5-31 : Cycle Modes Screen
