ANATEL A643a - Fig 9-27: Zero-Scale Uncompensated Conductivity Display; Fig 9-28: Zero-Scale TOC Data; Fig 9-29: Full-Scale Uncompensated Conductivity Display

Anatel A643a - Analog Outputs 135 of 220
RPS - June 2007 - Edition 12
Anatel Operator Manual
4) Use the Up and Down Keys to scroll in single increments until the desired value is
displayed.
5) Press Esc twice to retain the Zero-Scale Cond setting and return to the DAC Range
Menu.
6) Select DAC Full-Scale and press Enter.
Note:
The Full-Scale Cond value must be greater than the Zero-Scale Cond value.
7) Specify Res/Cond DAC and press Enter to display its full-scale parameter screen.
8) Use the Up and Down Keys to scroll the setting until the desired value is displayed.

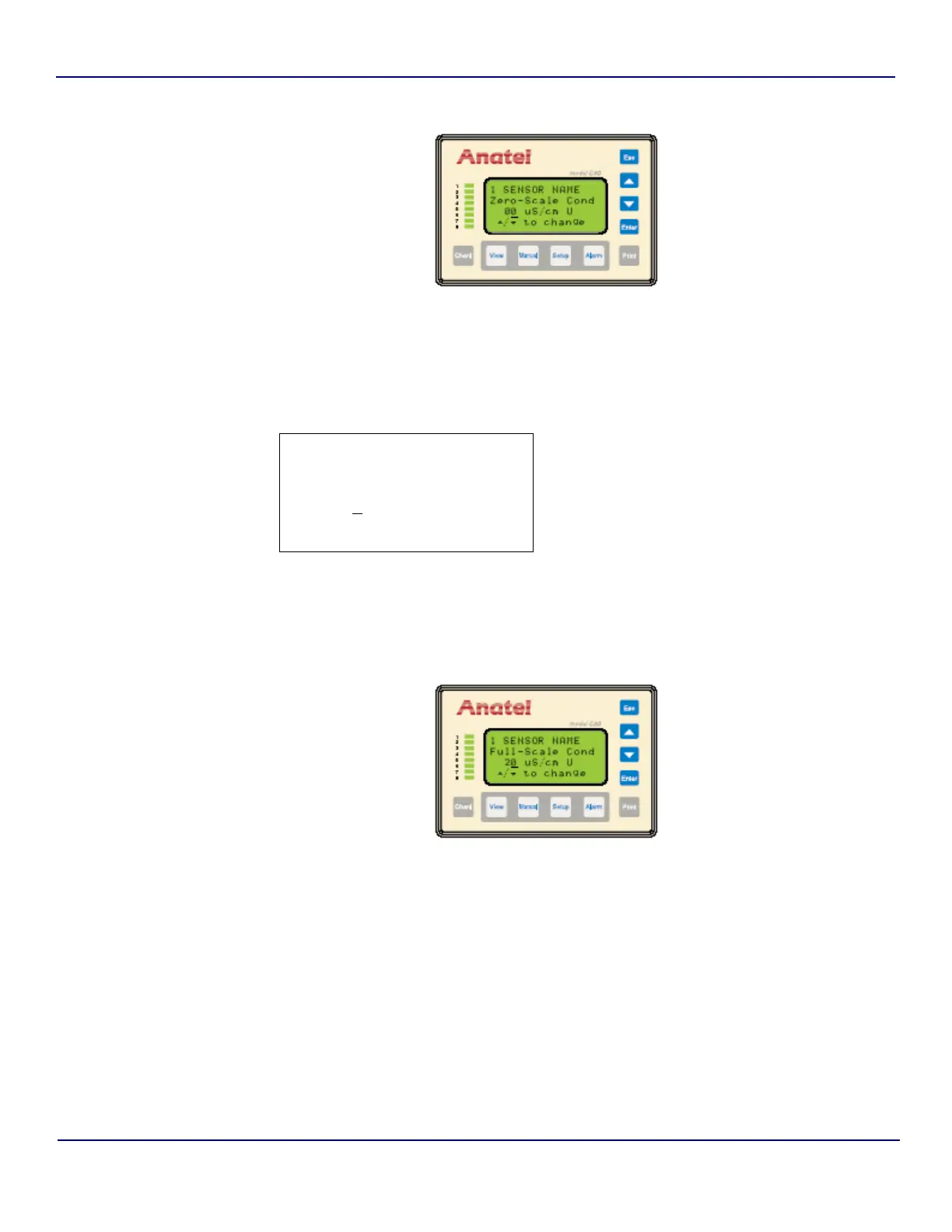

Fig 9-27 : Zero-Scale Uncompensated Conductivity Display
1 SENSOR NAME
Zero-Scale Cond
01 uS/cm U
S/T to change
Fig 9-28 : Zero-Scale TOC Data
Fig 9-29 : Full-Scale Uncompensated Conductivity Display
