22 of 220 Instrument Installation - Anatel A643a
RPS - June 2007 - Edition 12
Operator Manual Anatel
2.2.3 Software Setup
The following setup procedures are performed through the C80 Controller. Refer to “C80
Controller Setup” on page 45 if necessary for a description of this control device and its
keyboard interface.
With communications established, define the System Time on the C80 Controller and give the
Anatel A643a–S a Sensor Name. The same programming should be performed on stand-
alone Anatel A643a–P Analyzers to assure that they are operating properly.
2.2.3.1 System Time
Each Analyzer’s onboard clock is set at the factory during testing. It should be checked,
however, and altered if necessary to display local time.
To set the Controller’s clock/calendar:
1) Press the Setup Key to display the Setup Menu.
2) Use the Up and Down Keys to specify System Setup.
3) Press Enter to access its submenu.

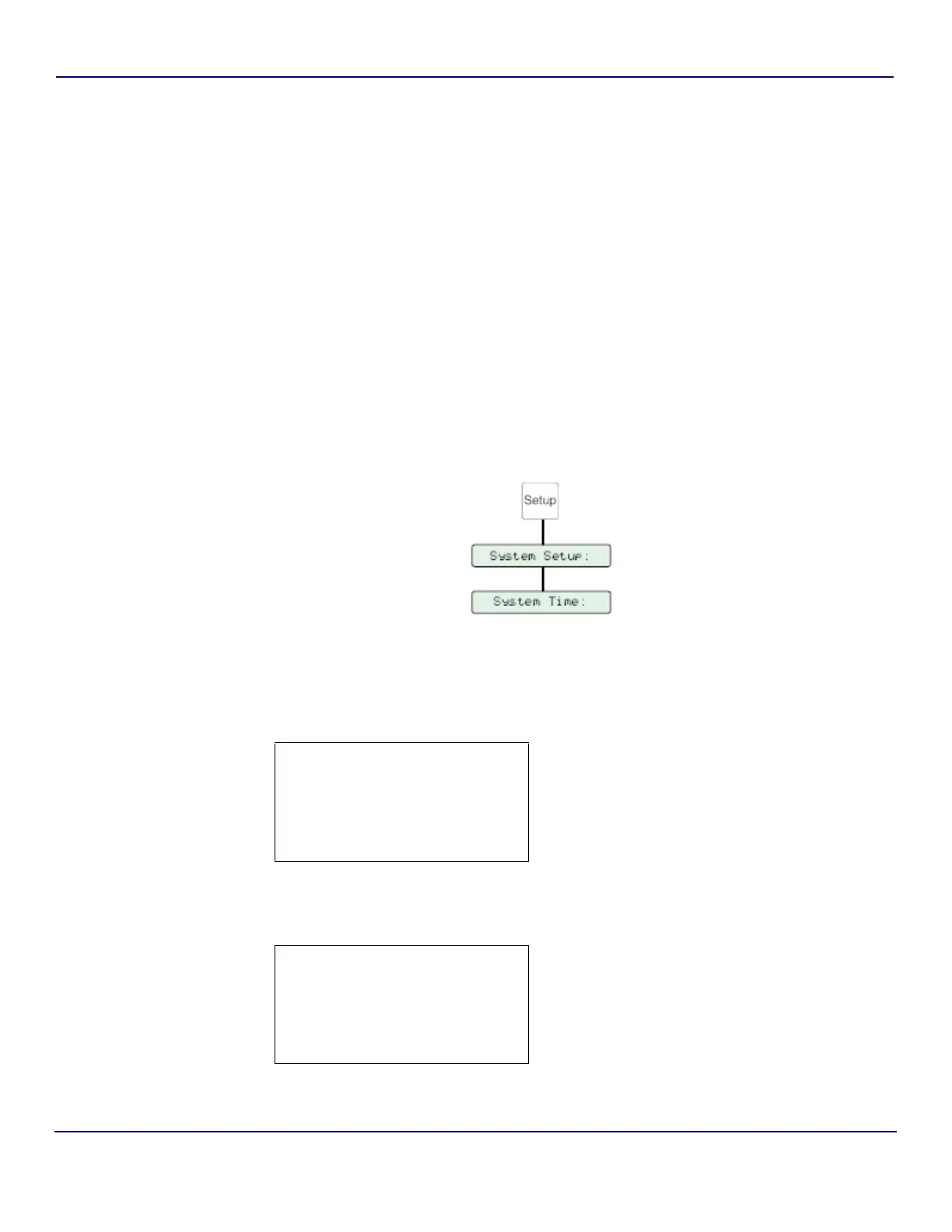

Fig 2-3 : System Time
Sensor Setup:
X System Setup:
C80 Setup:
Gateway Setup:
Fig 2-4 : Sensor Setup Selections
X
System Time:
Network Test:
ID to SN Xref:
Fig 2-5 : System Time Submenu
To Next Page
