34 of 220 Instrument Installation - Anatel A643a
RPS - June 2007 - Edition 12
Operator Manual Anatel
I/O connections require a Phillips-head and a small flathead screwdriver and are made as
follows:
1) Make sure the Analyzer is turned OFF and disconnected from its power source.
2) Remove the I/O Connector Block from the bottom of the Anatel A643a analyzer by
loosening the four retaining screws. A medium flat blade screwdriver may be required.
3) Loosen and remove the two screws that secure the metal strain relief plate.
4) Feed the device wiring through one of the holes at the end of the I/O Connector Block
cover and along the corresponding slot in the foam padding.

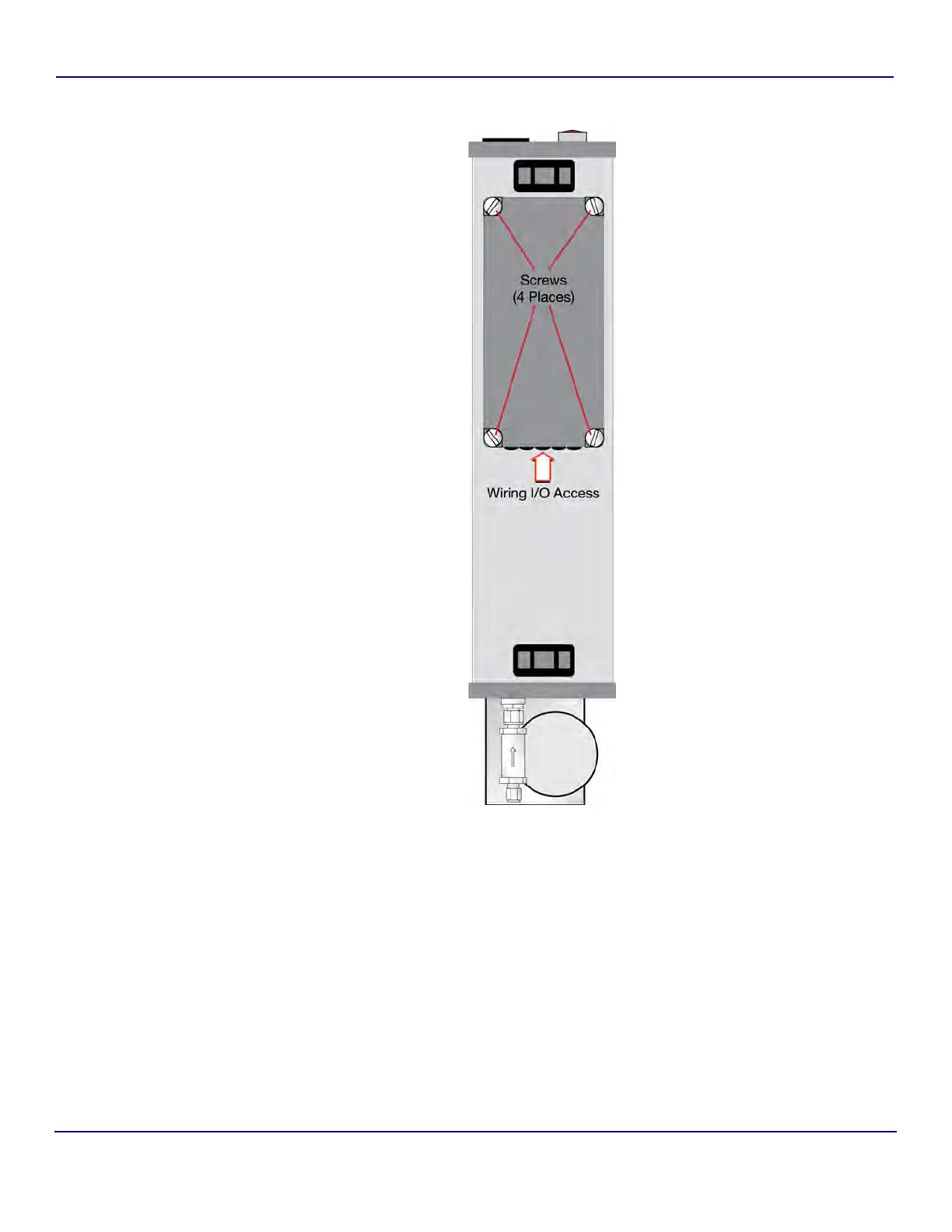

Fig 2-23 : Anatel A643a Analyzer (Bottom View)
