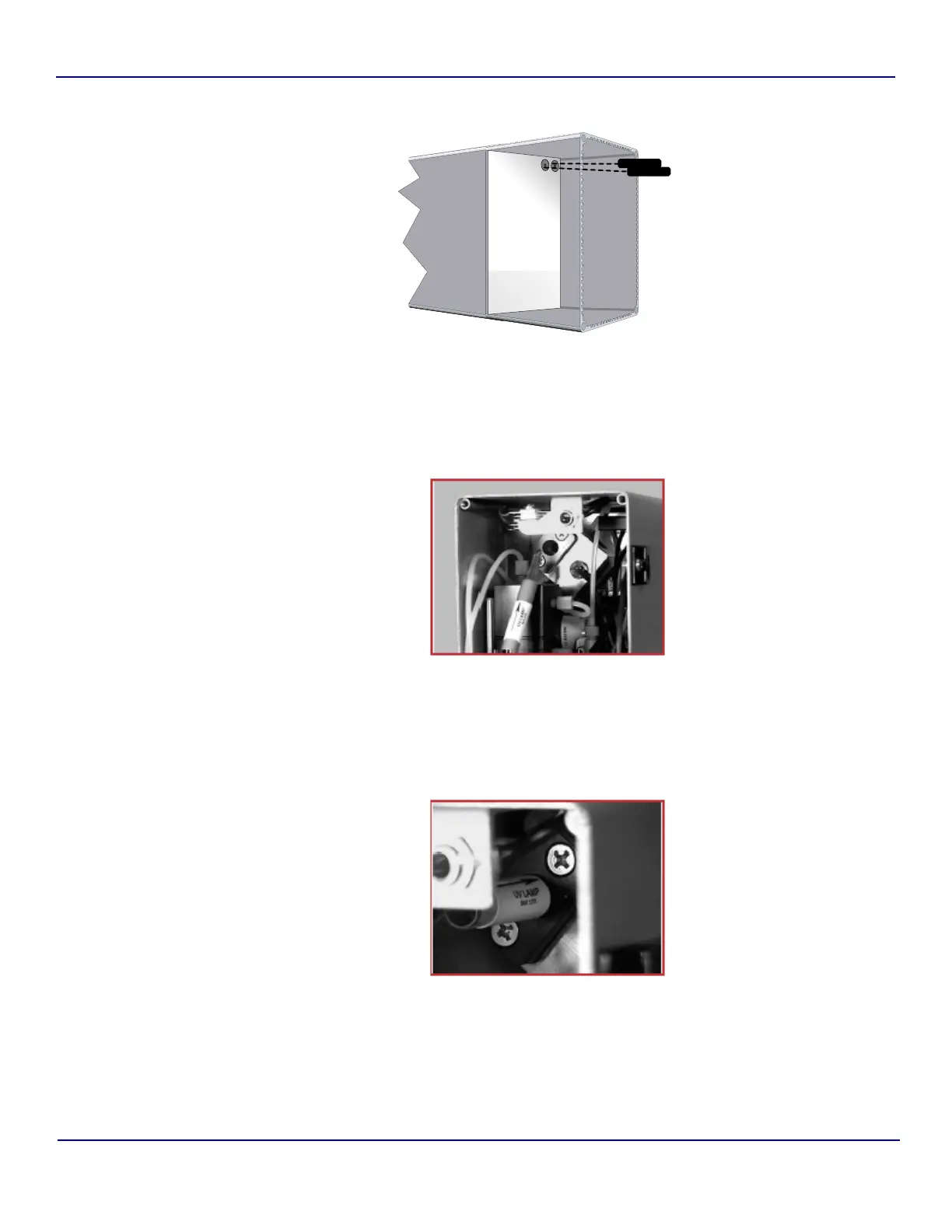

ANATEL A643a - Fig 13-9: Prior UV Lamp Assembly Design with Adapter Plugs; Fig 13-10: Inserting the New UV Lamp Assembly; Fig 13-11: Aligning the Arrow with the Bracket Screw

Anatel A643a - Anatel A643a Maintenance 163 of 220
RPS - June 2007 - Edition 12
Anatel Operator Manual
9) Insert the new UV Lamp Assembly from the Replacement Kit into the housing in the
cell.
10) Turn the UV Lamp so that its arrow aligns with the center of the upper bracket screw as
shown.
11) Holding the UV Lamp with the arrow aligned and tighten the Phillips-head screws about
1-1/2 turns to secure it in the cell housing.
Fig 13-9 : Prior UV Lamp Assembly Design with Adapter Plugs
Fig 13-10 : Inserting the New UV Lamp Assembly
Fig 13-11 : Aligning the Arrow with the Bracket Screw
Adapter
Plugs
