Page 4–124
DURApulse GS4 AC Drive User Manual – 1st Ed, Rev A - 10/20/2017
Chapter 4: AC Drive Parameters
Type Hex Addr Dec Addr
P5.01 Multi-Speed 1
♦R/W 0501 41282
P5.02 Multi-Speed 2
♦R/W 0502 41283
P5.03 Multi-Speed 3
♦R/W 0503 41284
P5.04 Multi-Speed 4
♦R/W 0504 41285
P5.05 Multi-Speed 5
♦R/W 0505 41286
P5.06 Multi-Speed 6
♦R/W 0506 41287
P5.07 Multi-Speed 7
♦R/W 0507 41288
P5.08 Multi-Speed 8
♦R/W 0508 41289
P5.09 Multi-Speed 9
♦R/W 0509 41290
P5.10 Multi-Speed 10
♦R/W 050A 41291
P5.11 Multi-Speed 11
♦R/W 050B 41292
P5.12 Multi-Speed 12
♦R/W 050C 41293
P5.13 Multi-Speed 13
♦R/W 050D 41294
P5.14 Multi-Speed 14
♦R/W 050E 41295
P5.15 Multi-Speed 15
♦R/W 050F 41296
Range/Units (Format: 16-bit unsigned) Default
0�00~600�00 Hz
0�0
The Multi-Function Input Terminals (DI1~DI15) are used to select individual Multi-Speed
frequencies (max. 15). The speeds (frequencies) are determined by the values placed in
parameters P5.01 through P5.15.
•
Multi-Function inputs (DI1, DI2, DI3, and DI4) are configured for “Multi-Speed” by default�
•
Reference P3�03~P3�10 (page 4–66) to configure GS4 local Multi-Function Inputs (DI1~DI8)�
•
Reference P3�11~P3�16 (page 4–66) to configure GS4 optional Multi-Function Inputs (DI10~DI15),
if used�

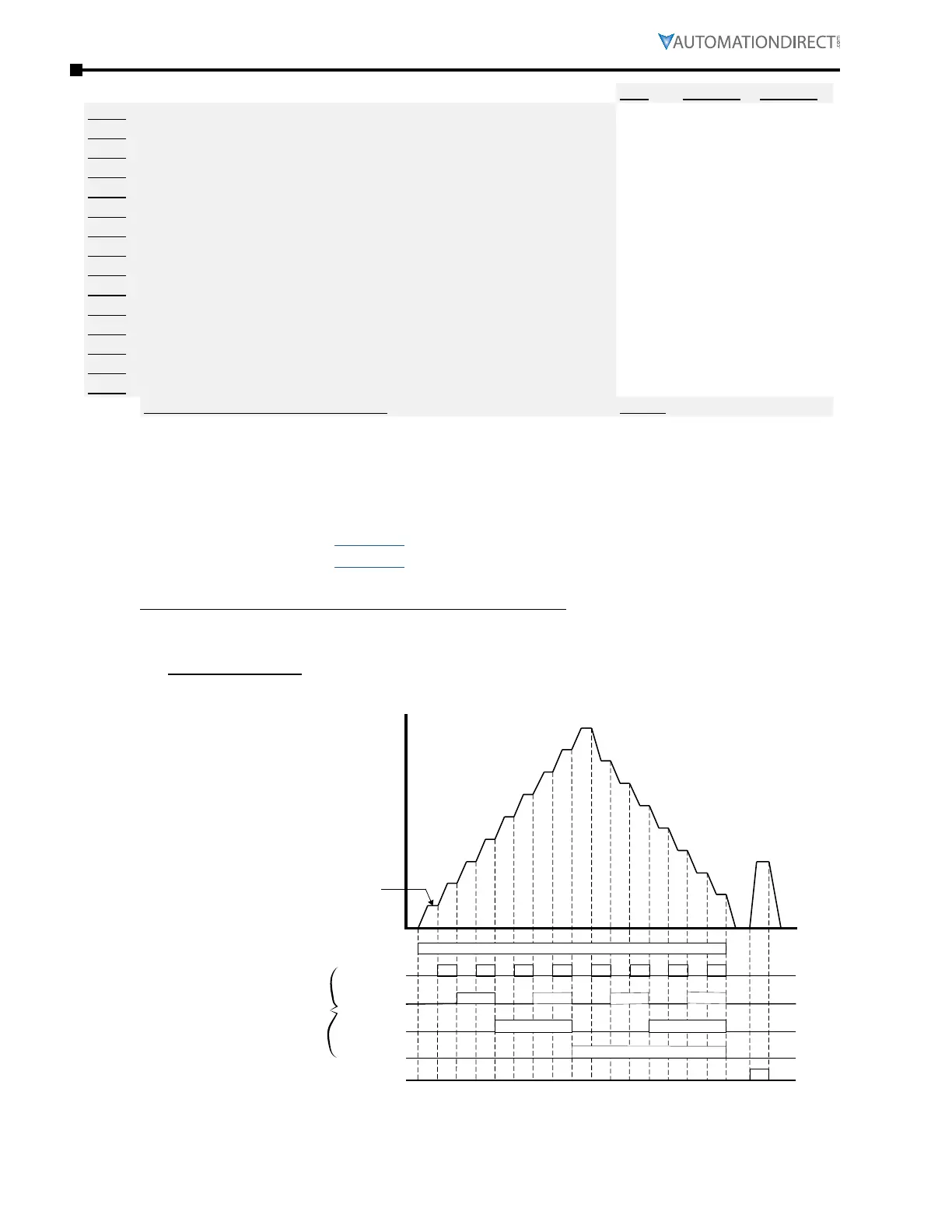

Timing diagram for multi-step speeds and external terminals:
•
P5�01~15: setting multi-speed frequencies (to set the frequency of each step speed)
•
P3�03~16: setting multi-function input terminals (multi-step speeds 1~4)
•
Related parameters: P5�00 JOG Frequency; P3�03 Multi-Function Input (DI1); P3�04 Multi-Function
Input (DI2); P3�05 Multi-Function Input (DI3); P3�06 Multi-Function Input (DI4)
ON
ON ON ON
ON
OFF
OFF
OFF
ONON ON ON ON ON ON ON
ON
ON
ON
OFF
OFF
ON
1st Speed
Run/Stop
2nd Speed
3rd Speed
4th Speed
Jog Freq
Master Speed
P5.01
P5.02
P5.03
P5.04
P5.05
P5.06
P5.07
P5.08
P5.09
P5.10
P5.11
P5.12
P5.13
P5.14
P5.15
Jog Freq
P5.00
123456789101112131415
Frequency
Multi-Speed via External Terminals
PU / External Terminals / Communication
Multi-Functionals
Terminals DI1~DI8
P3.03~P3.16
To Next Page
