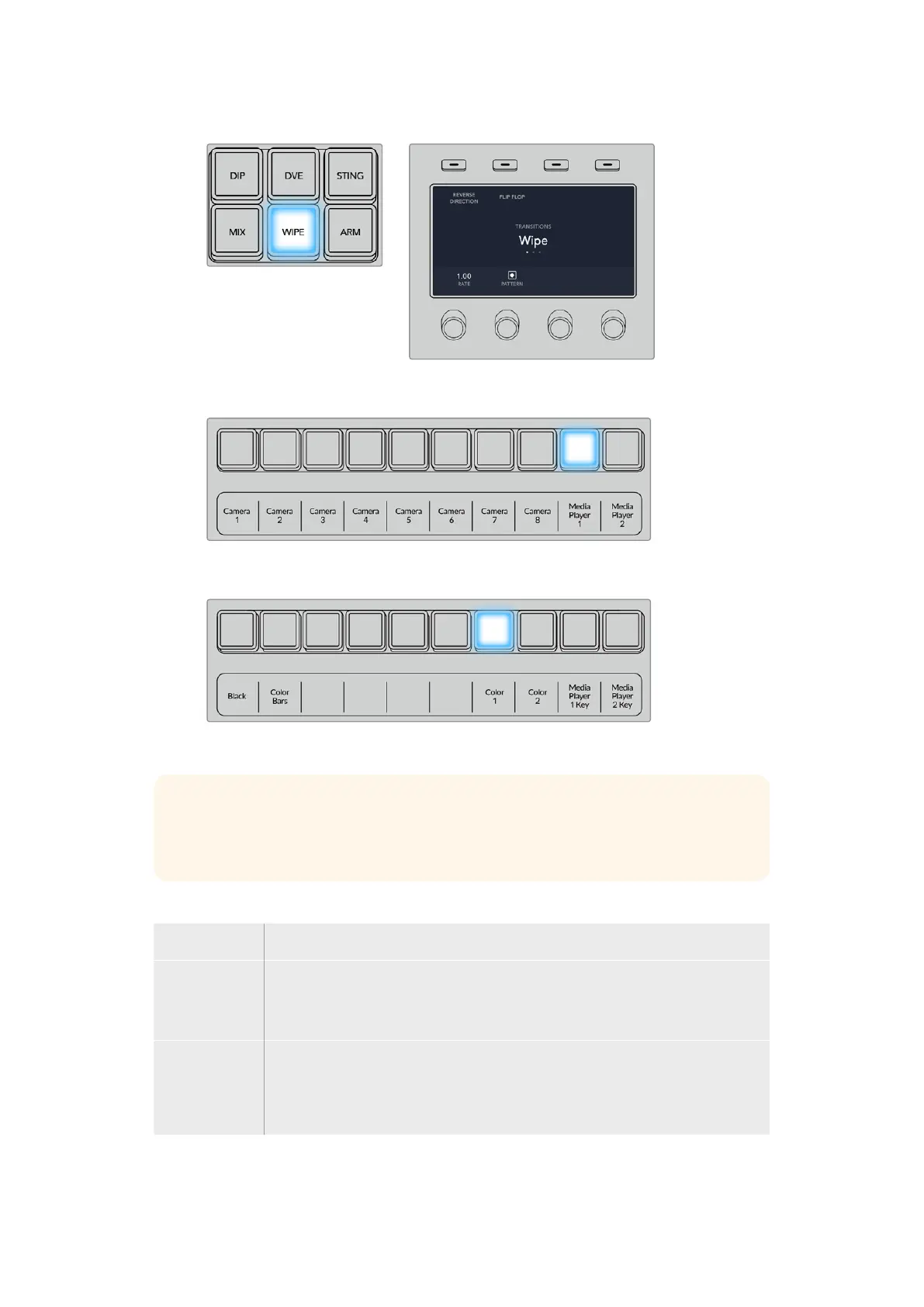

Press a source button in the source select row to select a source for the wipe border. Hold the
shift button down to select a shifted source, such as a color generator or media player.
Press a source button in the source select row to select a source for
the wipe border, such as a camera or media player.
Hold the shift button down to select a shifted source, such as color bars or a color generator.
TIP The border source used in a wipe transition can be any source in the switcher.
For example, a thick border with the media player as its source can be used for
sponsorship or branding.
Wipe transition parameters
Rate The length of the wipe transition in seconds and frames.
Symmetry Symmetry can be used to control the aspect ratio of the pattern.
For example, adjusting the symmetry will allow you to change a circle into an ellipse.
Symmetry can be adjusted using the z axis of the joystick.
Position If the wipe pattern has positioning then the joystick on the external panel or the x
position: and y position: boxes in the transition palette of the software control panel
can be used to move the center of the pattern. Moving the joystick dynamically
updates the x and y position display in the software control panel.
156Using ATEM 1 M/E Advanced Panel
