Multiview Settings
If you are using ATEM Mini Pro or Extreme switchers, the multiview settings allow you to set the
multiview orientation. You can swap the position of the multiview preview and program views
by clicking on the toggle button located between them.
The multiview settings also include the option to turn the safe area indicators inside the views
on or off. Simply click on the safe area icon in the preview window.
Audio meters can be turned on or off for all the switcher sources and program view by enabling
the ‘all on’ button in the multiview settings, or you can turn them on or off individually by clicking
the audio meter icon in each view. The opacity of the audio meters can be adjusted by
dragging the opacity slider left or right.
The multiview also includes a tally feature, so if any of the sources in the multi view are used in
a layer on the program or preview outputs, they will be highlighted red or green. A white border
means your source is not currently on the preview output, or on air on the program output.
A red border indicates the source is used on the program output and a green border indicates
a source is selected on the preview output.
The preview window on the multi view output features safe area markers so you can make
sure your program will look great on any monitor. The outer border represents the 16:9 graphics
safe area and the inner border represents the 4:3 graphics safe area.

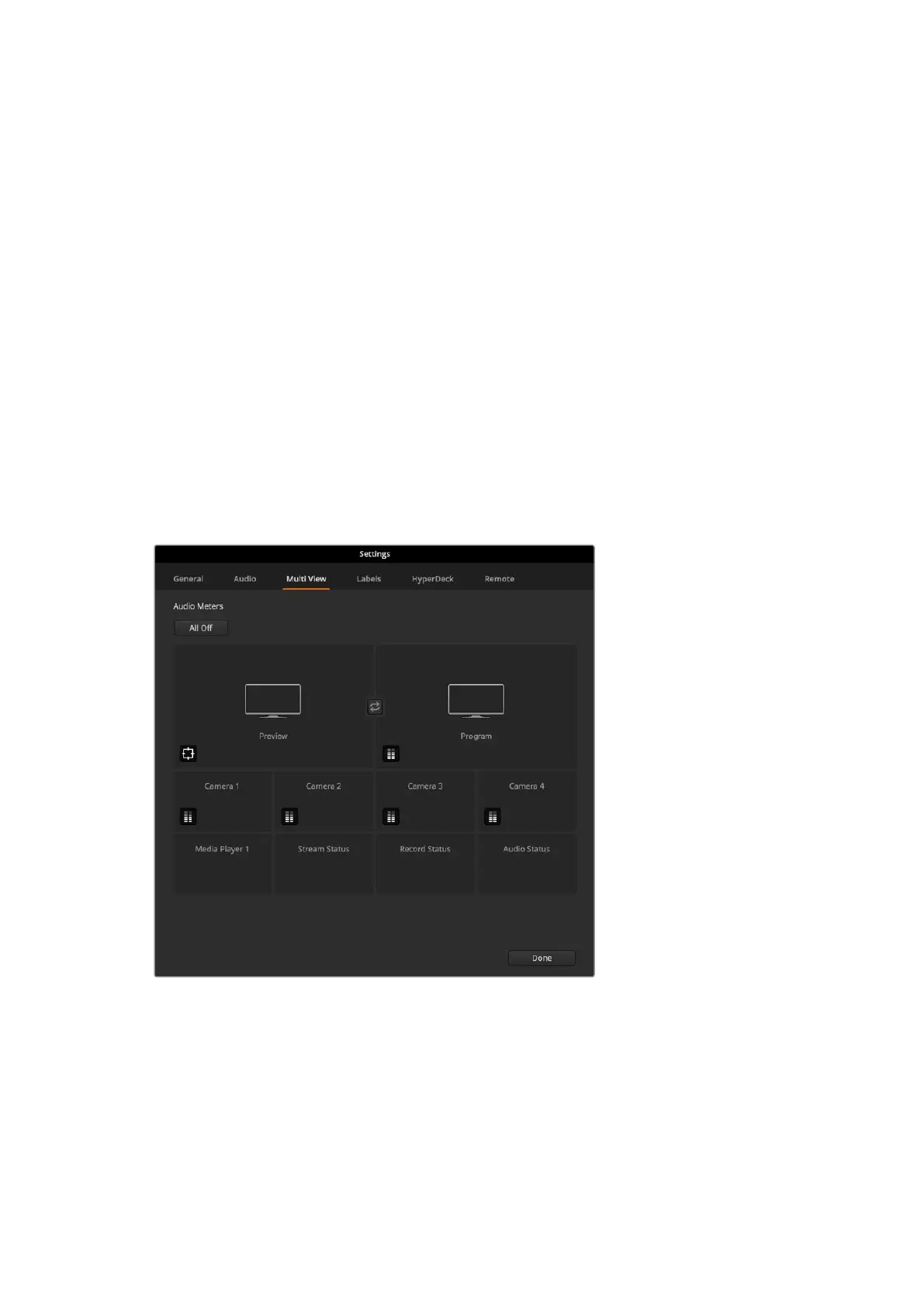

Customizing the multiview
90Changing Switcher Settings
