Plugging in Video Sources
Plug your HDMI cameras and other HDMI sources into ATEM Mini’s HDMI inputs. The first input
you plug in will set the video format, so if the first video source you plug in is 1080p50, all other
inputs will automatically be converted to 1080p50.

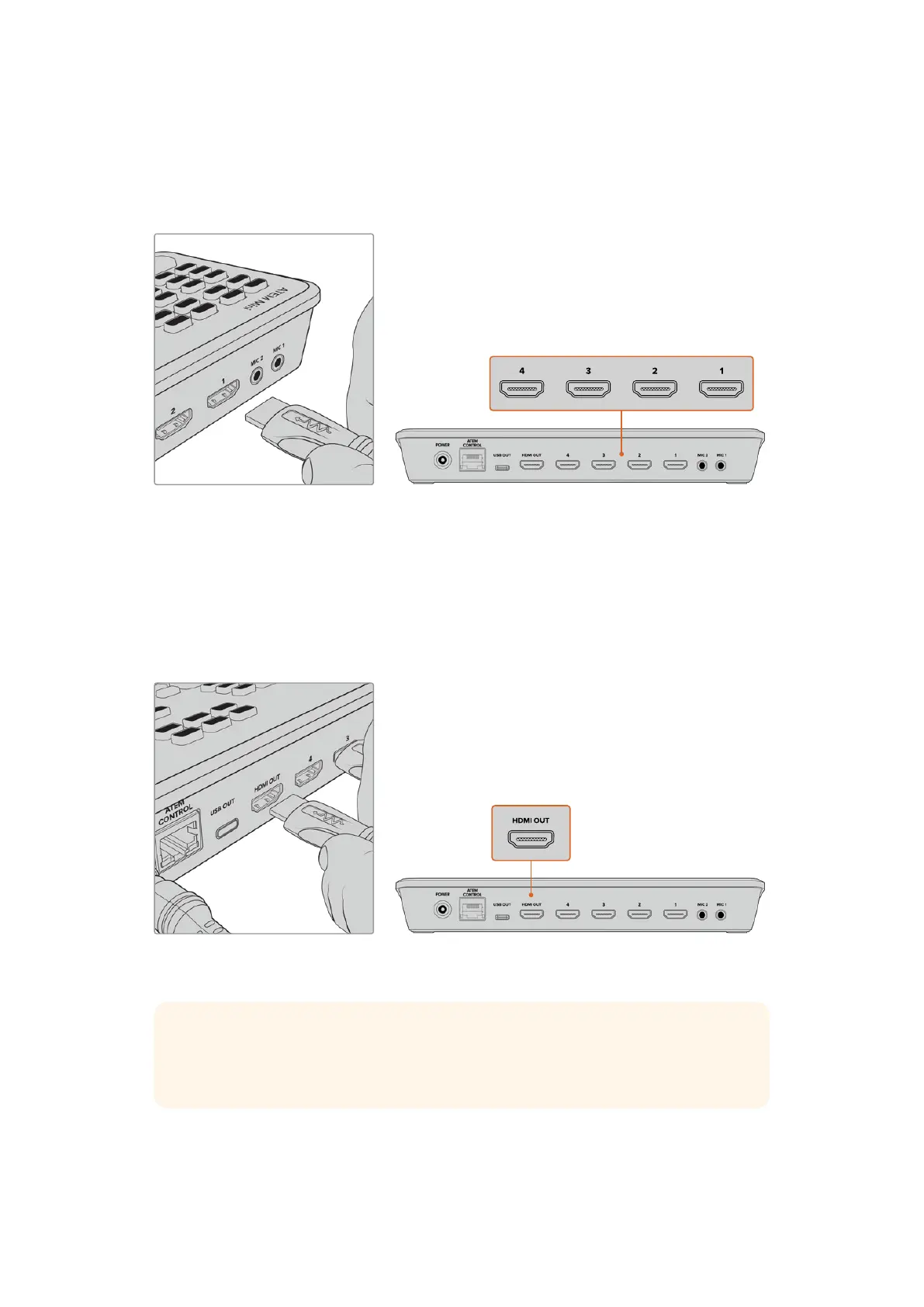

Plug HDMI sources into ATEM Mini’s four HDMI inputs
Switch between your sources by selecting the large numbered buttons on the unit.
Plugging in a Monitor and Testing Inputs
With your video sources connected, you can now plug an HDMI television into ATEM Mini’s
HDMI output and check all the inputs are working. This is also a good opportunity to check
sources and see if your shots are smoothly switching between each other.
Plug an HDMI television or monitor into ATEM Mini’s HDMI output so you can
monitor your program output and check all your sources are working properly
TIP ATEM Mini Pro and Extreme models have a powerful multiview feature that lets
you see all your inputs, plus program and preview outputs simultaneously on one
screen. For more information, refer to the ‘Using the Multiview’ section.
7Getting Started
