142 Programmer
Chapter 3 Programming with Command Function

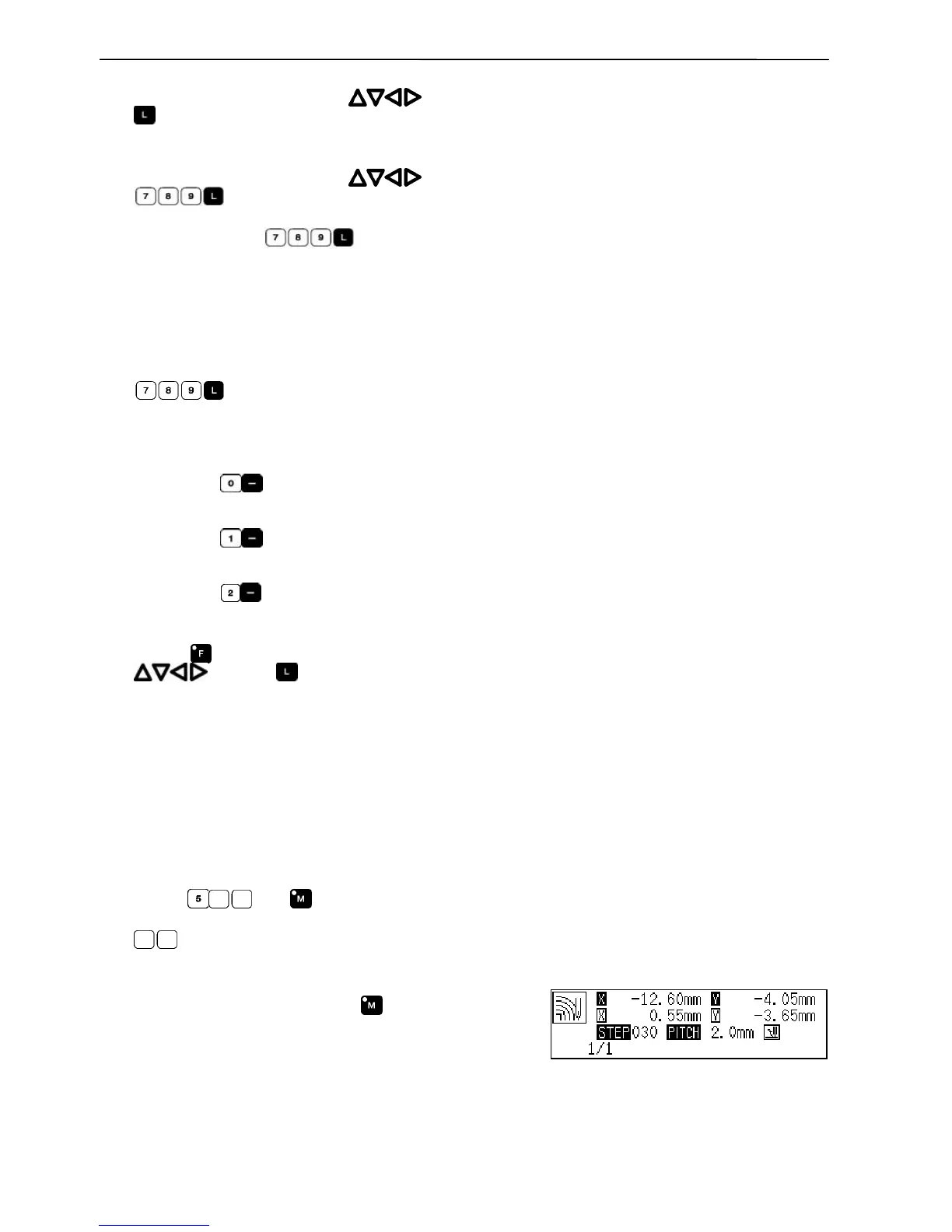

4. Move the work clamp with . Press
when the needle point is at point 2 of the
pattern.
5. Move the work clamp with
. Press
when the needle point is at point 3
of the pattern.
Be sure to press for a split at a
corner like point 3. If a split is not made, the
corner will be round.
6. Program the following points up to point 17 with
the curve programming steps.
When there is a liner section, move the needle
point from the split to the next split, and press
.
In the example, a linear line is programmed
between points 7 and 9. Be sure to program a
linear line also for the matched section between
points 24 and 26.
By pressing
, the needle point is returned to
the previous point. It cannot be returned beyond
the previous split.
By pressing
, the needle point is returned to
the previous split. However, when the needle
point is at a split, it cannot be moved.
By pressing
, the needle point is returned to
the split before the previous split.
7. Press . Move the work clamp with
. Press when the needle point is
at point 18 of the pattern.
8. Program the following points up to point 34 in
the same manner.
When programming, be sure that the points and
splits specified on the inside line are paired with
those on the outside line respectively.
If there are any points or splits not paired, the
needle automatically returns to the previous point.
Correct the program.
9. Press and .
Input the number of lines for a multiple stitch in
.
When the number should be "5", input "505".
10 Input the stitch length. Press .
"3.0 mm" is input in the example. Input "030" to
make the stitch length to 3.0 mm.
To Next Page
