CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-30

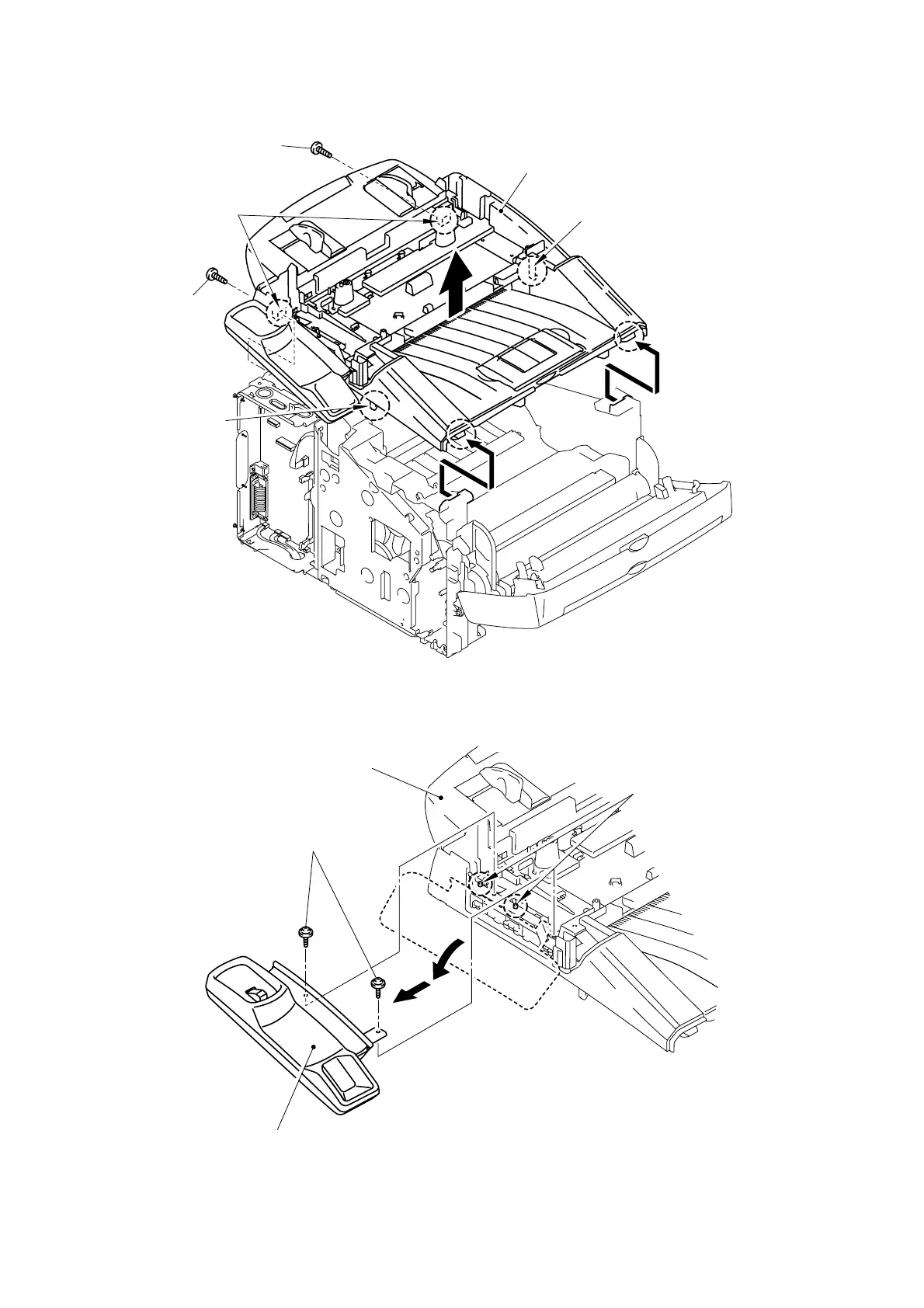

(3) Remove the two screws, release the four hooks, and then remove the top cover ASSY.
Fig. 4-52
(4) Remove the two cup B M3x10 Taptite screws and two pins, and then remove the handset
holder ASSY.

Fig. 4-53
Screw
Top cover ASSY
Taptite, cup B M3x10
Handset holder ASSY
2
1
Pin
Screw
Hooks
Top cover ASSY
Hook
Hook
