Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL
2-11

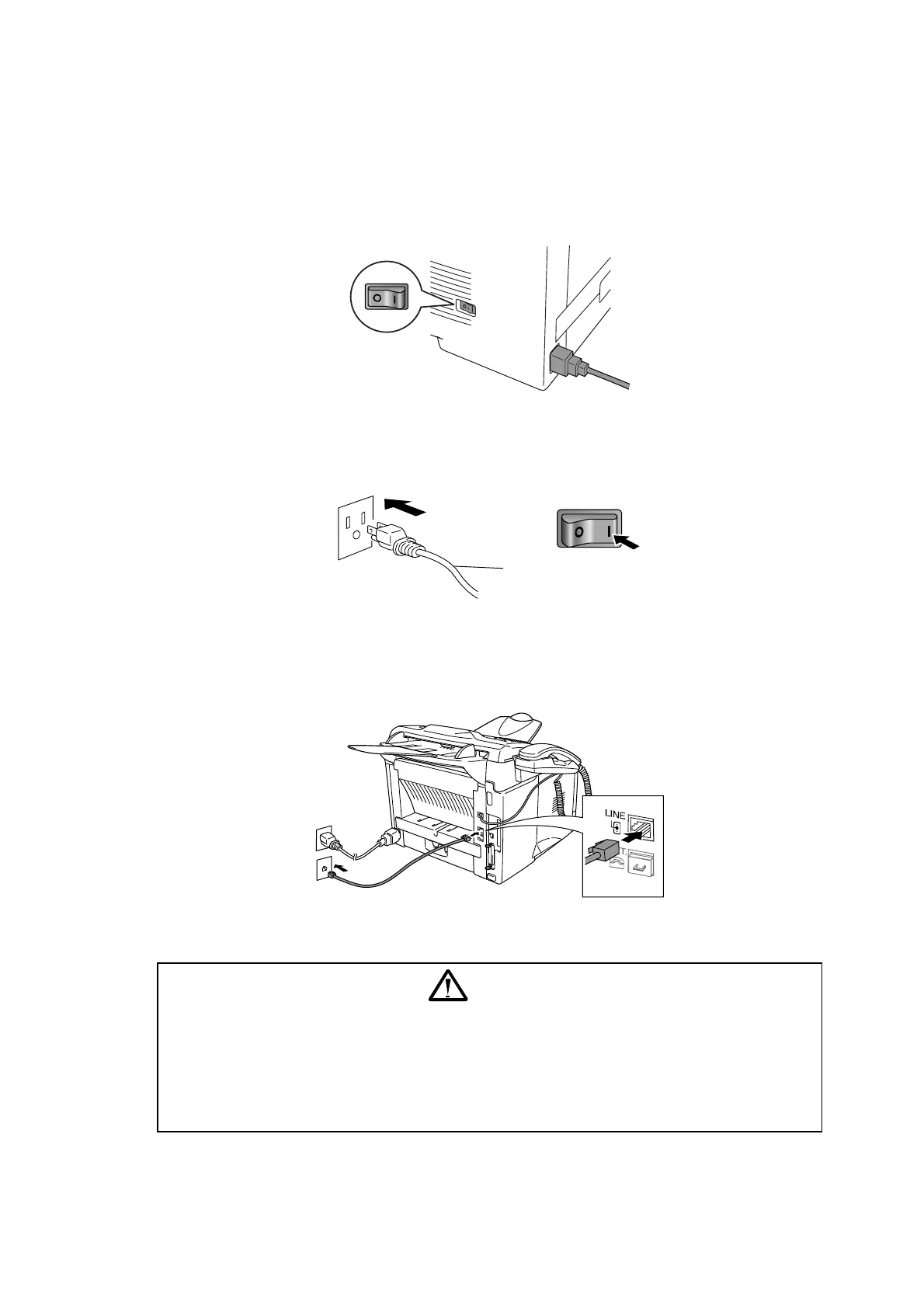

3.1.5 Installing the Power Cord and Phone Line
NOTE:
Do not connect the Parallel or USB cable yet.
(1) Make sure that the power switch is off. Connect the power cord to the machine.
Fig. 2-17
(2) Plug the power cord into an AC outlet. Turn the power switch on.
Fig. 2-18
(3) Connect one end of the telephone line cord to the jack on the machine marked LINE and
the other end to a modular wall jack.
Fig. 2-19
WARNING
- The machine must be grounded using a 3-prong plug.
- Since the machine is grounded through the power outlet, you can protect yourself from
potentially hazardous electrical conditions on the telephone network by keeping the power to
your machine on when you connect it to a telephone line. Similarly, you can protect yourself
when you want to move your machine by disconnecting the telephone line first and then the
power cord.
Power cord
* MJ cover is only equipped for Europe spec.

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
