Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL
4-45
3.15 Laser Unit

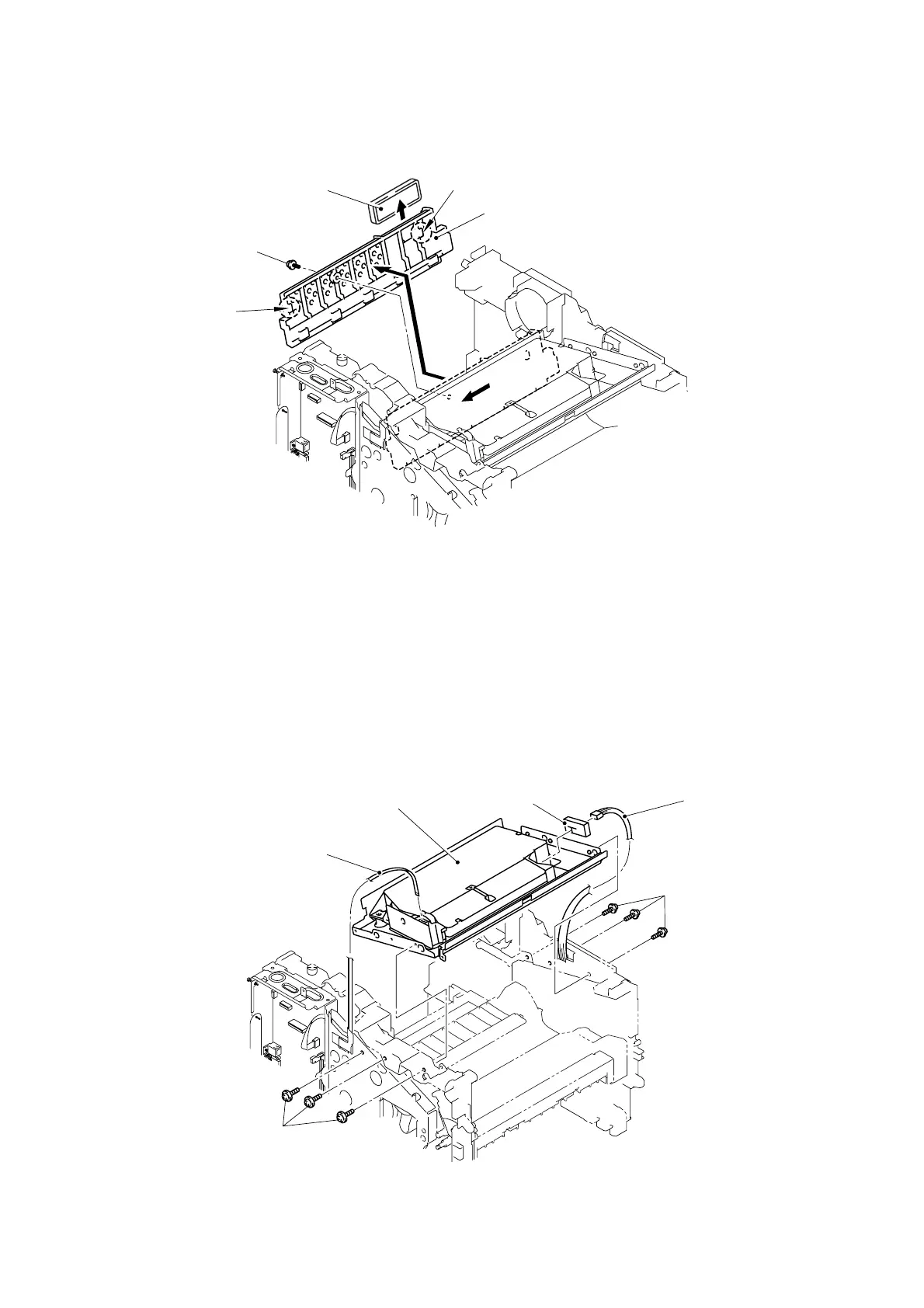

(1) Remove the filter, and then remove the cup S M3x8 Taptite screw and the air duct.
Fig. 4-81
(2) Disconnect the LD harness 5P from the laser unit.
NOTE:
• After disconnecting flat cable(s), check that each cable is not damaged at its end or
short-circuited.
• When connecting flat cable(s), do not insert them at an angle. After insertion, check
that the cables are not at an angle.
(3) Disconnect the polygon motor harness and remove the spongy from the polygon motor
harness.
(4) Remove the six cup S M3x8 Taptite screws, and then remove the laser unit.
Fig. 4-82
Filter
A
ir duct
Taptite, cup S M3x8
Taptite, cup S
M3x8
LD harness 5P
Laser unit
Polygon motor harness
Spongy
Taptite, cup S M3x8
Hook
Hook

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
