3.2 Original Jams
Based upon where the original or printed sheet is jammed, follow the appropriate set of
instructions to remove it.
3.2.1 Original is jammed in the ADF (Automatic document feeder)
(1) Open the control panel cover.
(2) Pull the jammed document to the front and remove it.
(3) Close the control panel cover and press Stop/Exit button.

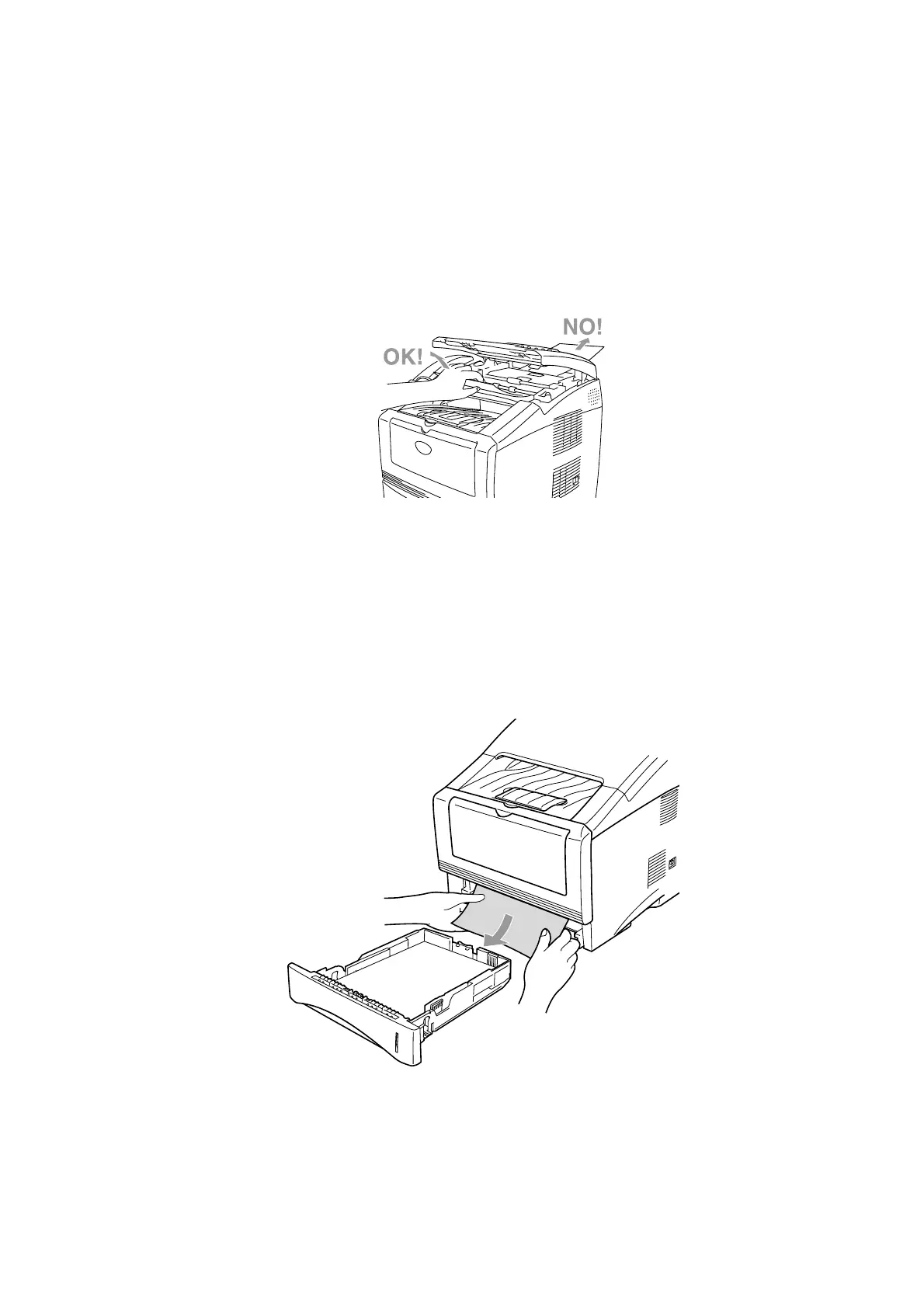

Fig. 6-1
3.3 Paper Jams
3.3.1 Clearing jammed paper
Clear the jammed paper following the procedures below;
(1) Pull the paper tray completely out of the machine.
(2) Pull the jammed paper up and out of the machine.
Fig. 6-2

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
