Brother MFC-8220 - Top Cover ASSY

MFC-8220
SERVICE MANUAL
4-29

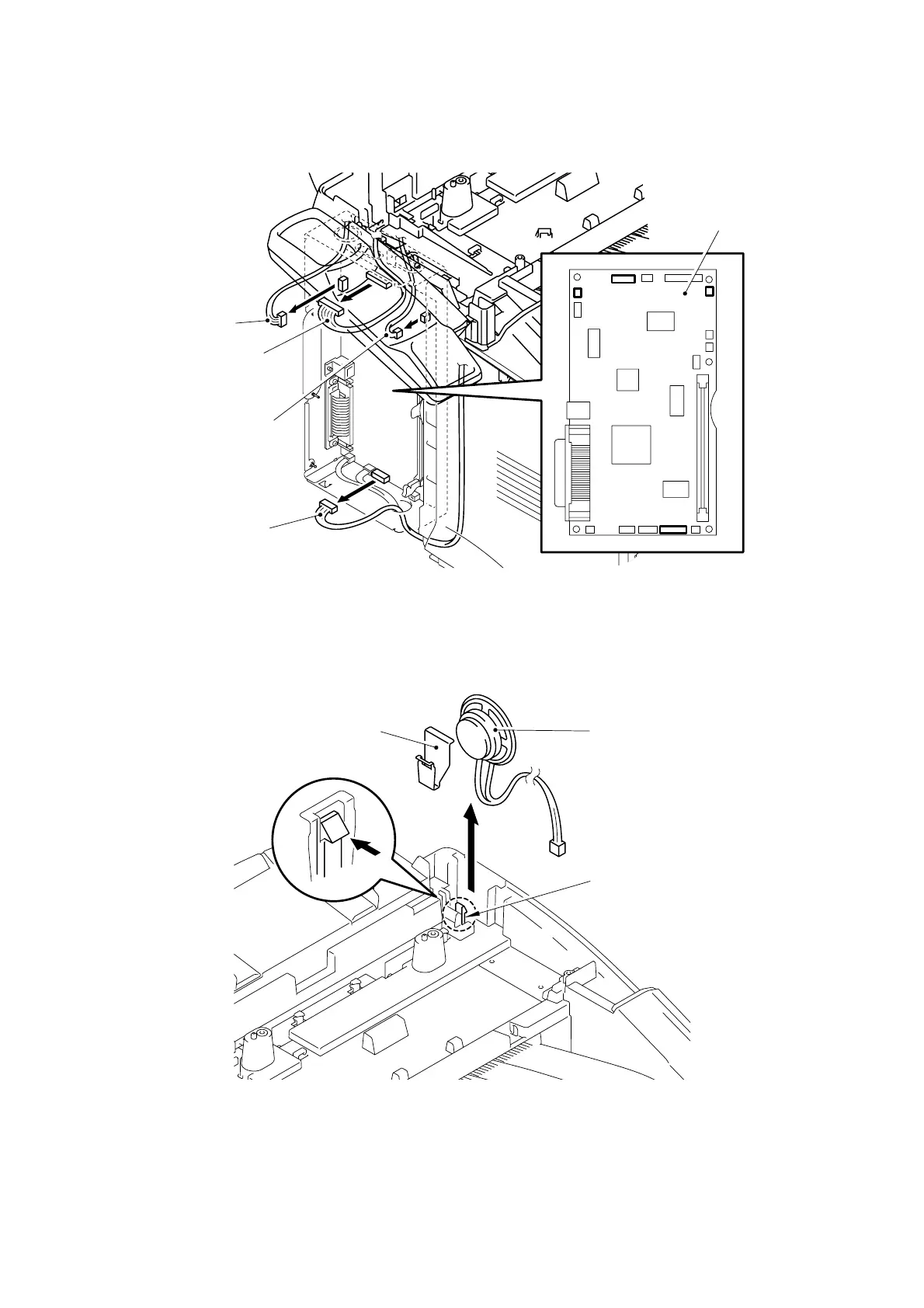

3.11 Top Cover ASSY
(1) Disconnect the four connectors.
Fig. 4-50
(2) Release the hook, and then remove the speaker hold spring and the speaker.
Fig. 4-51
Speaker hold spring
Hook
Speaker
Main PCB ASSY
Connector
(HS holder)
Connector (CIS)
Connector (Speaker)
Connector
(Control panel)
