Brother MFC-8220 - Eeprom; Optional RAM

MFC-8220
SERVICE MANUAL
3-7
1.3.7 Optional RAM
A 32bit (100 pin) DIMM can be fitted as optional RAM. The main PCB has one slot and the
capacity of DIMM can be from 16MB to 128MB.

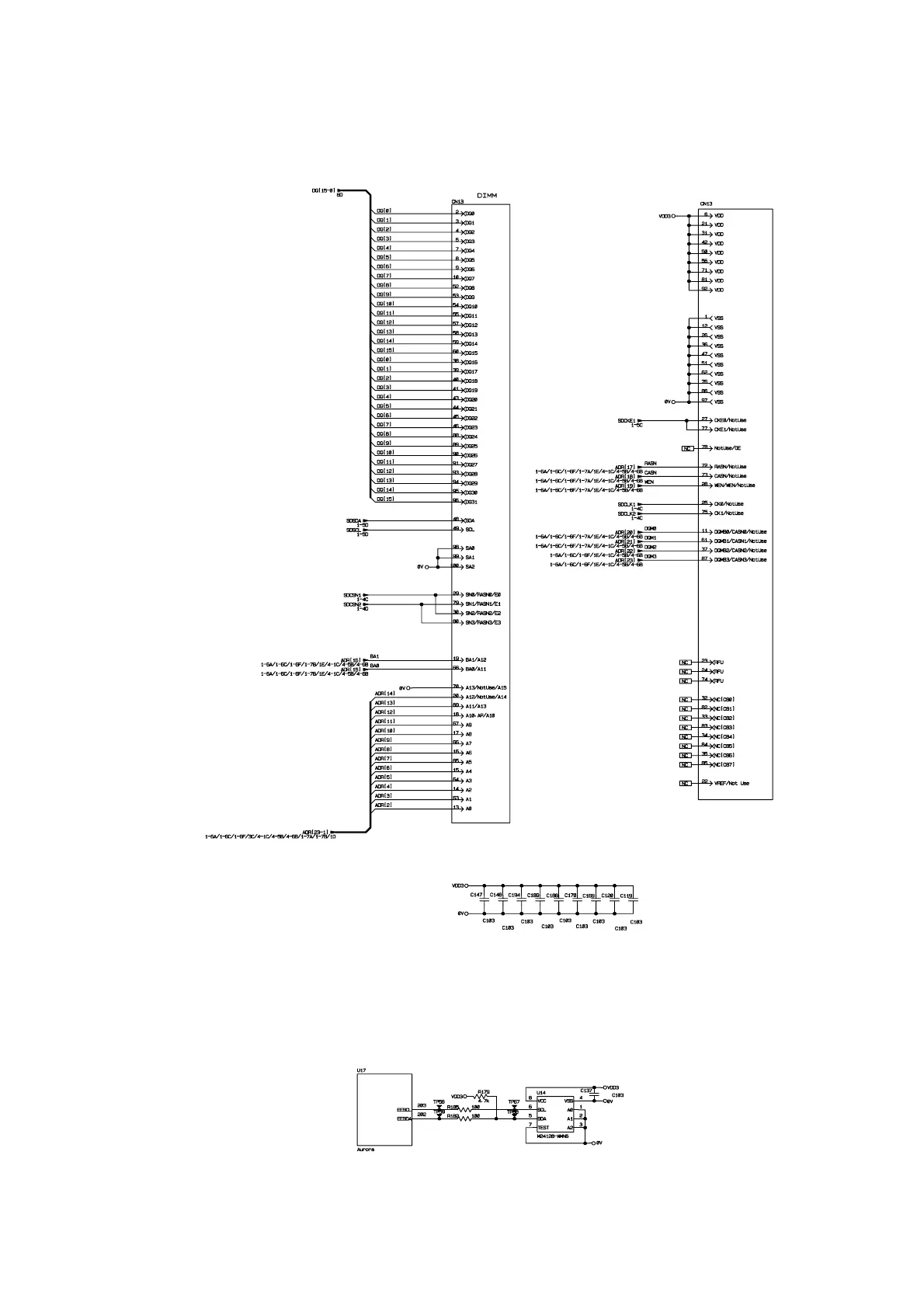

Fig. 3-9
1.3.8 EEPROM
The EEPROM is BR24126 type of two-wire method with a 8192 x 8bit configuration.
Fig. 3-10
