Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL
3-13
2. MECHANICS

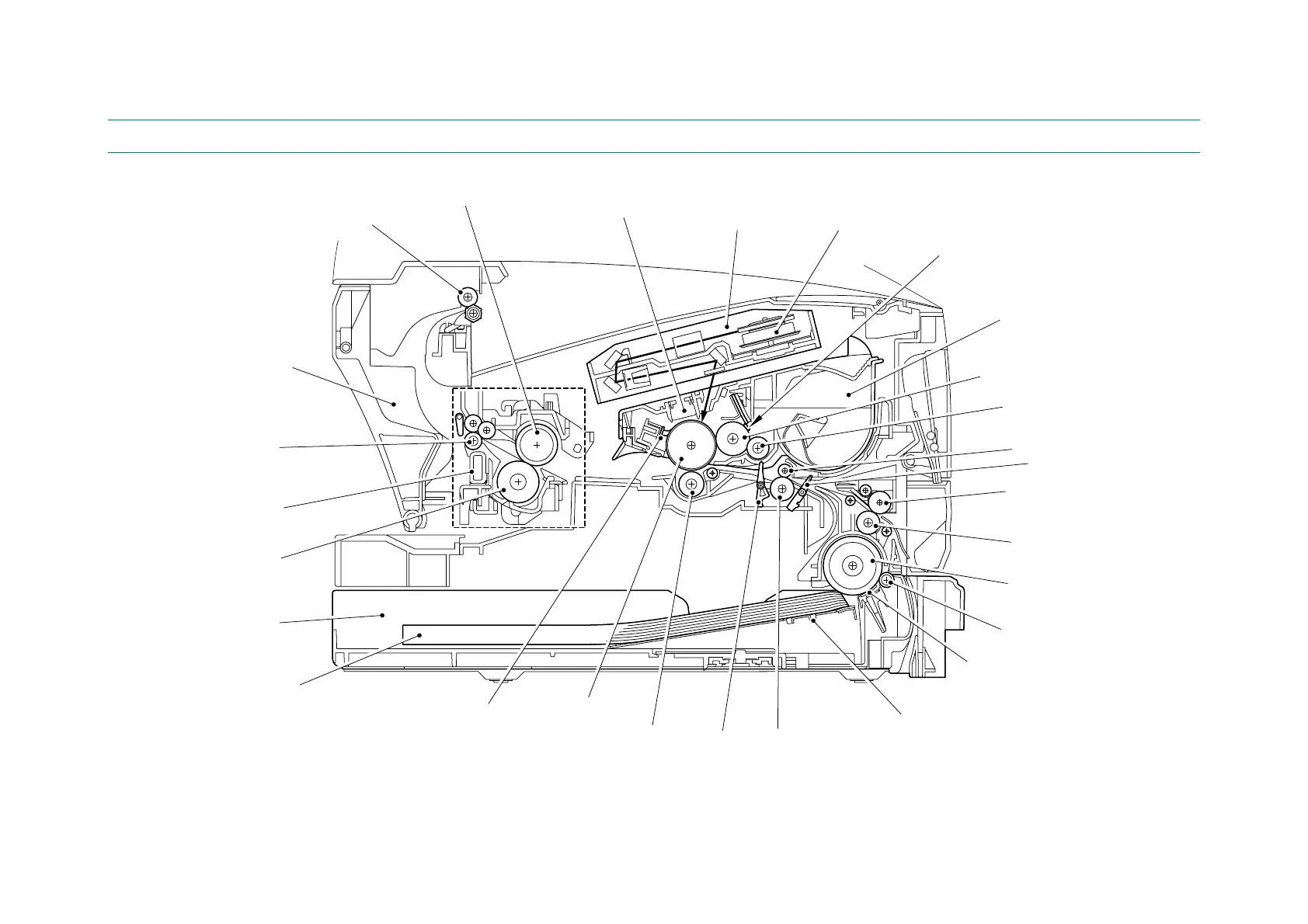

2.1 Overview of Printing Mechanism
Fig. 3-19
Paper
Cleane
r
Photosensitive
drum
Transfer rolle
r
Regist rea
r
actuator
Separation pad
Cassette pressure roller
DRUM UNIT
Scanner motor
SCANNER UNIT
Corona wire
Heat roller
Second eject roller
Pressure plate
Paper Feed roller
Paper feed pinch roller
Rear cover
First feed roller
First feed pinch roller
Regist front actuato
r
Supply roller
Development roller
Blade
PAPER TRAY
First eject roller
FIXING UNIT
Pressure roller
Paper pick-up roller

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
