CHAPTER 3 THEORY OF OPERATION
3-4
The functions of the interface block communication with external devices are described below;
1.3.2 USB
Stores the data received from the PC into DRAM as controlled by the DMA controller. The
transmission speed is 480Mbps or 12Mbps.

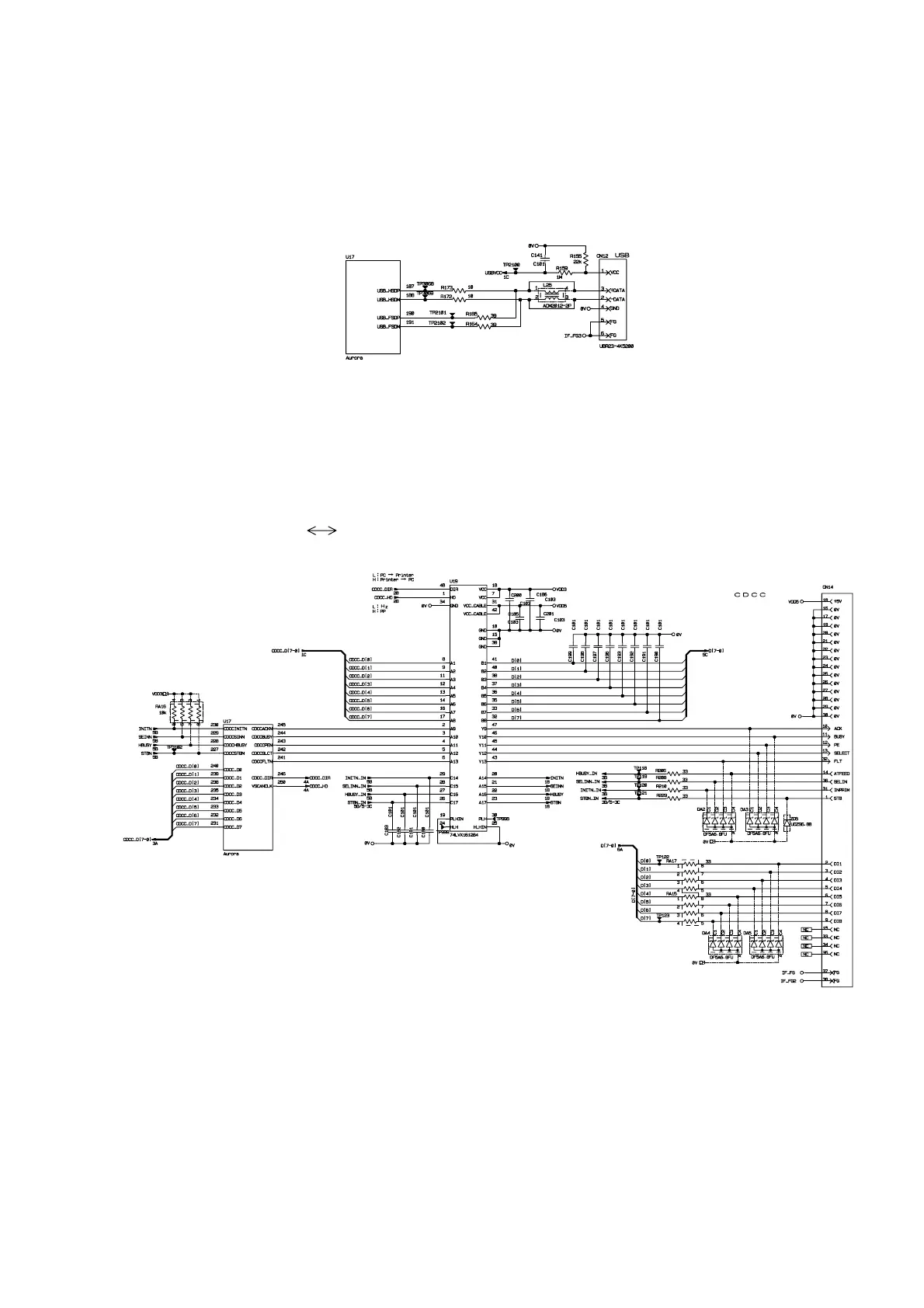

Fig. 3-4
1.3.3 IEEE1284
Stores the data received from the PC into DRAM as controlled by the DMA controller. It is
applicable to both normal receiving and bi-directional communication (nibble mode, byte mode,
ECP mode).
74LVX161284, 3.3V 5.0V level shifter IC stores the pull-up resistance in signal wire at the
connector side
Fig. 3-5

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
