Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL
3-17

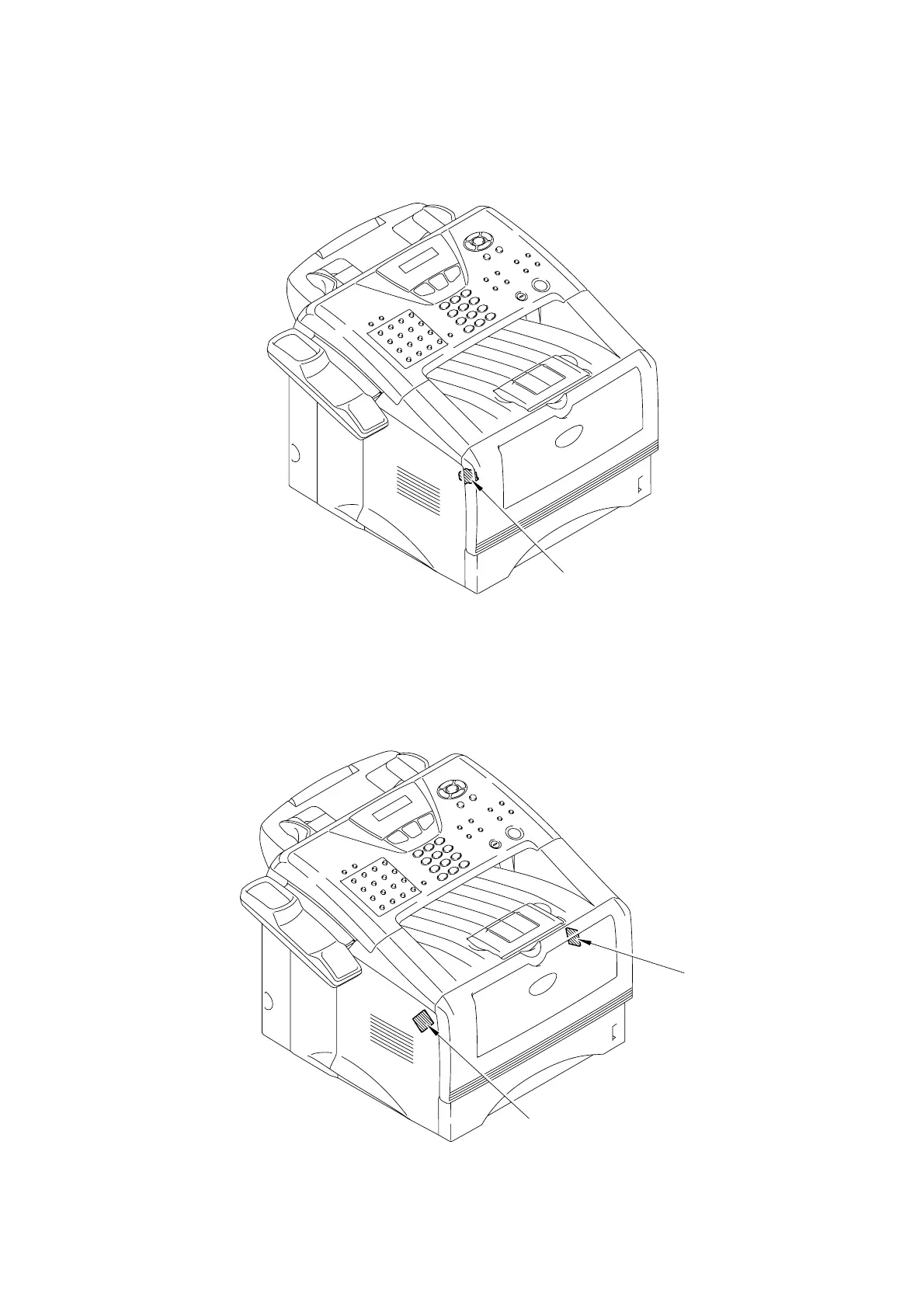

2.4 Sensors
2.4.1 Document cover sensor
Detect opening and closing of the front cover.
Fig. 3-24
2.4.2 Toner sensors
Detects if there is toner in the toner cartridge. The toner sensor at the left side emits light
through the window on the left side of the toner cartridge, then the toner sensor at the right
side receives it when the toner is low. They also detect whether or not the drum unit is
installed. (The toner cartridge is installed in the drum unit.)
Fig. 3-25
Toner sensor (Light emission)
Toner sensor
(Light reception)
Document cover sensor

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
