Brother MFC-8220 - Rear Cover C

MFC-8220
SERVICE MANUAL
4-13

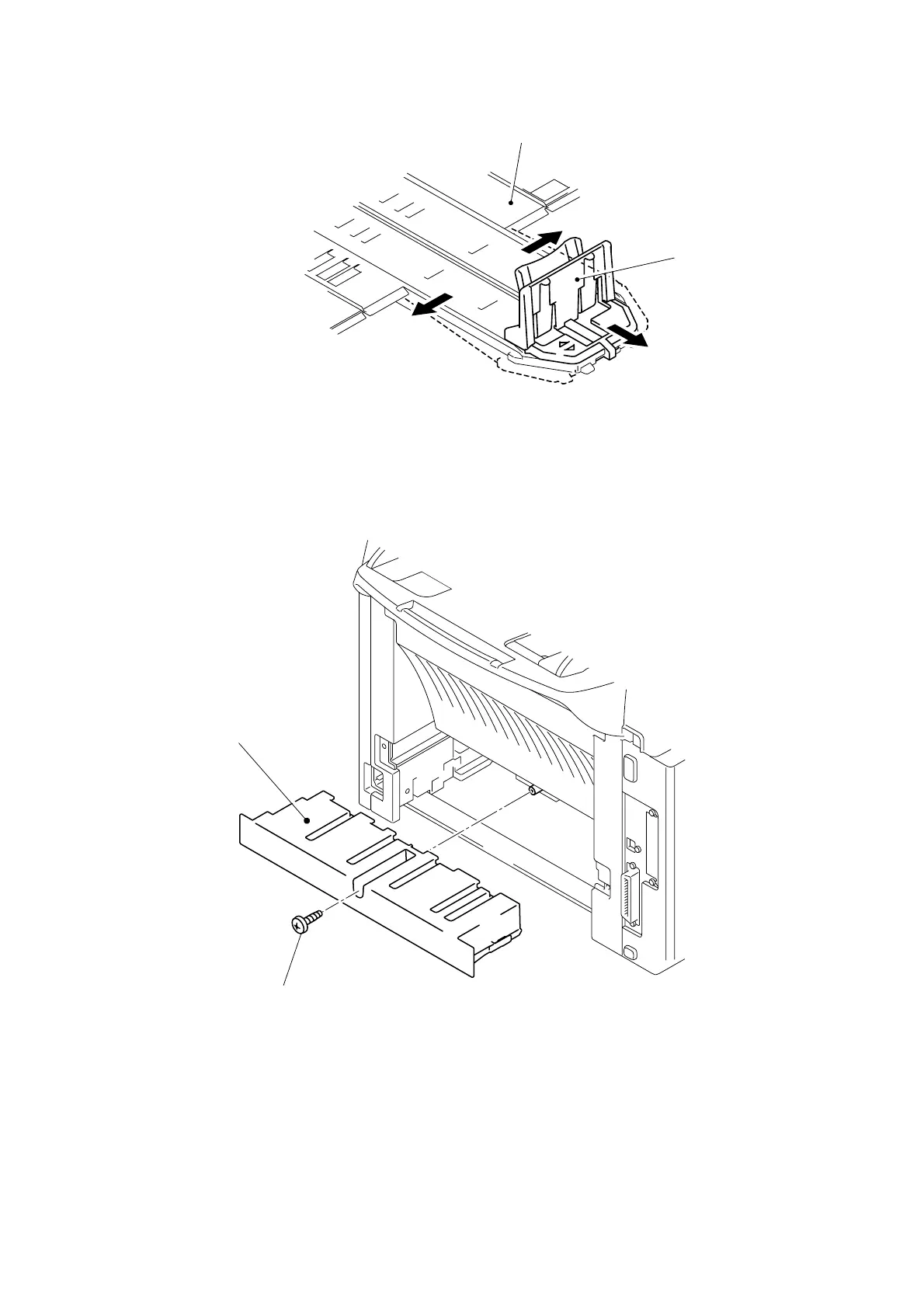

(24) Remove the paper rear guide.
Fig. 4-20
3.4 Rear Cover C
(1) Remove the bind B M4x12 Taptite screw, and then remove the rear cover C.
Fig. 4-21
Paper tray
Paper rear guide
2
1
1
Rear cover C
Taptite, bind B M4x12
