Brother MFC-8220 Service Manual

CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-12
NOTE:
• When re-assembling the side guide racks, they should both be aligned so that the wide
end of the racks are in line with the inside edge of the paper guide release slots in the tray
before refitting the spring and gear.
• When replacing/re-assembling the paper tray, remove the old grease and apply a suitable
amount of grease onto both sides of the paper tray referring to the figure below;

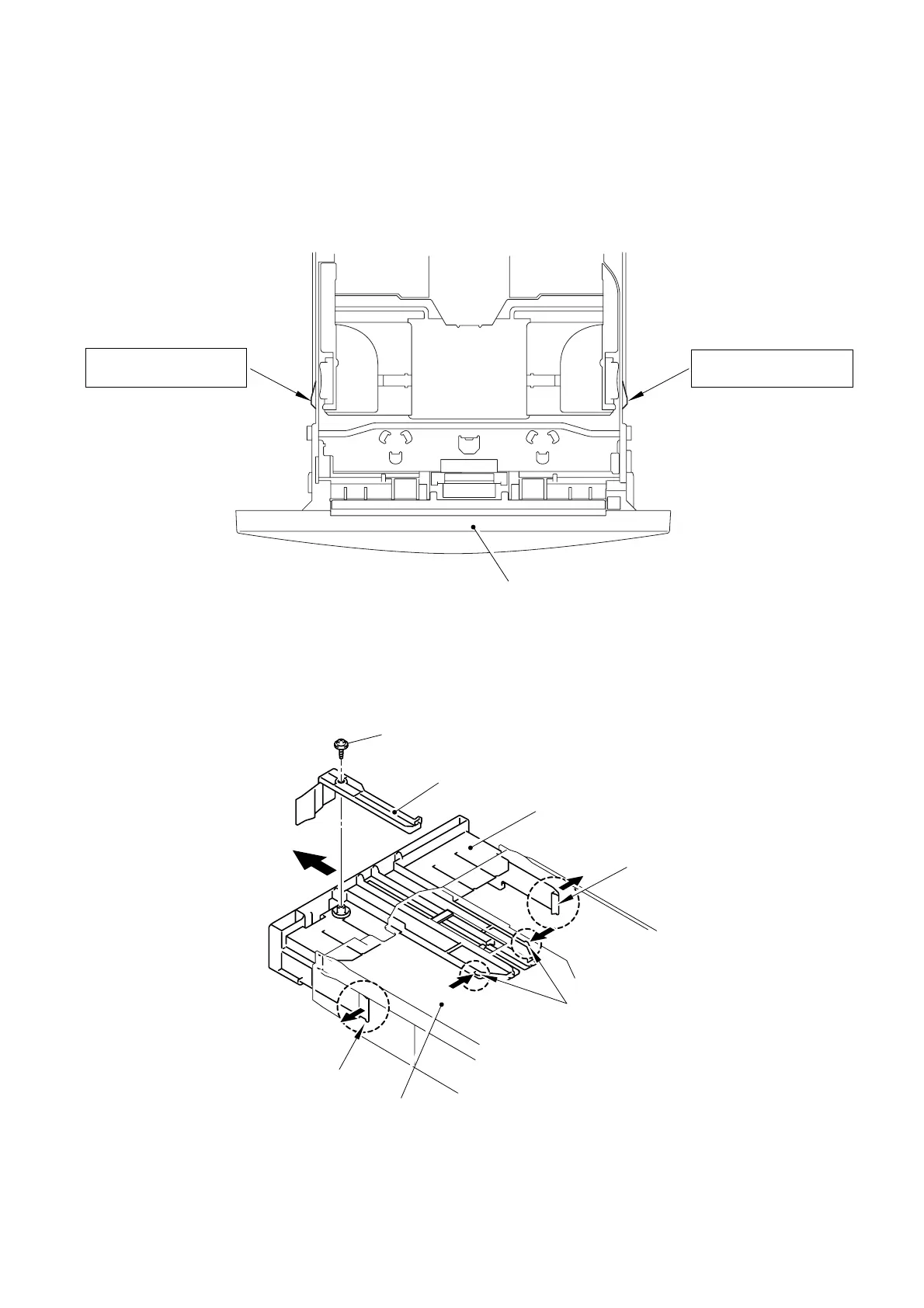

Fig. 4-18
(22) Remove the pan B M3x8 Taptite screw, and then remove the tray lock lever.
(23) Release the four hooks to remove the paper tray rear from the paper tray.
Fig. 4-19
Taptite, pan B M3x8
Tray lock lever
Paper tray
Hook
Paper tray rear
Paper tray
Grease: Molykote PG-662Y
(2 mm dia. ball)
Grease: Molykote PG-662Y
(2 mm dia. ball)
Hooks
Hook
1
1
2
2
3

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
