MFC-8220
SERVICE MANUAL
4-11

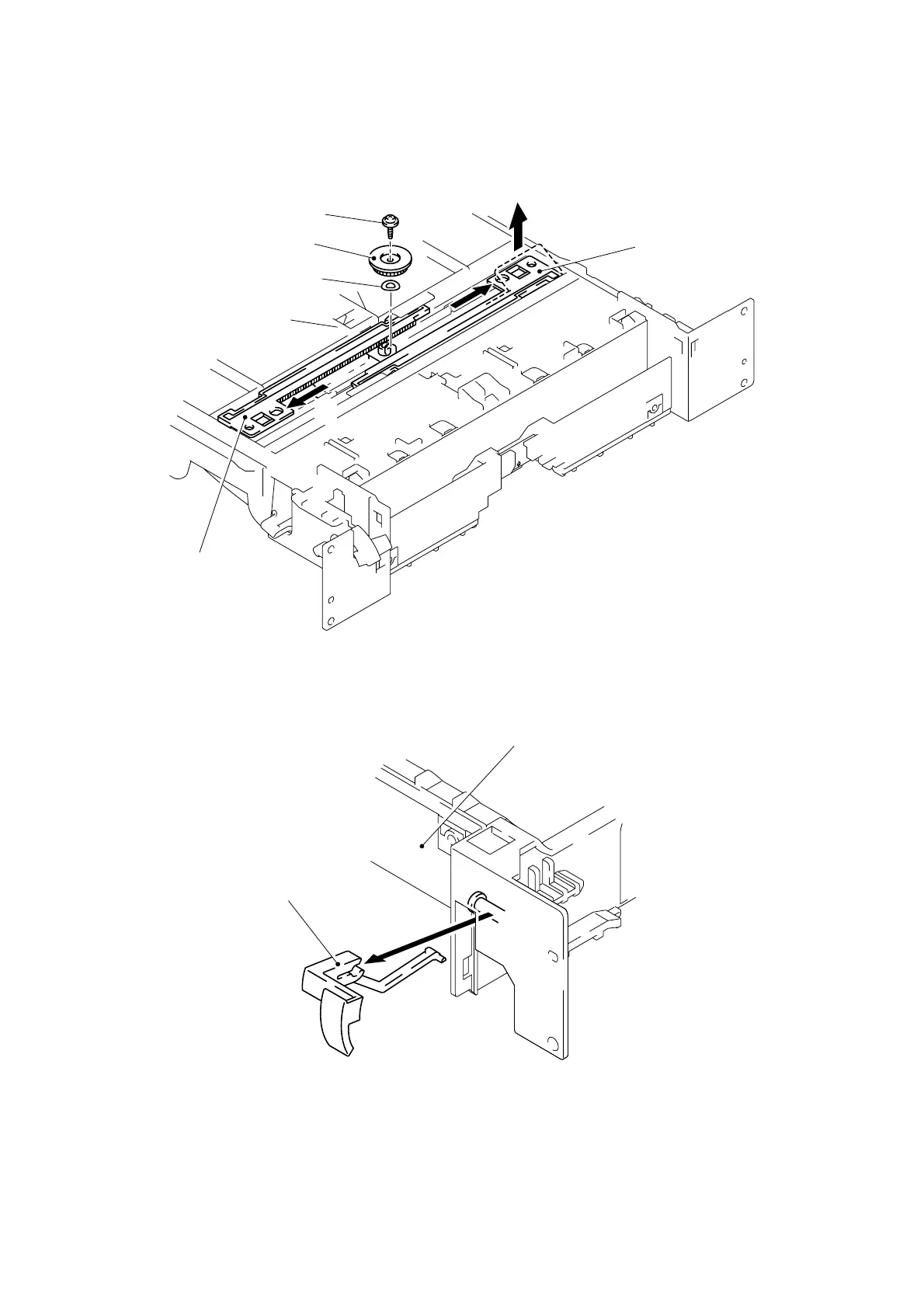

(19) Remove the cup B M3x8 Taptite screw, and then remove the side guide gear and the
friction spring.
(20) Remove the two side guide racks.
Fig. 4-16
(21) Remove the paper indicator.
Fig. 4-17
Side guide rack
Side guide rack
Paper tray
Paper indicator
Taptite, cup B M3x8
Side guide gear
Friction spring
2
1
1
