Brother MFC-8220 - Frame L; Drive Unit

MFC-8220
SERVICE MANUAL
4-59
3.22 Frame L / Drive Unit
(1) Remove the main PCB sheet from the main frame L unit.
(2) Remove the four bind B M4x12 Taptite screws.
(3) Remove the two bind B M3x10 Taptite screws, and then remove the main frame L unit.

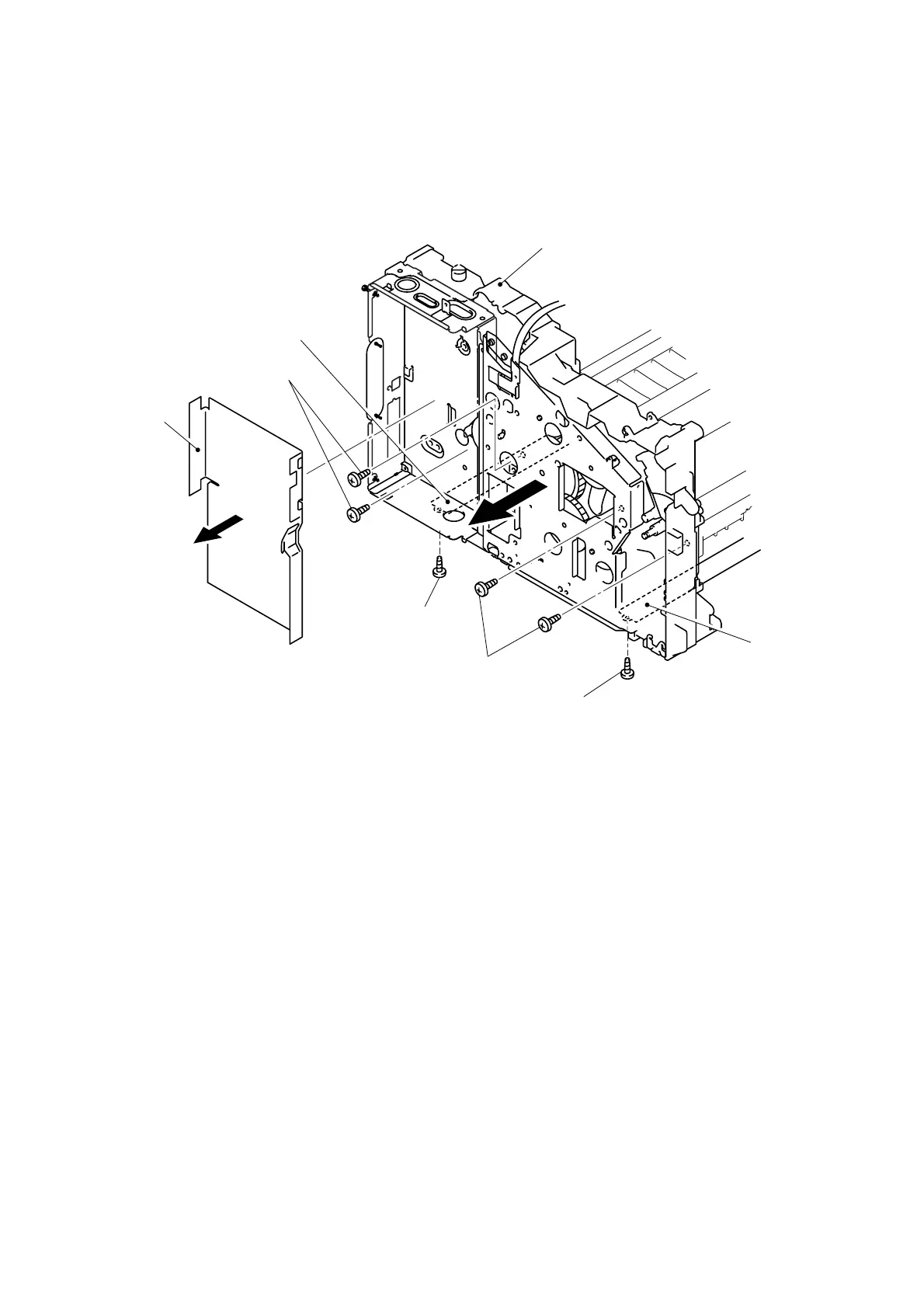

Fig. 4-108
Taptite, bind B M3x10
Taptite, bind B M3x10
Under bar
Under bar
Main PCB
sheet
Main frame L unit
Taptite, bind B M4x12
Taptite, bind B M4x12
