Brother MFC-8220 Service Manual

CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-58

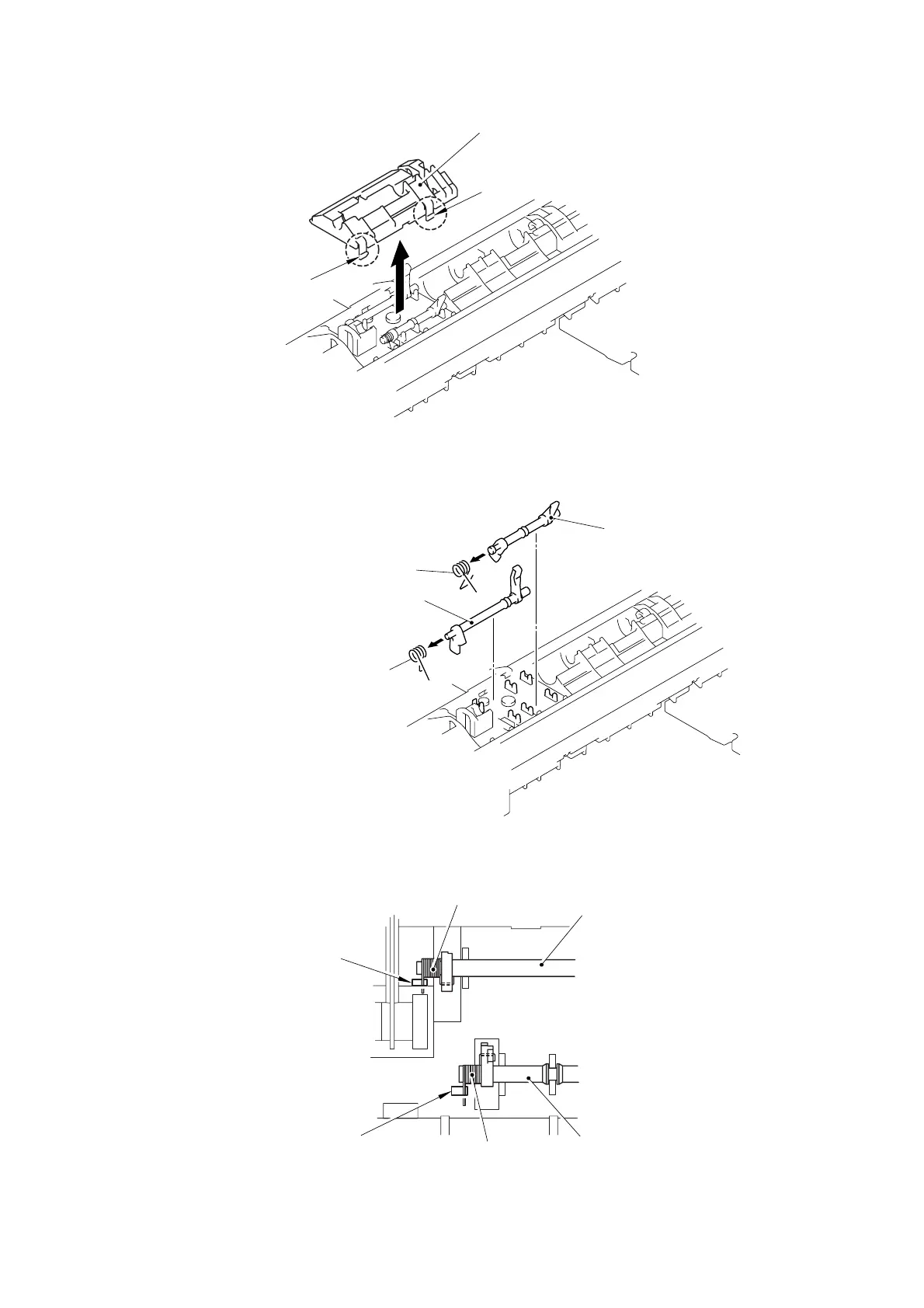

(29) Remove the chute cover.
Fig. 4-105
(30) Remove the regist front actuator and regist front actuator spring.
(31) Remove the regist rear actuator and regist rear actuator spring.
Fig. 4-106
NOTE:
When assembling the regist front actuator and the regist rear actuator, set the spring as
shown in the figure.
Fig. 4-107
Regist front actuator
Regist front actuator spring
Regist rear actuator
Regist rear actuator spring
Chute cover
Hook
Hook
Regist front actuator spring
Regist rear actuator
Regist rear actuator spring
Regist front actuator
Hole
Hole

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
