Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL
4-57

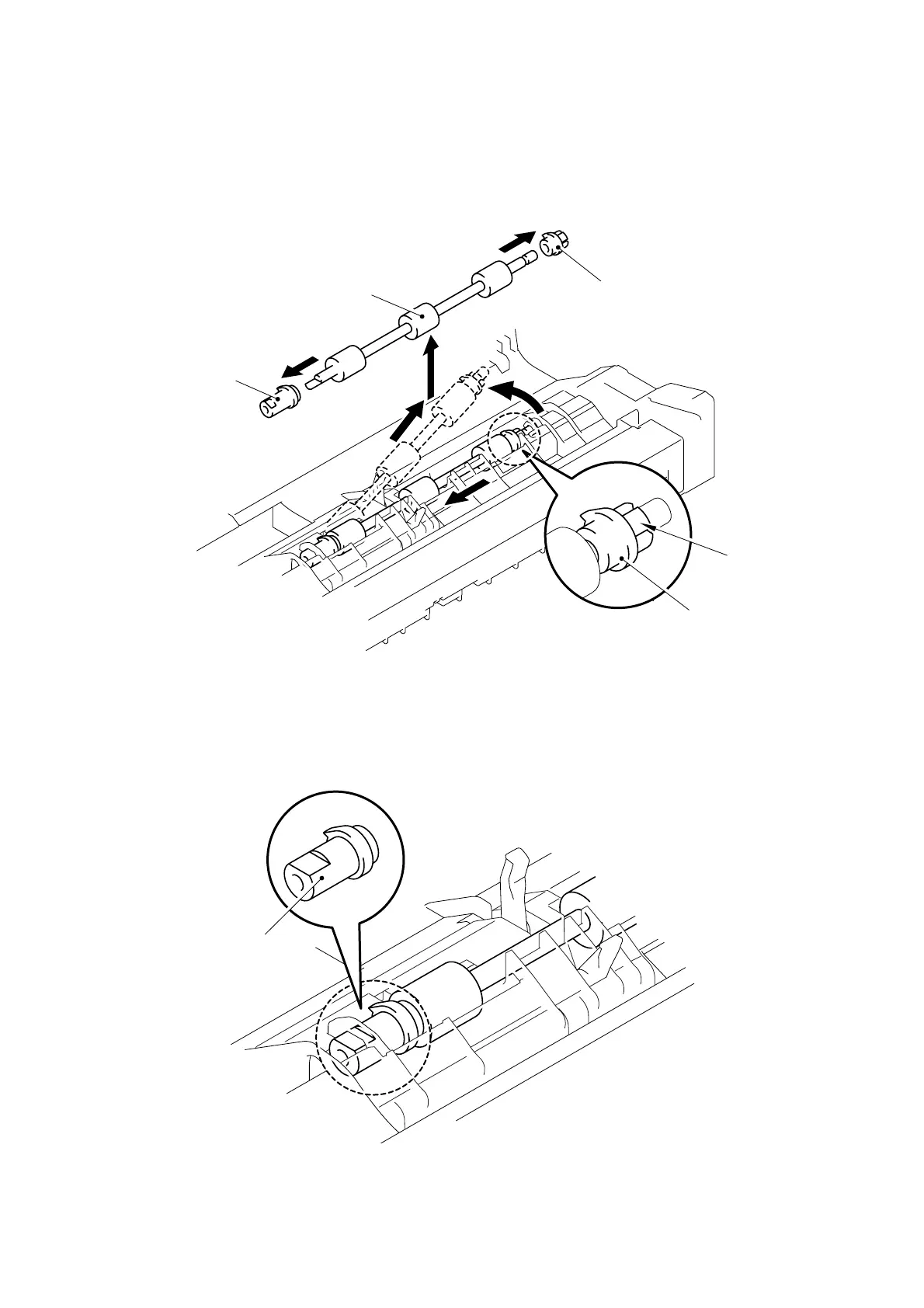

(26) Release the hook of the bearing 5, and then slide the feed roller ASSY in the direction of
the arrow.
(27) Remove the feed roller ASSY.
(28) Remove the joint 5 and the bearing 5 from the feed roller ASSY.
Fig. 4-103
NOTE:
Be careful that the different direction installation causes jam when you install joint 5.
(See the figure below.) If the joint 5 is mounted in a wrong orientation, it might cause a paper
jam.
Fig. 4-104
Bearing 5
Joint 5
Feed roller ASSY
Hook
1
2
3
4
5
Bearing 5
Joint 5

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
