Brother MFC-8220 - Paper Feeder

CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-52
3.21 Paper Feeder

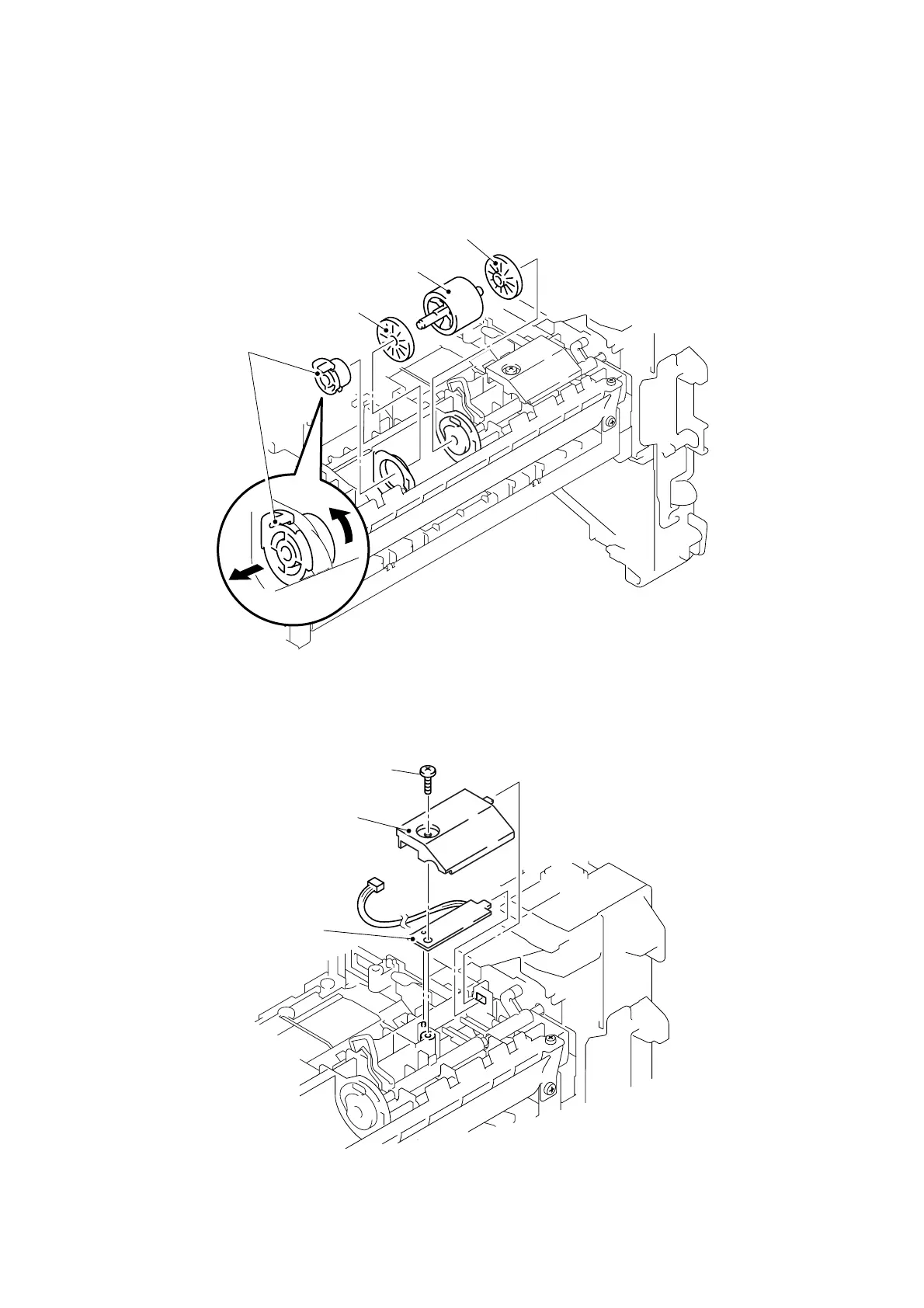

(1) Remove the bush R.
(2) Remove the paper pick-up roller ASSY.
(3) Remove the two roller collars from the paper pick-up roller ASSY.
Fig. 4-93
(4) Remove the bind B M3x10 Taptite screw, and then remove the PE sensor cover.
(5) Remove the cassette sensor PCB ASSY.
Fig. 4-94
Roller collar
Roller collar
Paper pick-up roller ASSY
Bush R
Taptite, bind B M3x10
PE sensor cover
Cassette sensor PCB ASSY
1
2
