Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL
4-53

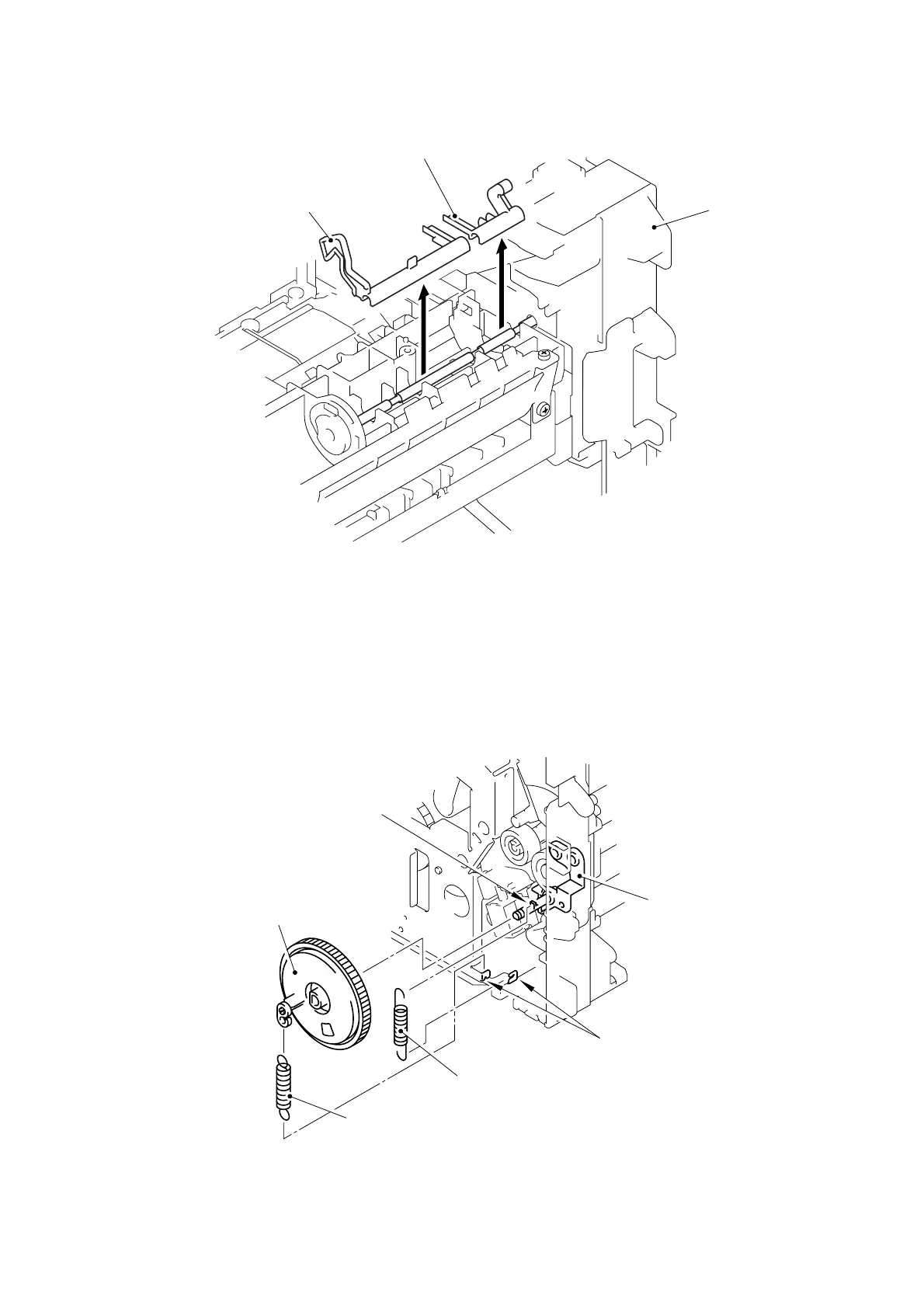

(6) Remove the PE actuator and the CA actuator.
Fig. 4-95
(7) Remove the spring, extension P/R from the gear 63P/R.
(8) Remove the gear 63P/R.
(9) Remove the ground wire from the conductor bearing.
Hint:

Make sure to mount the extension spring P/R and the ground wire in proper positions
upon assembly. If they are mounted in improper positions, tension fails to be applied to
the sector gear 63 P/R, and it might cause a feeding failure.

Fig. 4-96
Gear 63P/R
Spring, extension P/R
Ground wire
PE actuator
CA actuator
Frame
Hooks
Conductor bearing
Hook

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
