CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-54

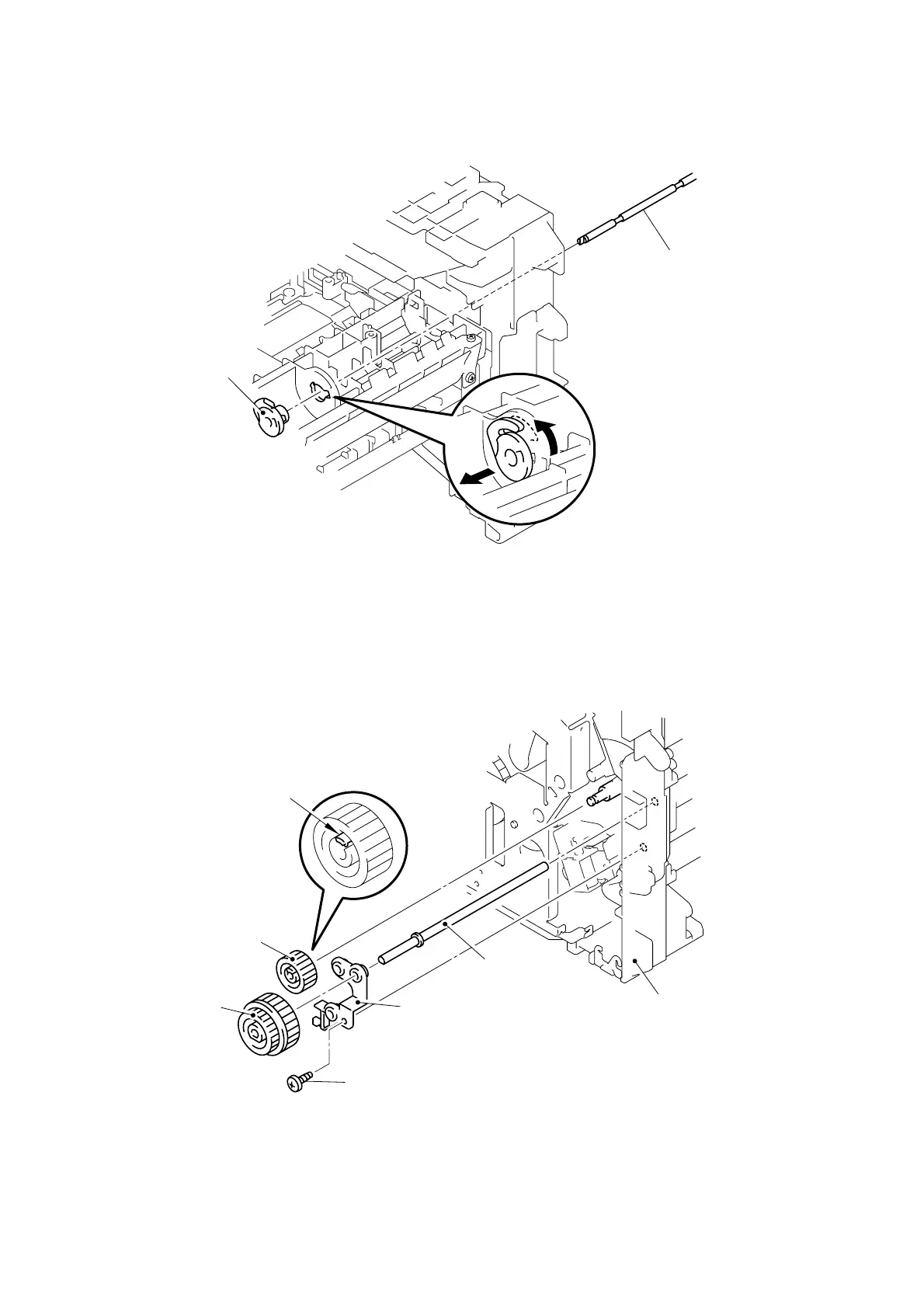

(10) Remove the bush L from the P/R shaft.
(11) Remove the P/R shaft.
Fig. 4-97
(12) Remove the idle gear 22.
(13) Remove the middle roller gear.
(14) Remove the bind B M3x10 taptite screw and the conductor bearing.
(15) Remove the 1st F/R shaft.
Fig. 4-98
Bush L
P/R shaft
1st F/R shaft
Conductor bearing
Taptite bind B M3x10
Idle gear 22
Frame
Hook
1
2
Middle roller gear
