Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL
4-1
CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
1. SAFETY PRECAUTIONS
To avoid creating secondary problems by mishandling, follow the warnings and precautions below
during maintenance work.

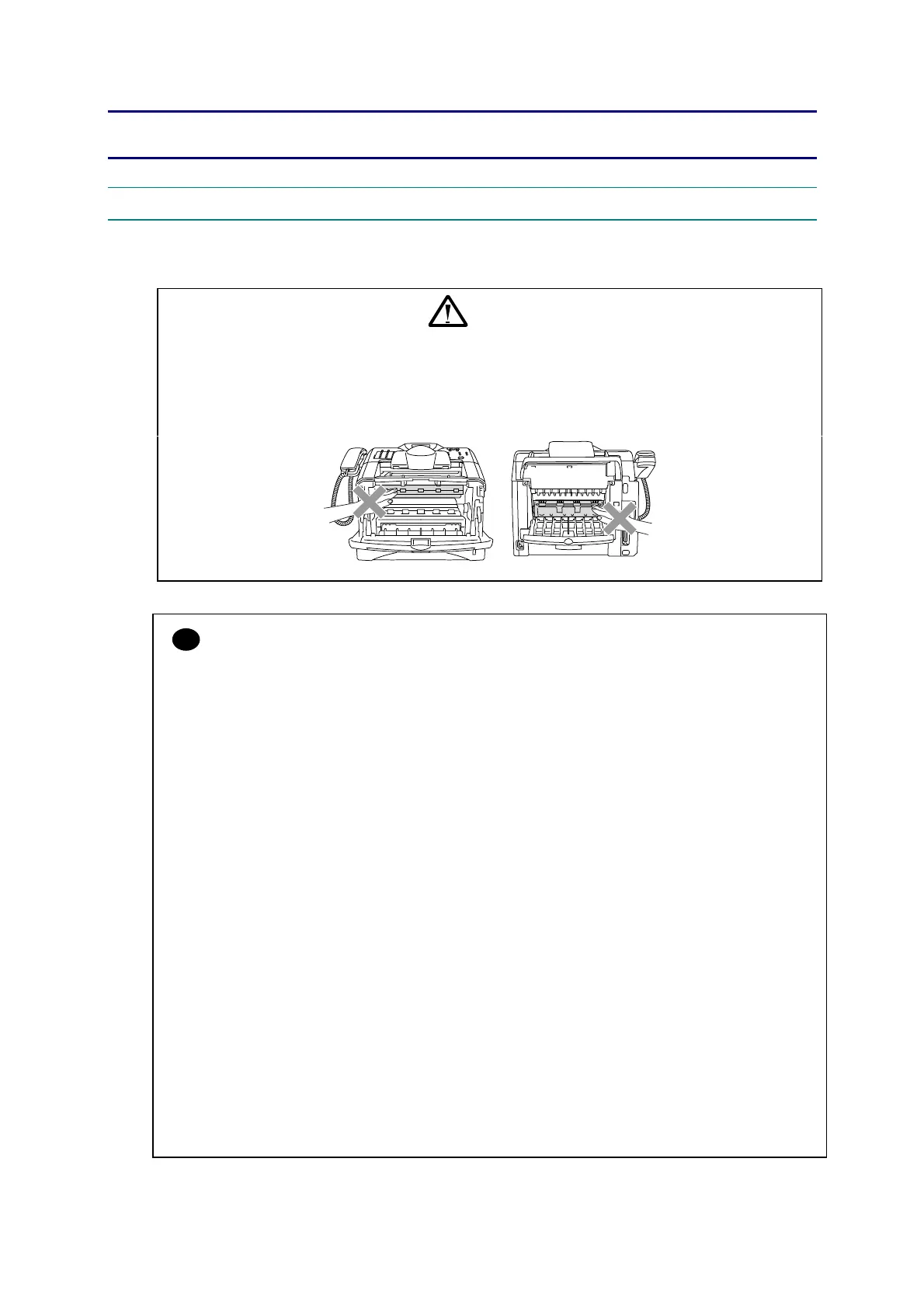

WARNING
(1) Always turn off the power switch and unplug the power cord from the power outlet
before accessing any parts inside the printer.
(2) Some parts inside the printer are extremely hot immediately after the printer is
used. When opening the front cover or rear cover to access any parts inside the
printer, never touch the red colored parts shown in the following figures.
!
CAUTION:
(1) Be careful not to lose screws, washers, or other parts removed.
(2) Be sure to apply grease to the gears and applicable positions specified in this chapter.
(3) When using soldering irons or other heat-generating tools, take care not to accidentally damage
parts such as wires, PCBs and covers.
(4) Static electricity charged in your body may damage electronic parts. When transporting PCBs, be
sure to wrap them in conductive sheets.
(5) When replacing the PCB and all the other related parts, put on a grounding wrist band and perform
the job on a static mat. Also take care not to touch the conductor sections on the flat cables or on
the wire harness.
(6) Be sure to replace self-tapping screws correctly, if removed. Unless otherwise specified, tighten
screws to the following torque values.
TAPTITE, BIND or CUP B
M3: 0.7N y m
M4: 0.8N y m
TAPTITE, CUP S
M3: 0.8N y m
SCREW
M3: 0.7N y m
M4: 0.8N y m
(7) After disconnecting flat cables, check that each cable is not damaged at its end or short-circuited.
(8) When connecting flat cables, do not insert them at an angle. After insertion, check that the cables
are not at an angle.
(9) When connecting or disconnecting cable connectors, hold the connector body, not the cables. If
the connector has a lock, release the connector lock first to release it.
(10) After a repair, check not only the repaired portion but also all connectors. Also check that other
related portions are functioning properly before operational checks.

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
