Brother MFC-8220 - Fixing Unit

CHAPTER 5 PERIODIC MAINTENANCE
5-10
2.1 Fixing Unit
<Disassembly Procedure>
1) Disconnect the power cord from the machine.

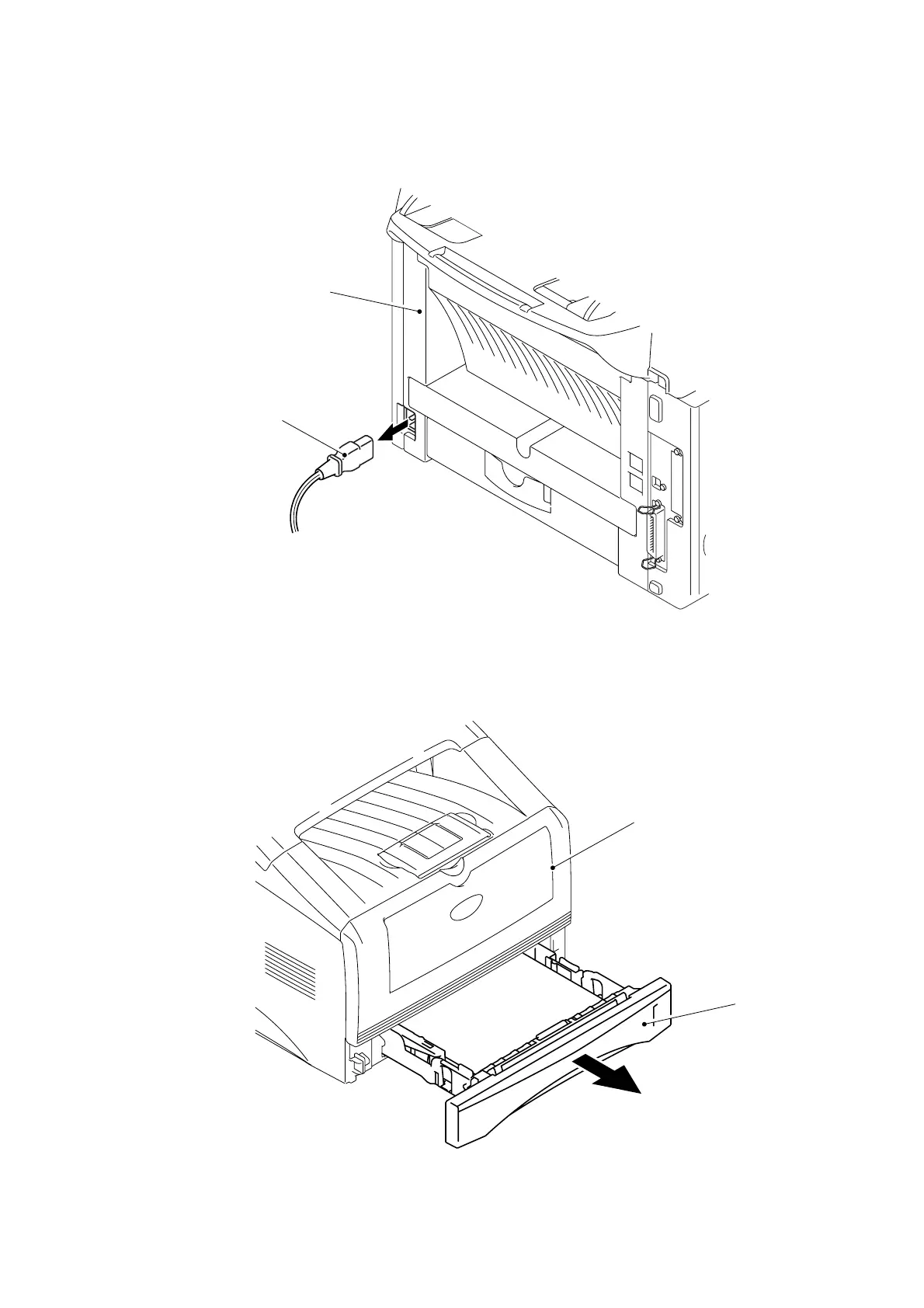

Fig.5-13
2) Close the front cover ASSY and pull out the paper tray.
Fig.5-14
Front cover ASSY
Power cord
Paper Tray
Machine
