Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL
A-63

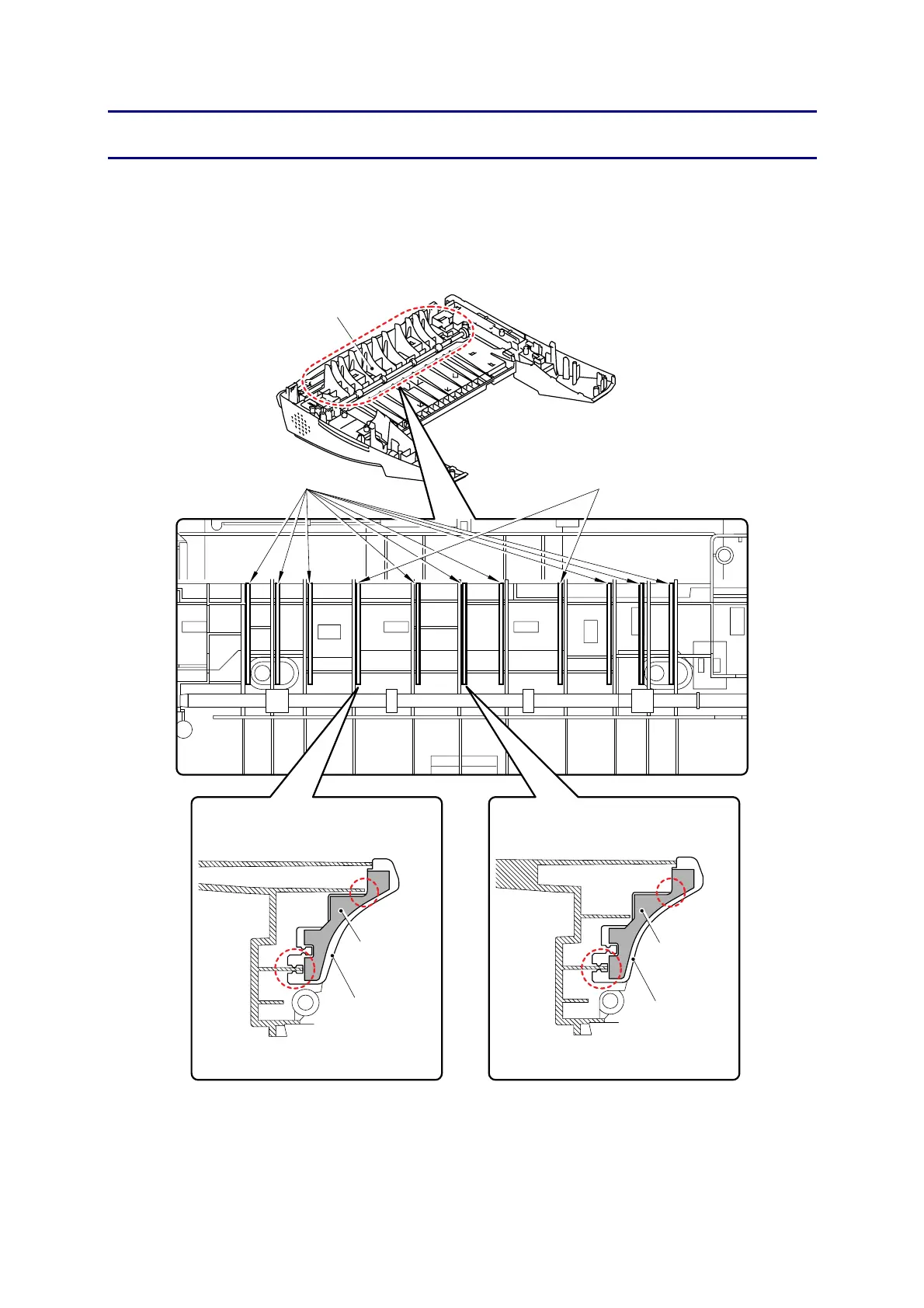

APPENDIX 5 LOCATION TO ATTACH THE ADDITIONAL RIBS
The additional ribs are recommended to attach in order to prevent a damage towards ribs of
the Top cover ASSY caused by printing with the particular kind of paper. With the additional
ribs, it prevents paper jams when the particular kind of paper ejects as well. There are 2 types
of ribs; Top cover rib MFC and Top cover rib MFC2. It is necessary to be careful about the two
sides of location to attach the additional ribs properly as the figure below.
NOTE:
Pay attention to the location circled by red color dotted line to attach the additional ribs against
the ribs of the Top cover ASSY.
Top cover ASSY
Top cover rib MFC
Top cover rib MFC2
Top cover rib MFC
A
dhesive tape
A
dhesive tape
Top cover rib MFC2

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
