Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL
4-55

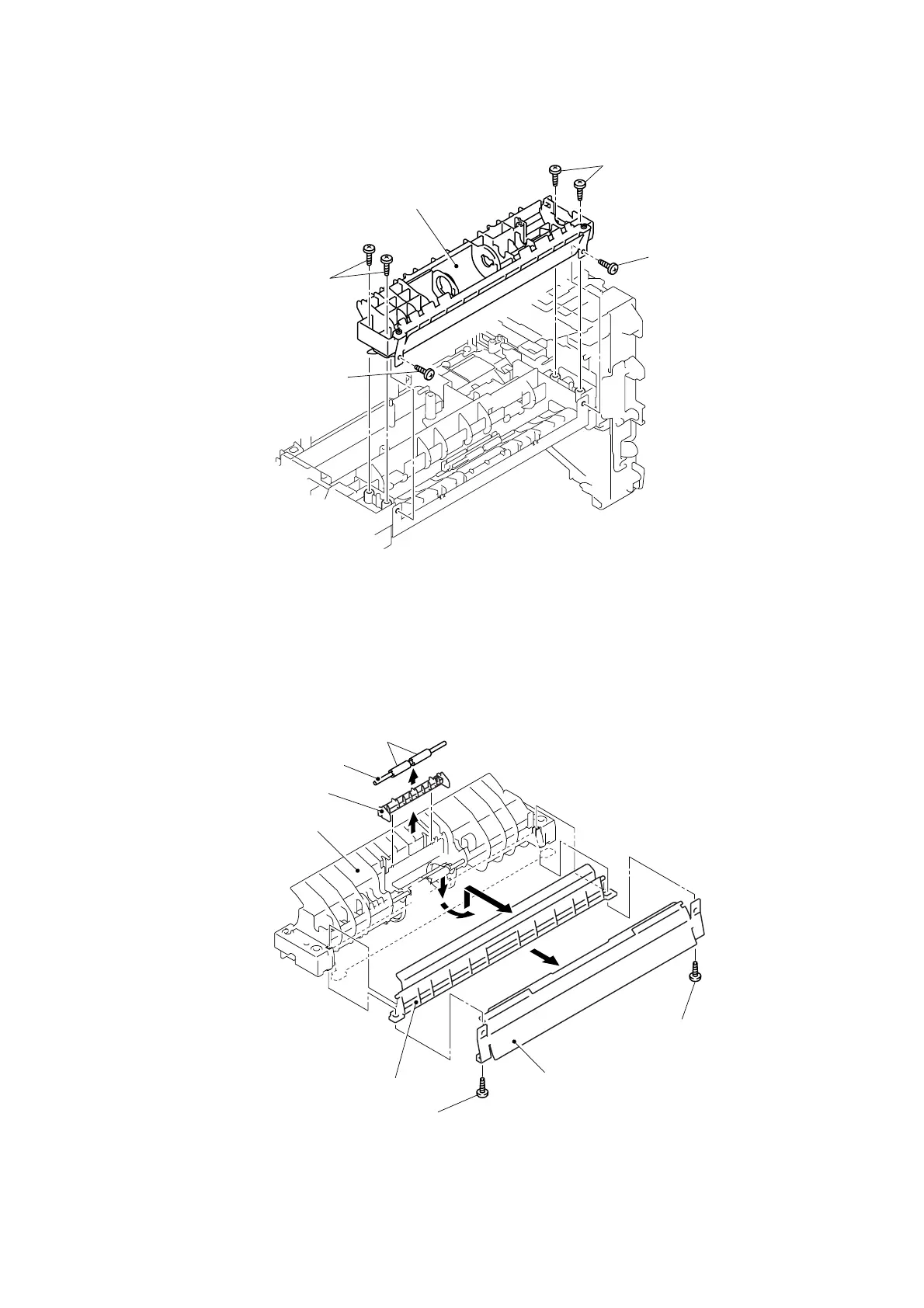

(16) Remove the two cup S M3x6 Taptite screws and the four bind B M4x12 Taptite screws.
(17) Remove the front chute ASSY.
Fig. 4-99
(18) Remove the two shoulder taptite bind B M3x7.5 Taptite screws from front chute guide
ASSY.
(19) Remove the front chute guide ASSY.
(20) Remove the front tray chute ASSY.
(21) Remove the roller 6, pressure roller shaft and roller 6 guide.
Fig. 4-100
Front chute ASSY
Taptite, bind B M4x12
Taptite, bind B M4x12
Taptite, cup S M3x6
Taptite, cup S M3x6
Roller 6 guide
Front tray chute ASSY
Front chute guide ASSY
Taptite, shoulder bind B
M3x7.5
Taptite, shoulder bind B
M3x7.5
Front chute ASSY
1
4
3
2
Pressure roller shaft
Roller 6

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
