CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
4-56

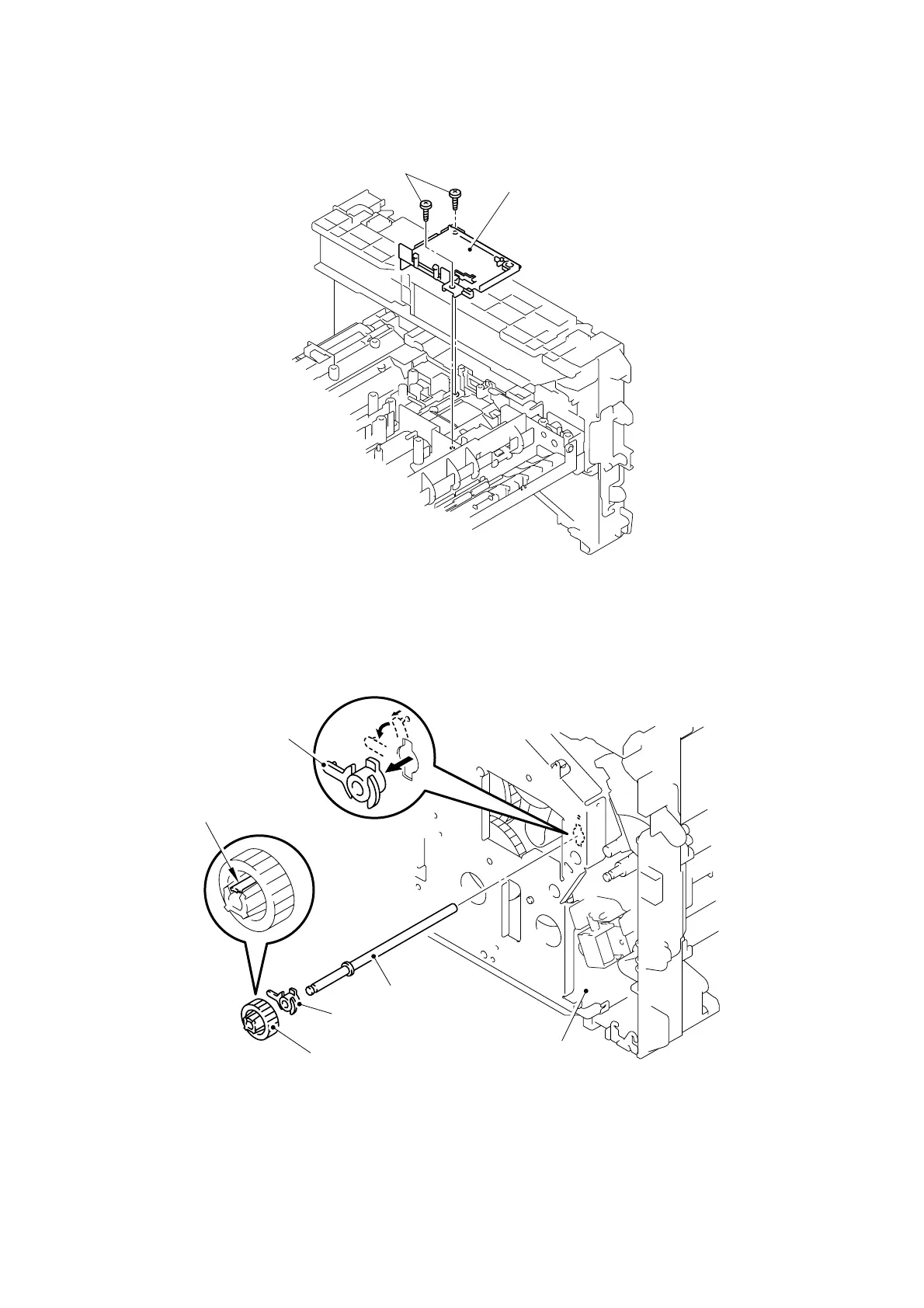

(22) Remove the two bind B M4x12 Taptite screws, and then remove the chute 3.
Fig. 4-101
(23) Remove the feed roller gear.
(24) Remove the bearing F/R.
(25) Remove the feed roller gear shaft.
Fig. 4-102
Feed roller gear shaft
Feed roller gear
Bearing F/R
Bearing F/R
Hook
Frame
Taptite, bind B M4x12
Chute 3
