Brother MFC-8220 Service Manual

MFC-8220
SERVICE MANUAL
4-51
(3) Remove the two bind B M4x12 Taptite screws, and then remove the inlet holder.
(4) Remove the bind B M4x12 Taptite screw, and then remove the SW holder.
(5) Remove the fan motor 60 unit.
(6) Remove the low-voltage PS PCB.

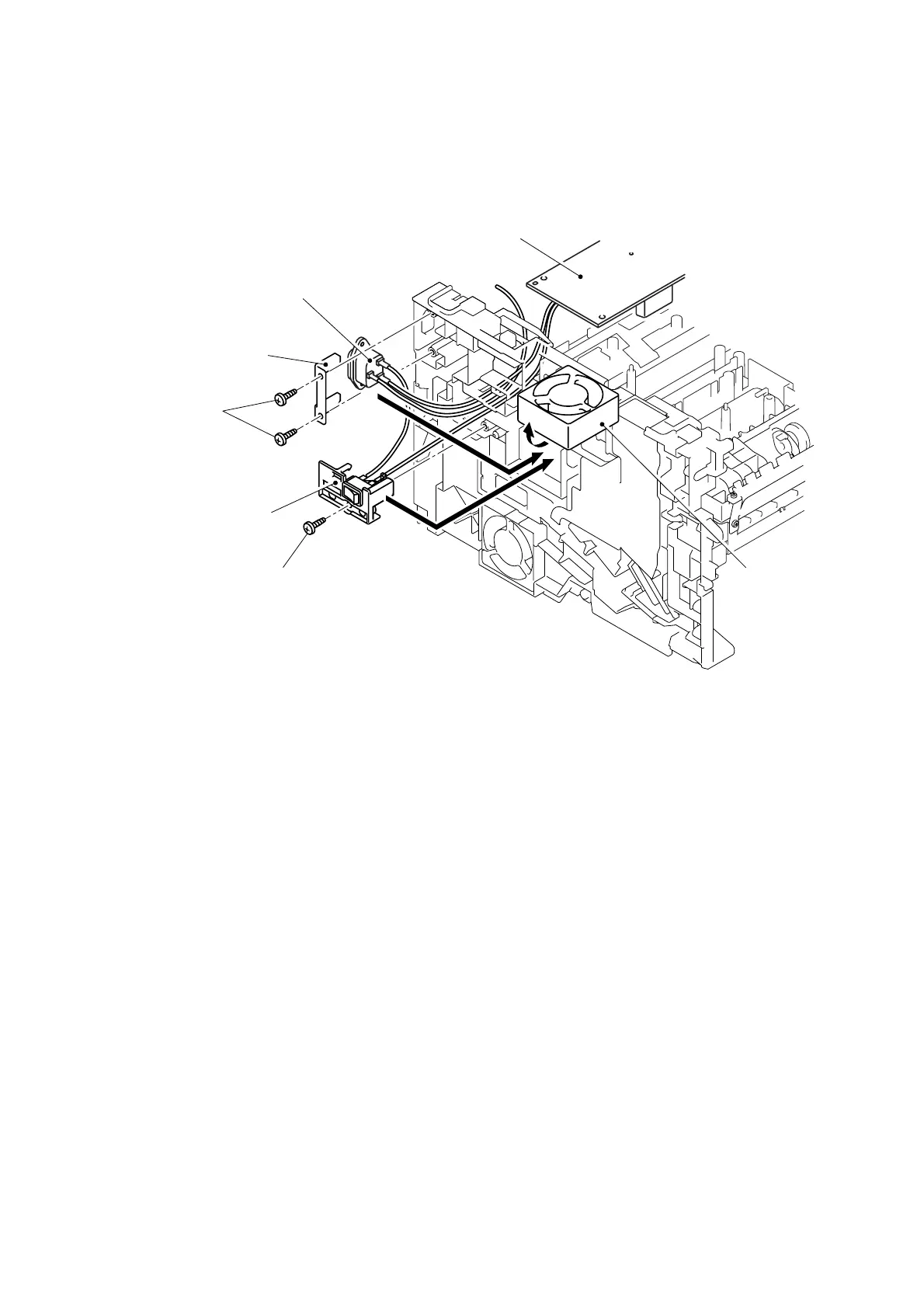

Fig. 4-92
Hint: Inlet Harness Installation Procedure

(1)
Mount the inlet. 
(2)
Mount the fan motor 60 unit. 
(3)
Pull the inlet harness behind the fan motor 60 unit to the side of the SW holder to take up
the slack. (Important!)

(4)
Mount the SW holder. 
Taptite, bind B
M4x12
Inlet holder
Inlet
SW holder
Taptite, bind B M4x12
Low-voltage PS PCB
Fan motor 60 unit

Brother MFC-8220 Specifications

General

Type	all in one
Tray Capacity	250
Automatic Document Feeder Capacity	30 sheets
Paper Size	letter, legal, a4, b5, a5, b6, a6, exe
Paper Handling	up to 250 sheets
Mono Print Speed	21 pages per minute
Print Resolution Mono	up to 2400 x 600
Maximum Number of Pages Per Month	up to 20, 000
Scanner Type	sheetfed
Scan Resolution	up to 300 x 600
Copier Resolution Mono	up to 600
Fax Function	yes
Cartridges	n/a
Number Of Cartridges	2
Internal Memory	yes
Network	not applicable
Connectivity	parallel, usb 2.0
OS Compatibility	pc: windows 95, 98, 98se, me, nt workstation 4.0, 2000 professional or xp, mac: os 8.6 to 9.2, os x 10.1, 10.2.1 to 10.3 or later, available usb 2.0 or parallel port
Mobile Devices Connection	no

Weight and Dimensions

Height	13.2 inches
Width	17 inches
Net Weight	25.6 pounds
